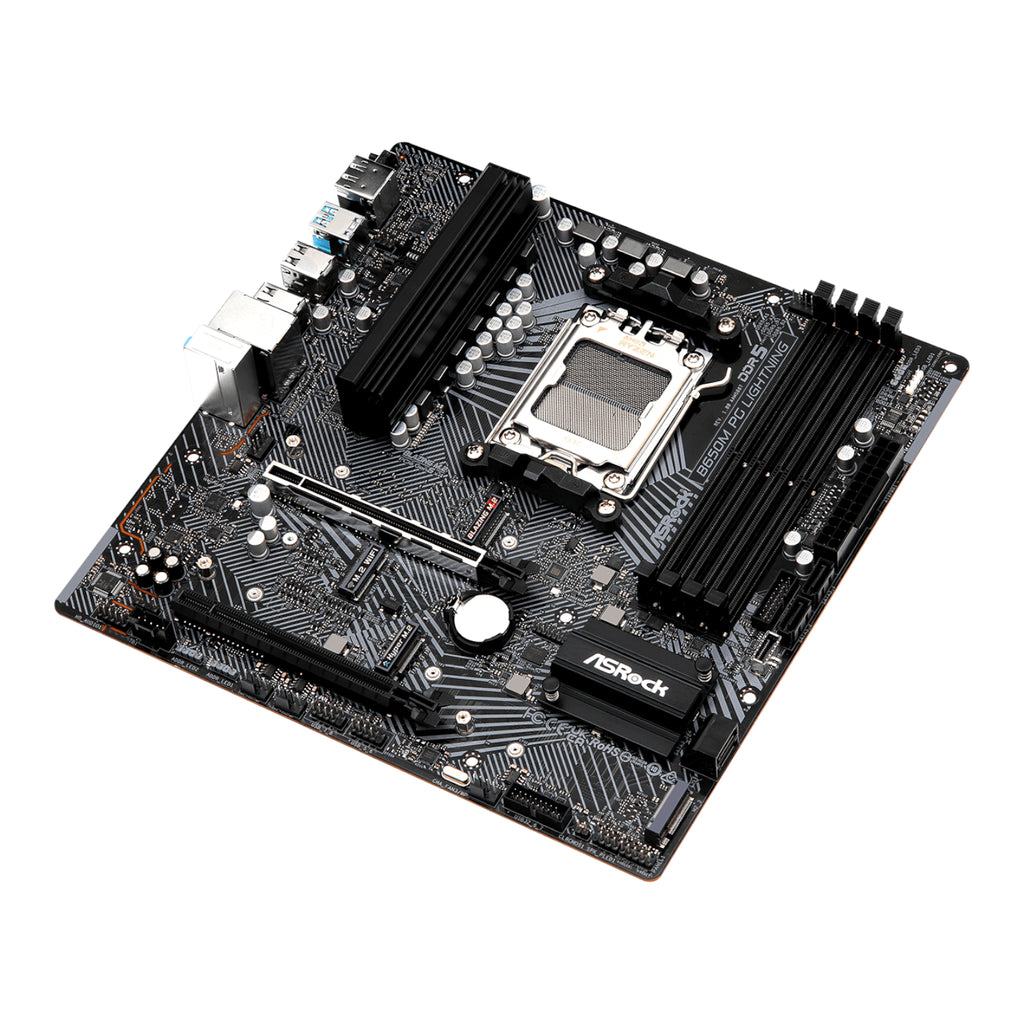

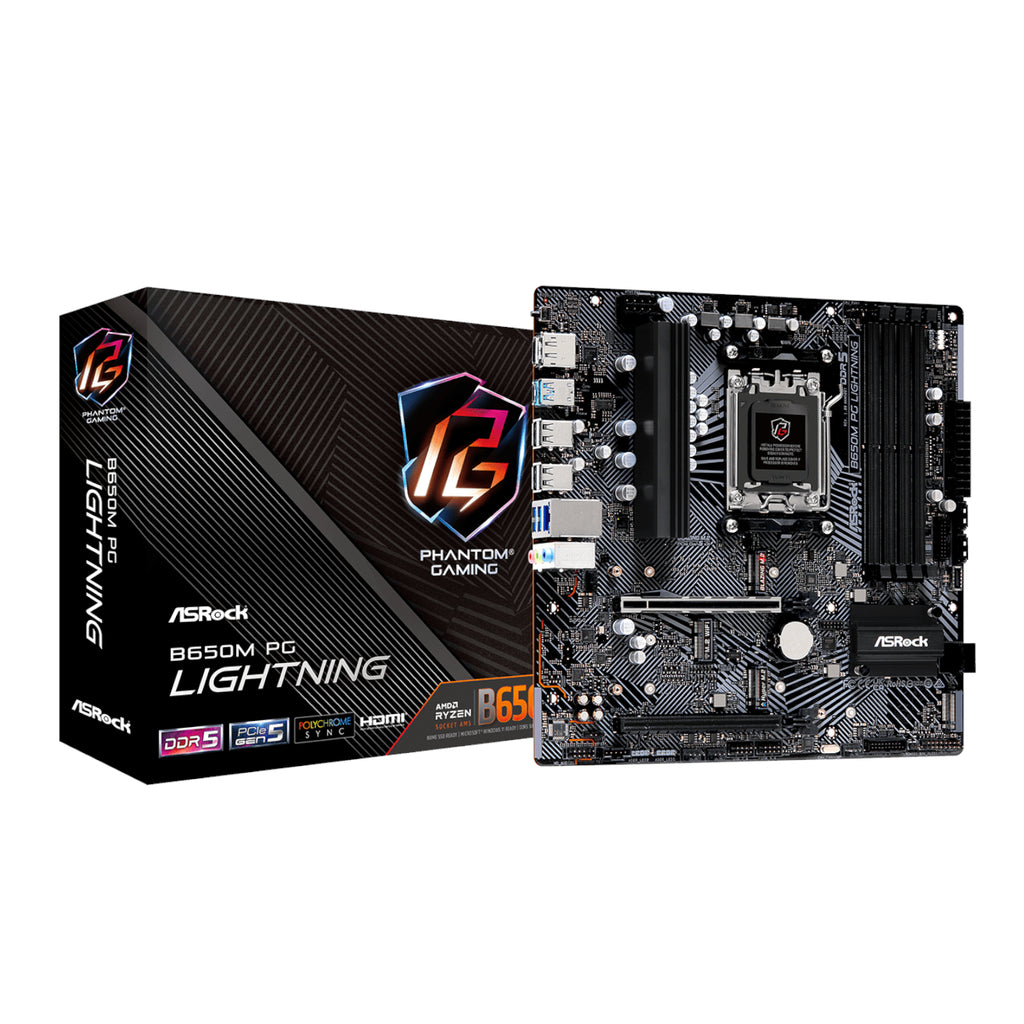

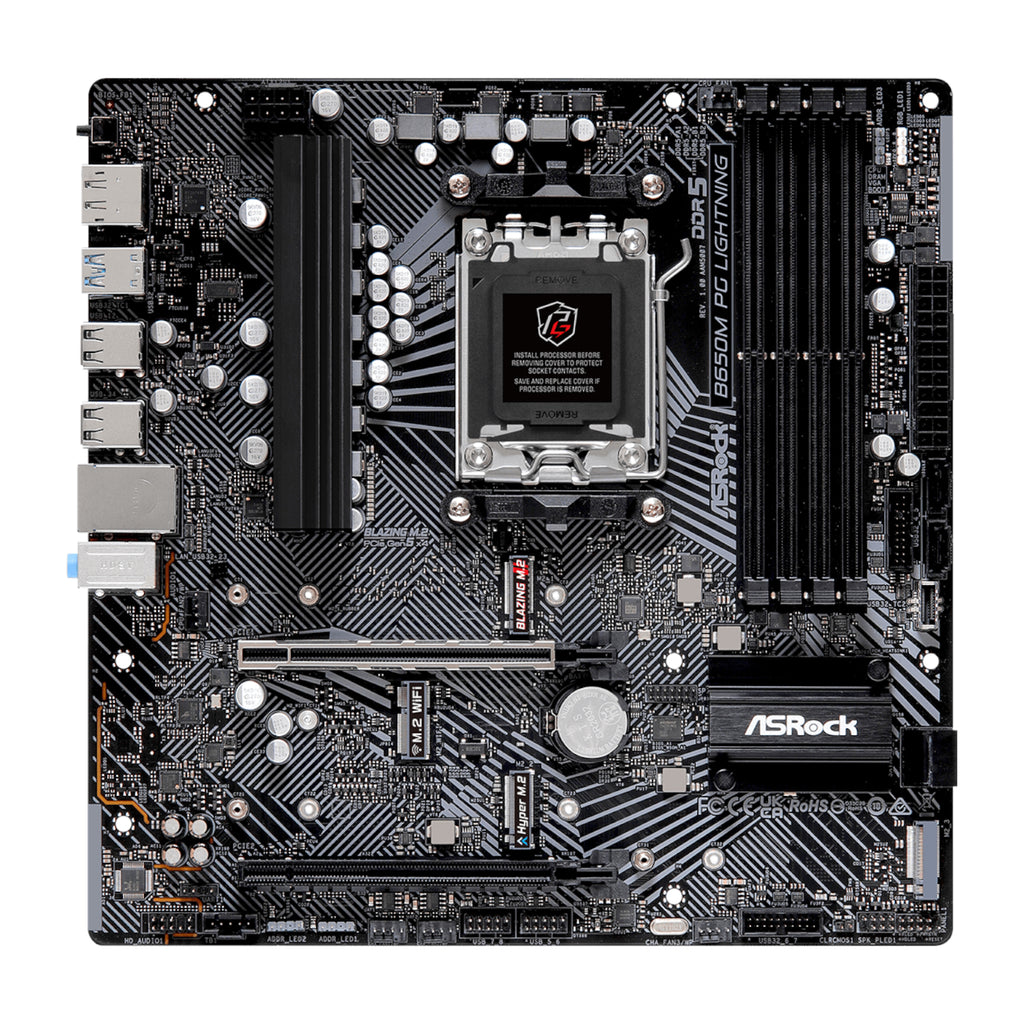

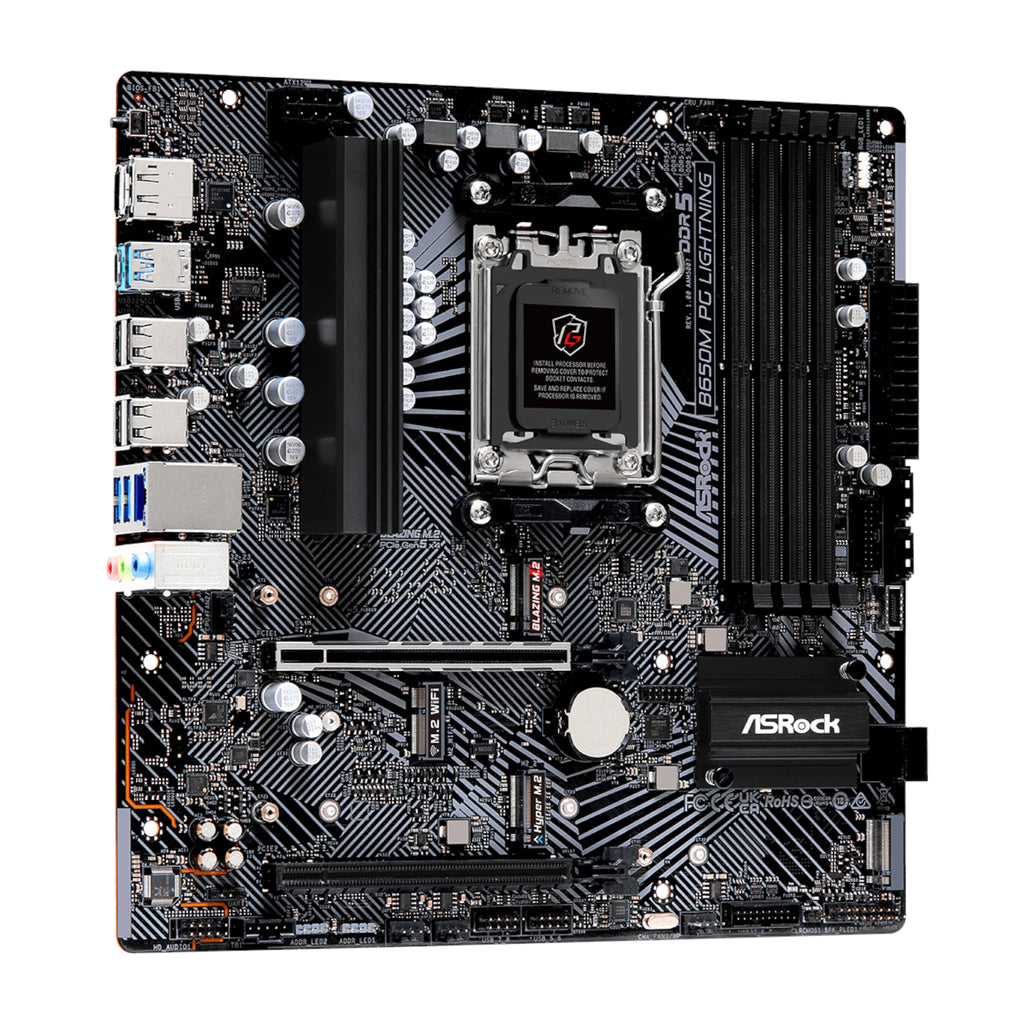

ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard
R 2,799.00
Skip to product information
Supports AMD Ryzen 7000, 8000, and 9000 Series Processors: Future-proof your gaming rig.
AMD B650 Chipset: Ensures optimal performance and efficient power delivery.
Up to 256GB DDR5 Memory Support: Experience lightning-fast responsiveness.
HDMI and DisplayPort Outputs: Enjoy stunning visuals with integrated graphics.
Micro ATX Form Factor: Fits perfectly in compact and mid-tower cases.
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
6+2+1 Power Phase, Dr.MOS
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
Graphics Output: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
1 USB 3.2 Gen2 Type A+C (Rear),
1 USB 3.2 Gen1 Type-C (Front),
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
Phantom Gaming 2.5G LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
CPU & Chipset
ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard
R 2,799.00
Warranty
- Socket: AMD AM5
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
- Chipset: AMD B650
- *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
- 256Mb AMI UEFI Legal BIOS with GUI support
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- *Please refer to Memory Support List for more information.
- Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- * Supports NVMe SSD as boot disks
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
- * Supports NVMe SSD as boot disks
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
- * Requires additional M.2 NVMe expansion cards to support RAID 10
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
- * All USB ports support ESD Protection
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
- * Supports in total up to 12V/3A, 36W LED Strip
- ** Support in total up to 5V/3A, 15W LED Strip
- *** CPU_FAN1 supports the fan power up to 1A (12W).
- **** CPU_FAN2/WP supports the fan power up to 2A (24W).
- ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
- CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Type-A Ports
