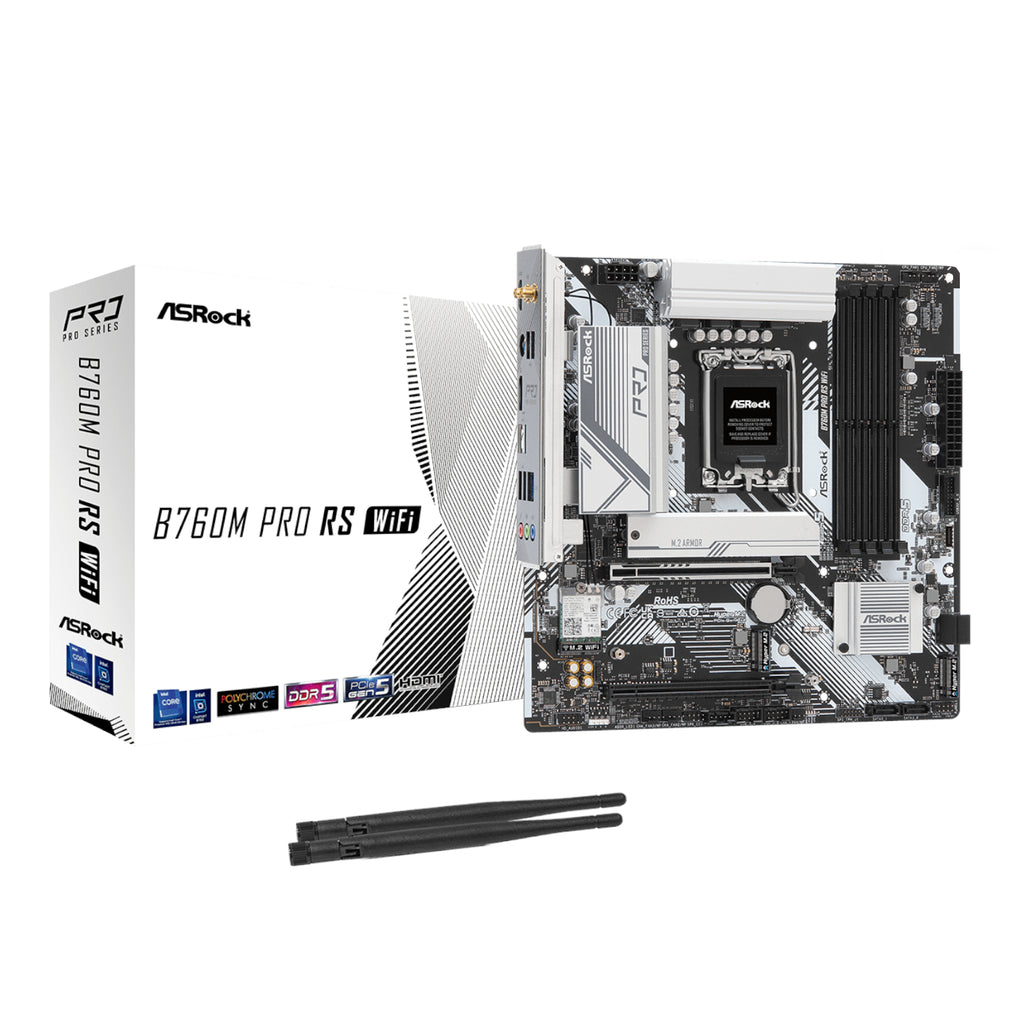

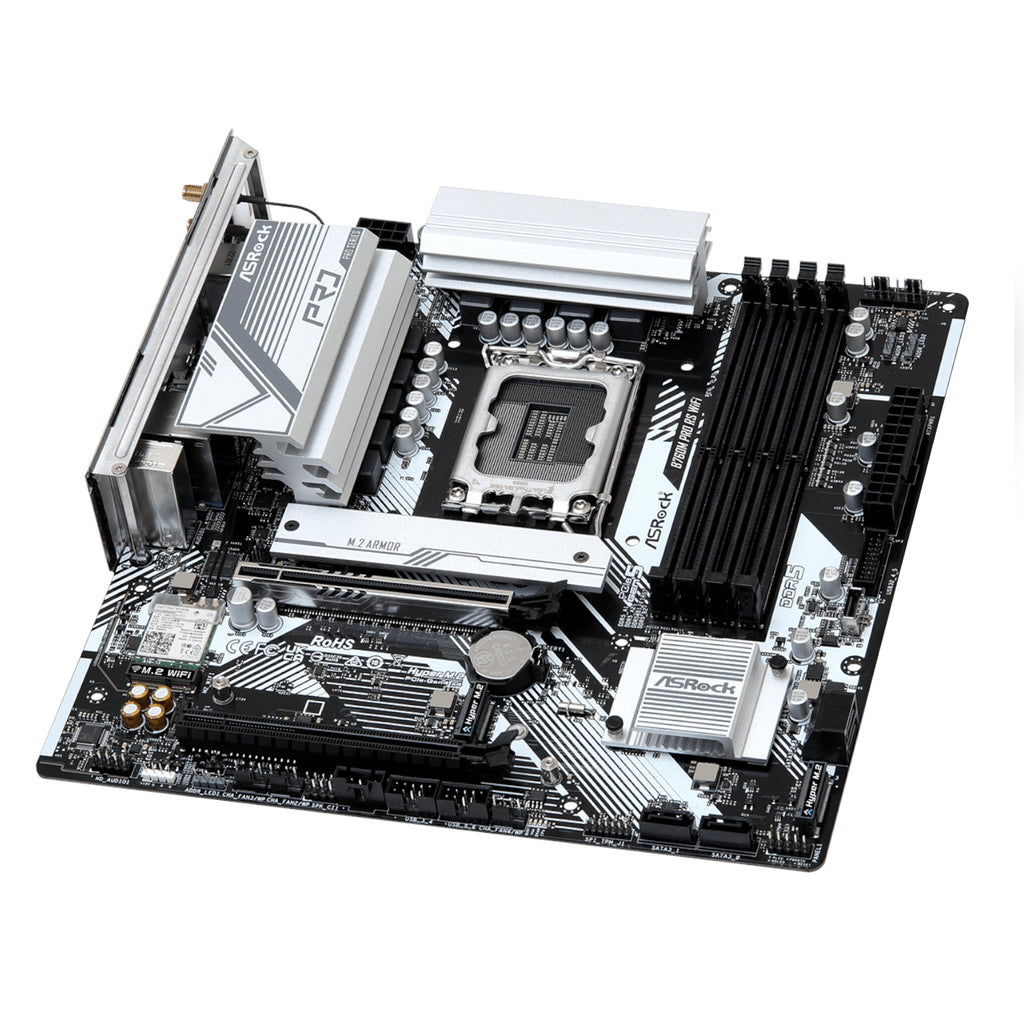

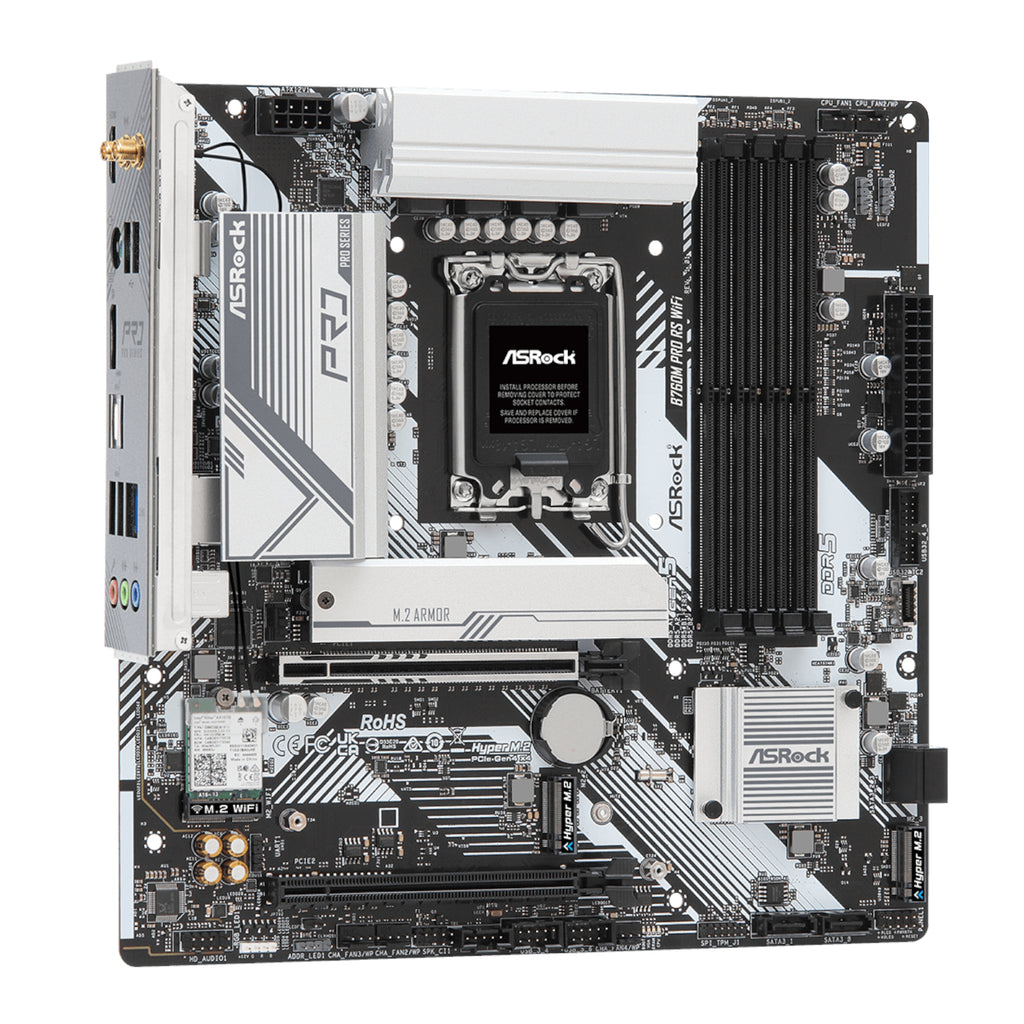

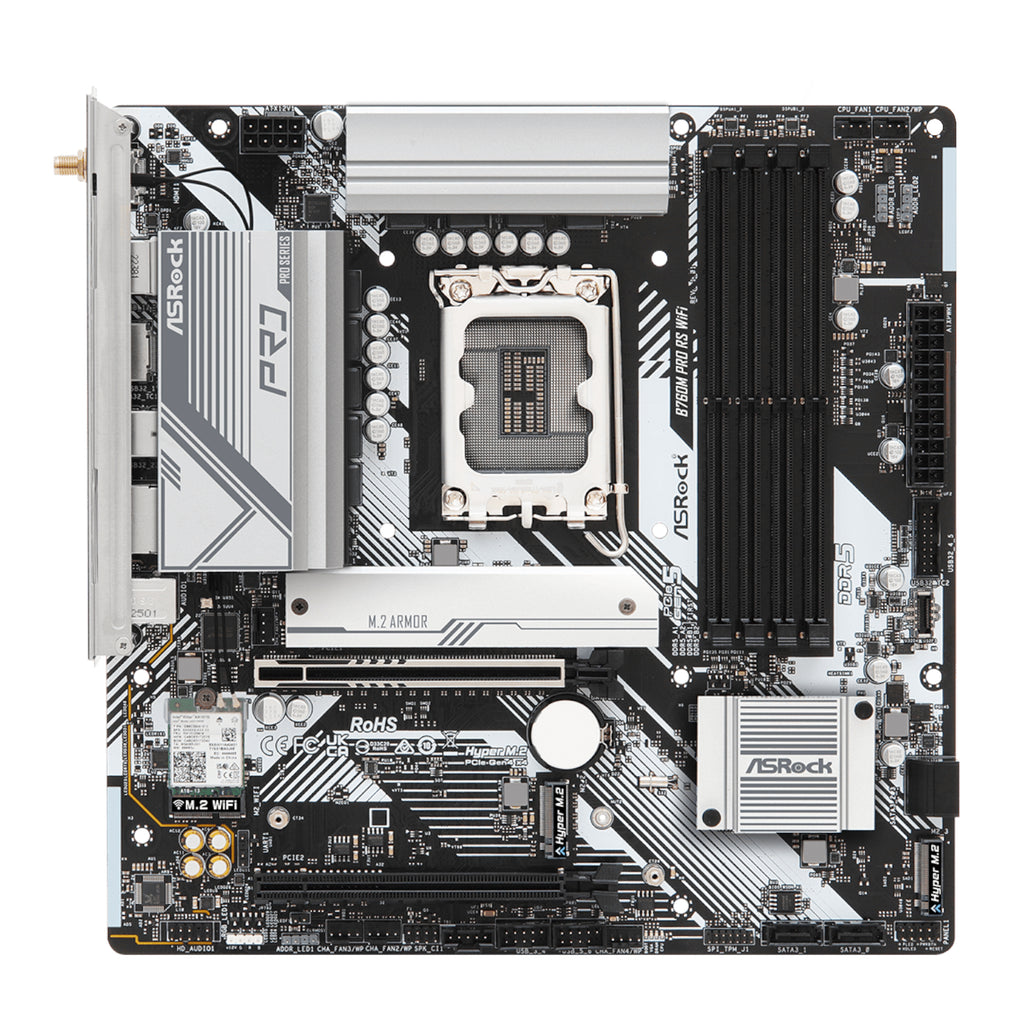

ASRock B760M Pro RS WiFi Intel LGA 1700 MATX Gaming Motherboard
R 3,399.00
Skip to product information
Support for 12th and 13th Gen Intel Core processors ensures cutting-edge performance.
Dual-channel DDR5 memory support allows for up to 256GB for demanding multitasking.
Integrated Wi-Fi 6E offers fast, stable wireless networking for seamless online gaming.
PCIe 5.0 support provides the bandwidth for the latest, most powerful graphics cards.
Robust power delivery system ensures stable operation for overclocking and sustained loads.
Experience lightning-fast wireless speeds and reduced latency with integrated Wi-Fi 6E for a competitive edge.
Future-proof your build by leveraging PCIe 5.0 support, ensuring compatibility with next-generation graphics cards.
Run demanding applications and multitask with ease, thanks to support for up to 256GB of DDR5 memory.
Enjoy crisp visuals for gaming and productivity with onboard HDMI and DisplayPort outputs.
Benefit from a stable and reliable power supply for your CPU, crucial for sustained performance and overclocking.
Effortlessly connect your core components with the versatile Micro-ATX form factor, balancing size and functionality.
CPU:
ASRock B760M Pro RS WiFi Intel LGA 1700 MATX Gaming Motherboard
R 3,399.00
Warranty
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Intel® B760
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
- *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
- 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
- 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
- 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
- 128Mb AMI UEFI Legal BIOS with GUI support
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- *The 6GHz band of Wi-Fi 6E module is supported by Microsoft® Windows® 11 only.
- The availability of the 6GHz band will depend on the different regulation status of each country and region.
- It will be activated (for supported countries) through Windows® Update and software updates once available.
- A 6GHz compatible router is required for 6E functionality.
- CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
- * Supports NVMe SSD as boot disks
- CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
- * Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Chipset:
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
- * All USB ports support ESD Protection
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
