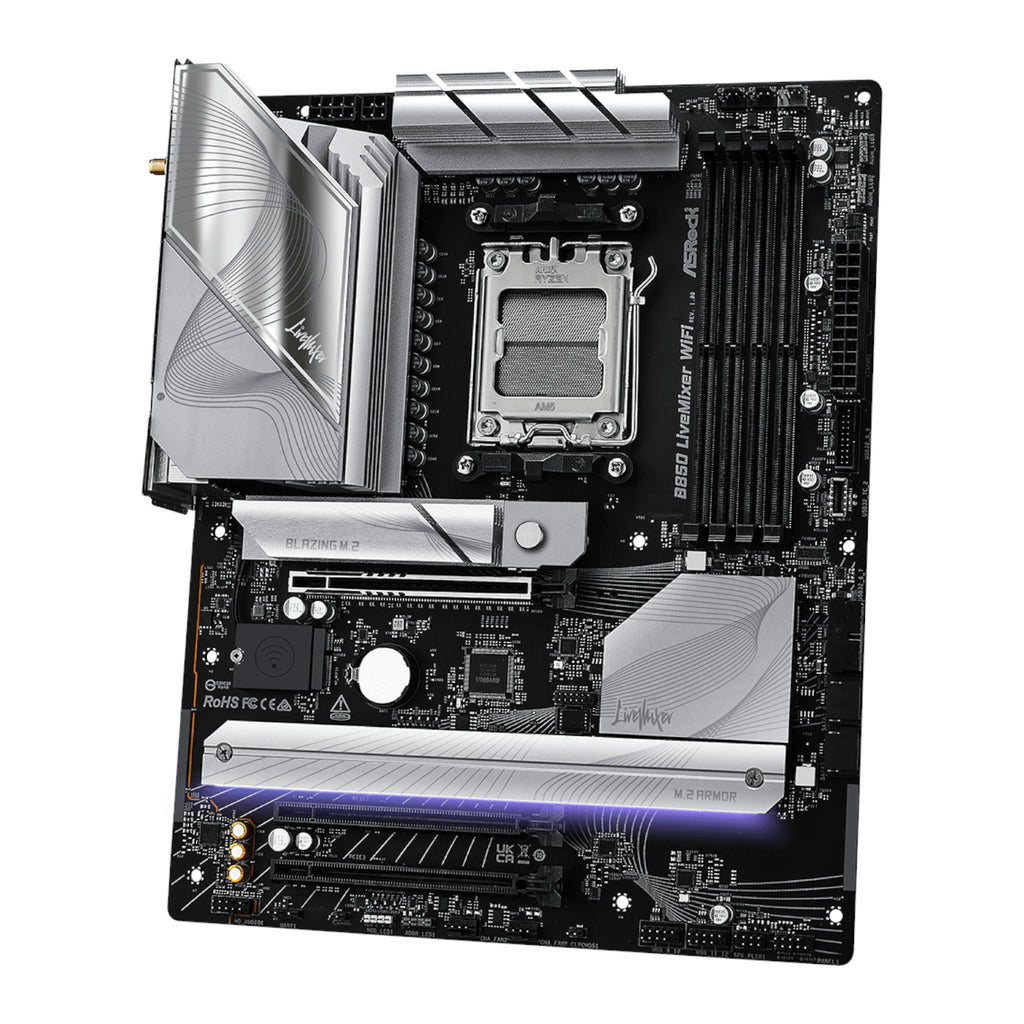

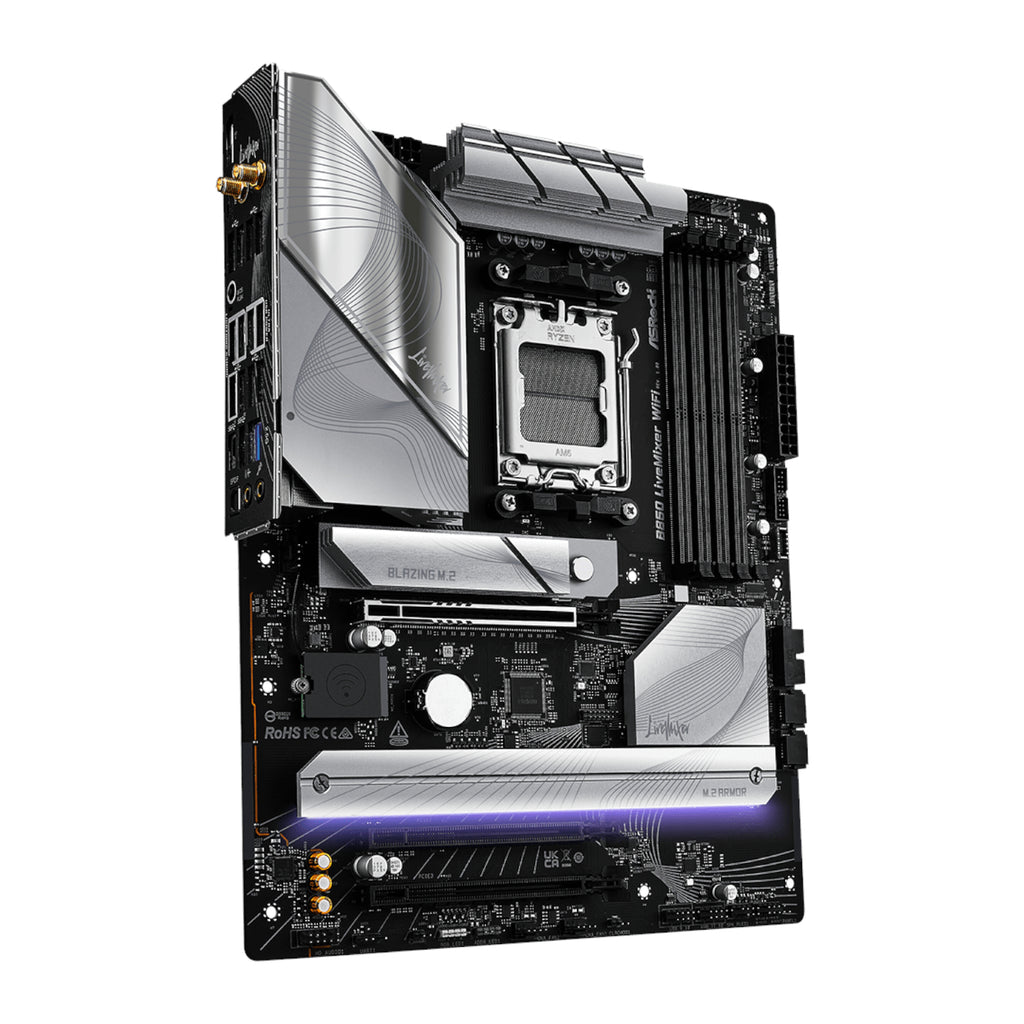

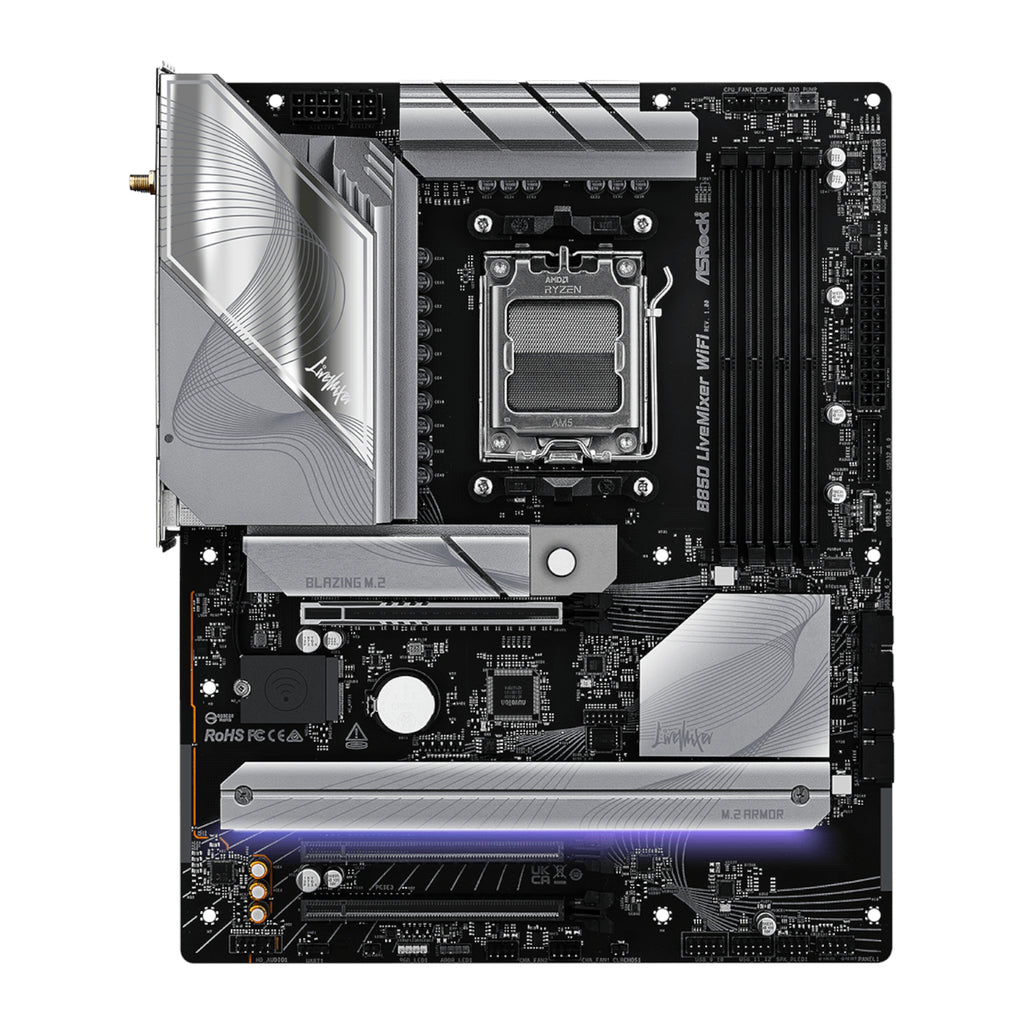

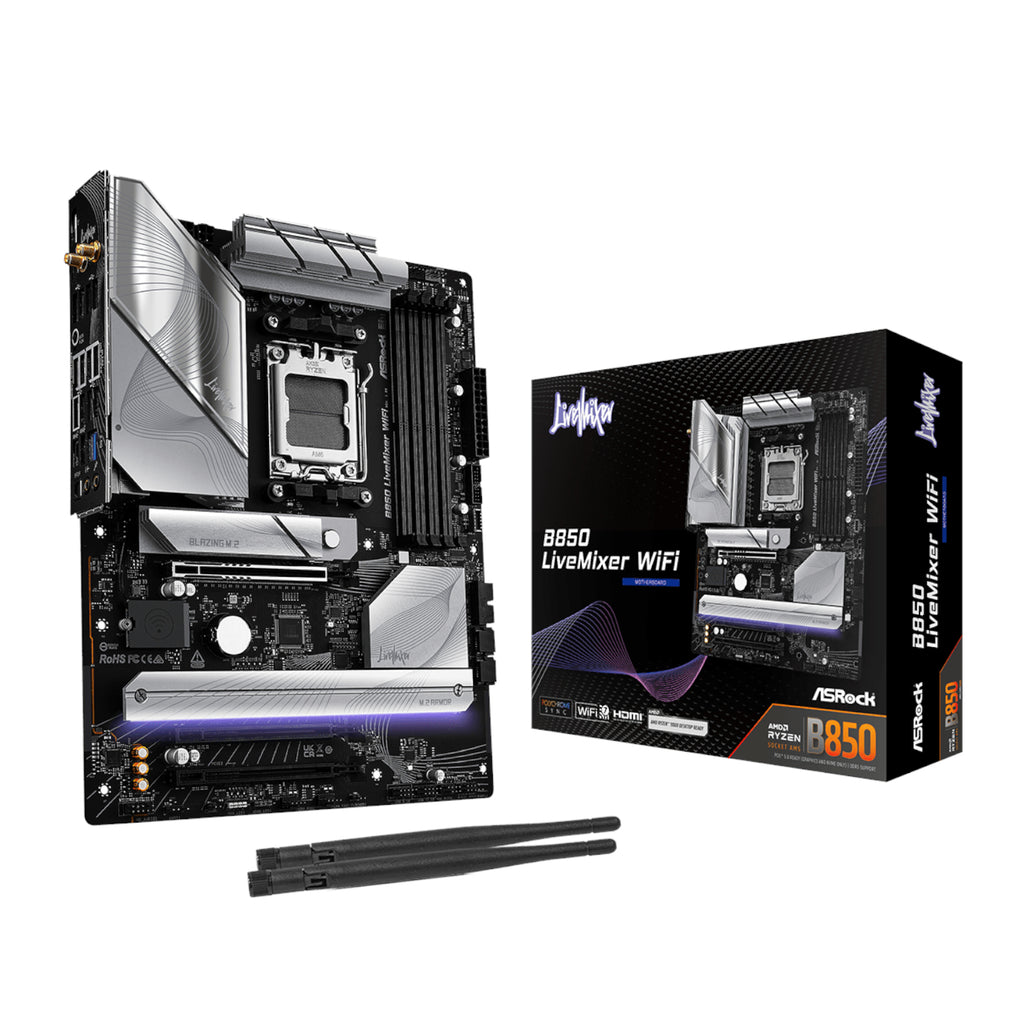

ASRock B850 LiveMixer WiFi AM5 ATX Gaming Motherboard
R 4,599.00
Skip to product information
Build your dream PC with support for the latest AMD Ryzen™ 9000, 8000, and 7000 series processors on the AM5 socket.
Experience seamless multitasking and demanding applications with support for up to 256GB of system memory.
Enjoy crisp visuals for work and play with dual display outputs: 1 HDMI and 1 DisplayPort.
Ensure stability and compatibility with Microsoft Windows 10 and 11 64-bit operating systems.
Benefit from a spacious ATX form factor, providing ample room for component installation and expansion.
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
1x PCIe 5.0 x16, 2 PCIe 4.0 x16
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
1x Blazing M.2 (PCIe Gen5x4)
2x Hyper M.2 (PCIe Gen4x4)
2x SATA3
1x USB 3.2 Gen2x2 Type-C (Front)
1x USB 3.2 Gen2 Type-C (Rear)
1x USB 3.2 Gen2 Type-A (Rear)
8x USB 3.2 Gen1 (4 Rear, 4 Front)
12x USB 2.0 (8x Rear, 4x Front)
Realtek 2.5G LAN
802.11be WiFi 7 +Bluetooth
Supports M.2 Bottom Heatsink
BIOS Flashback
CPU: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset: AMD B850
Memory:
ASRock B850 LiveMixer WiFi AM5 ATX Gaming Motherboard
R 4,599.00
Warranty
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz* frequency band
- Supports 160MHz channel bandwidth with 6GHz* frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
- CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- Chipset:
- 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
- Supports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
- CPU:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
- Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 7 x USB 3.2 Gen1 Type-A (3 Rear (USB32_234), 4 Front)
- 12 x USB 2.0 (8 Rear, 4 Front)
- 1 x SPI TPM Header
- 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 2 x Antenna Ports

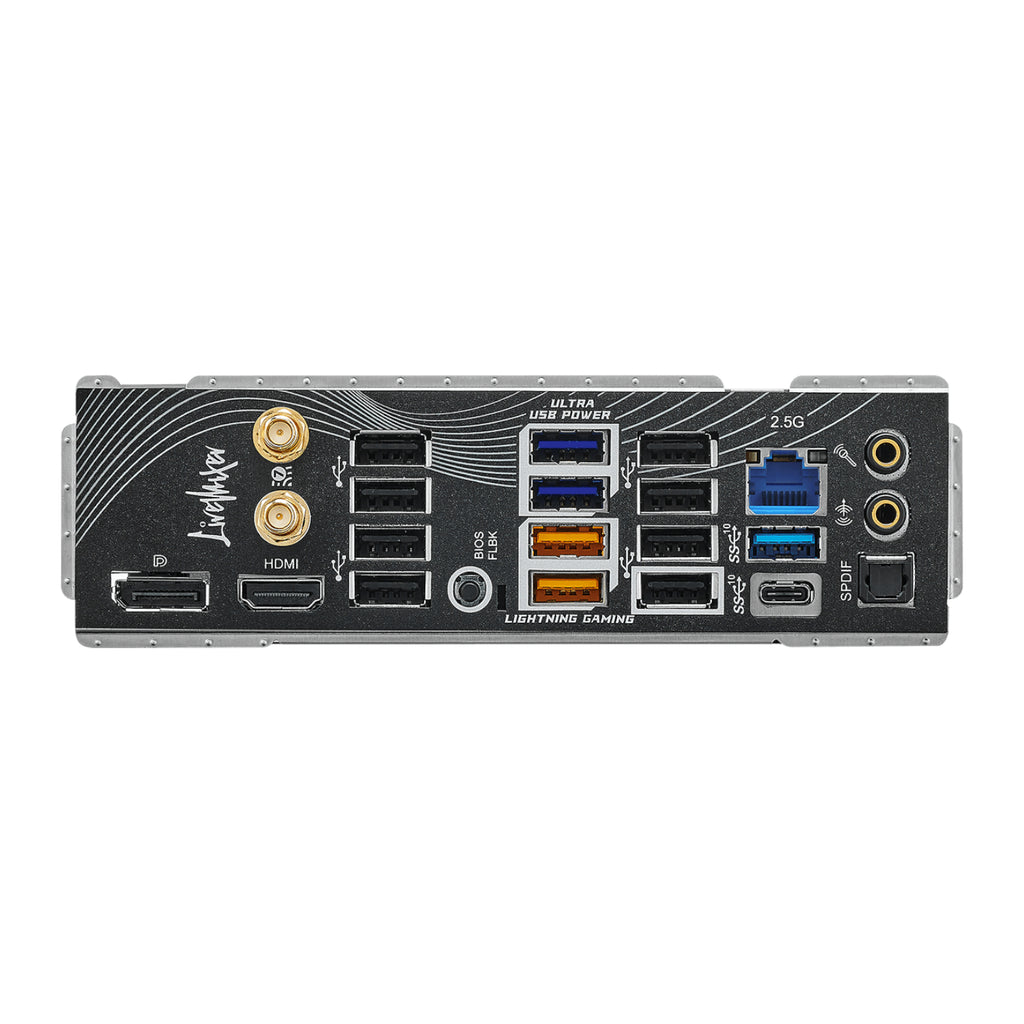

- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
