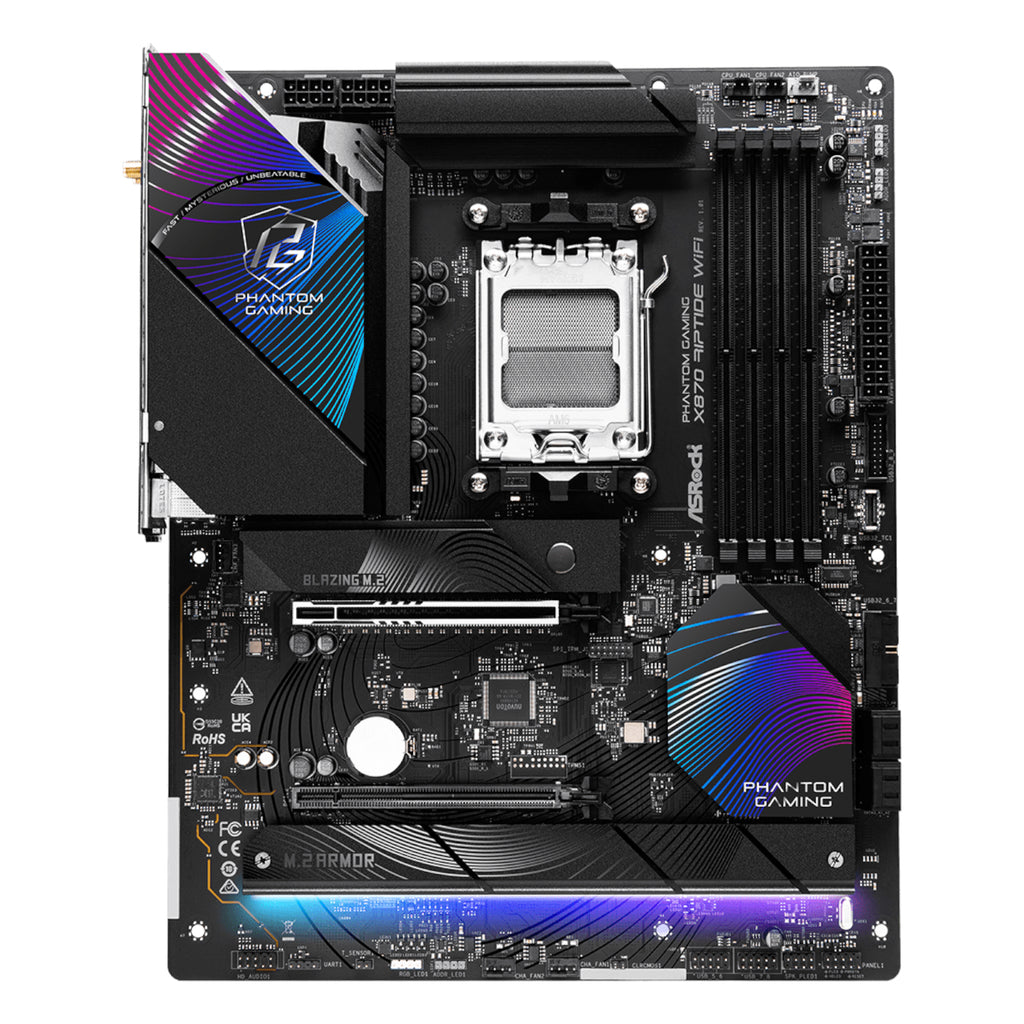

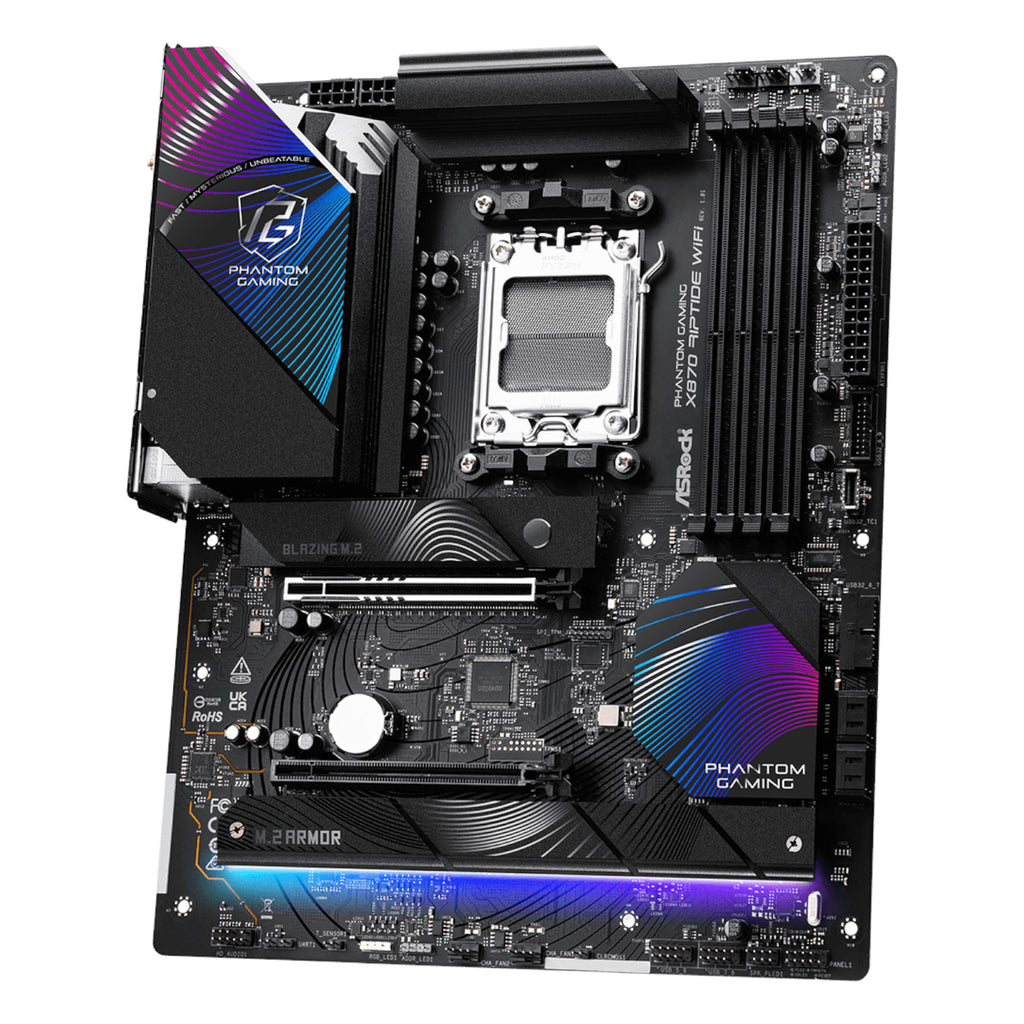

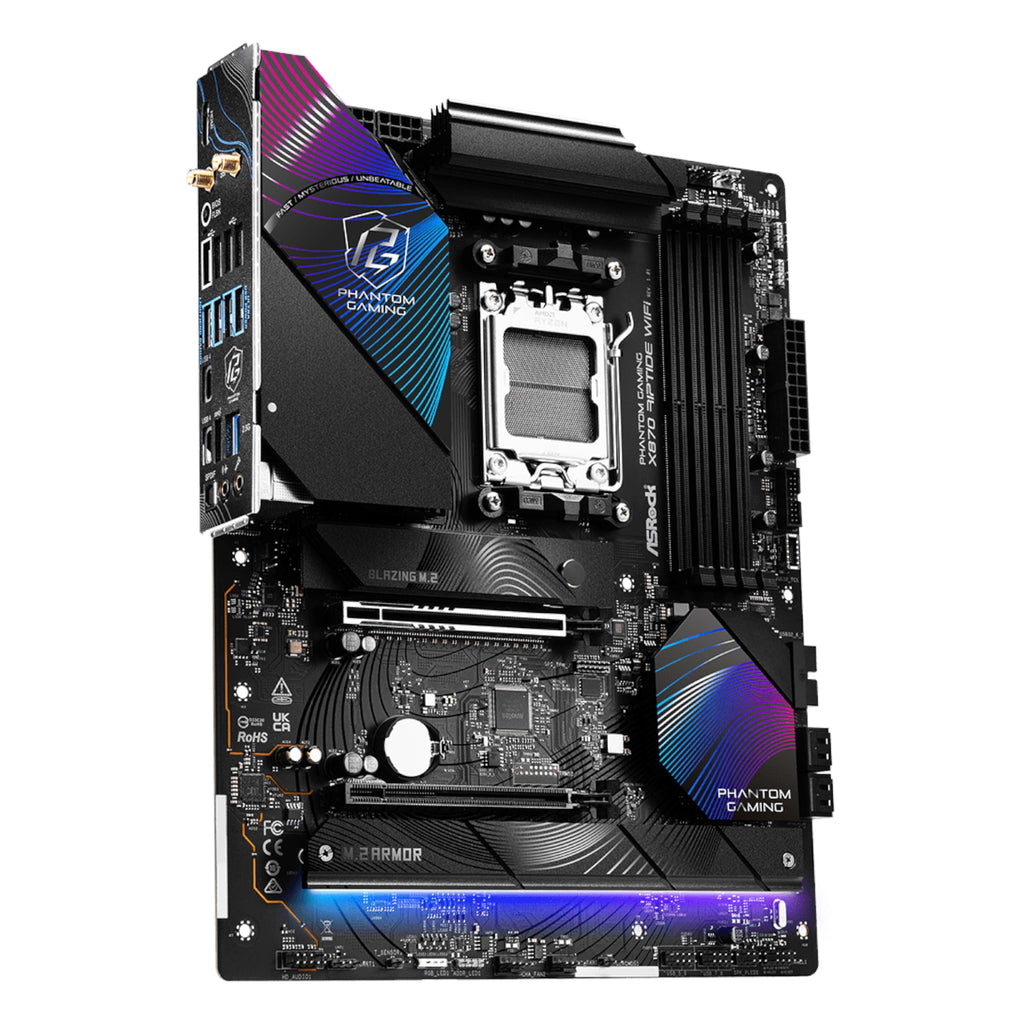

ASRock X870 Riptide AM5 Wi-Fi Phantom Gaming Motherboard
ASRock X870 Riptide AM5 Wi-Fi Phantom Gaming Motherboard
Warranty
Experience the cutting edge of gaming performance and system flexibility with the ASRock X870 Riptide AM5 Wi-Fi Phantom Gaming Motherboard, engineered for enthusiasts who demand power, precision, and personalization. Designed around the powerful AMD X870 chipset and AM5 socket, this high-performance motherboard supports the latest Ryzen™ 9000, 8000, and 7000 Series processors, delivering exceptional responsiveness across gaming, streaming, and content creation. Featuring an 8-layer PCB, the X870 Riptide ensures superior thermal and power efficiency—perfect for extreme DDR5 memory overclocking up to 8000+ MHz. Whether you're fine-tuning performance via AMD EXPO™ profiles or pushing your system to the edge, the Riptide offers rock-solid reliability with a sleek, gamer-centric aesthetic.
Connectivity and expansion are at the heart of the X870 Riptide. It supports PCIe 5.0 graphics cards and Gen5 NVMe SSDs, with a Blazing M.2 slot that achieves up to 128 Gb/s transfer rates for next-gen storage. With three M.2 slots, 4 SATA3 connectors, and a reinforced Steel PCIe x16 slot for GPU stability, the board balances power and expandability. Users benefit from USB4 Type-C ports offering up to 40 Gb/s of data throughput, along with USB 3.2 Gen2x2 front panel Type-C, making high-speed data access simple and future-proof. Networking is equally robust with Killer 2.5Gb LAN and Wi-Fi 7 + Bluetooth 5.4, delivering seamless online gameplay and ultra-low latency.
- Socket: AMD AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- Chipset: AMD X870
- Slots: 4 × DDR5 DIMM slots
- Capacity: Up to 256 GB
- Speed: Supports DDR5‑8000+ (OC)
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors

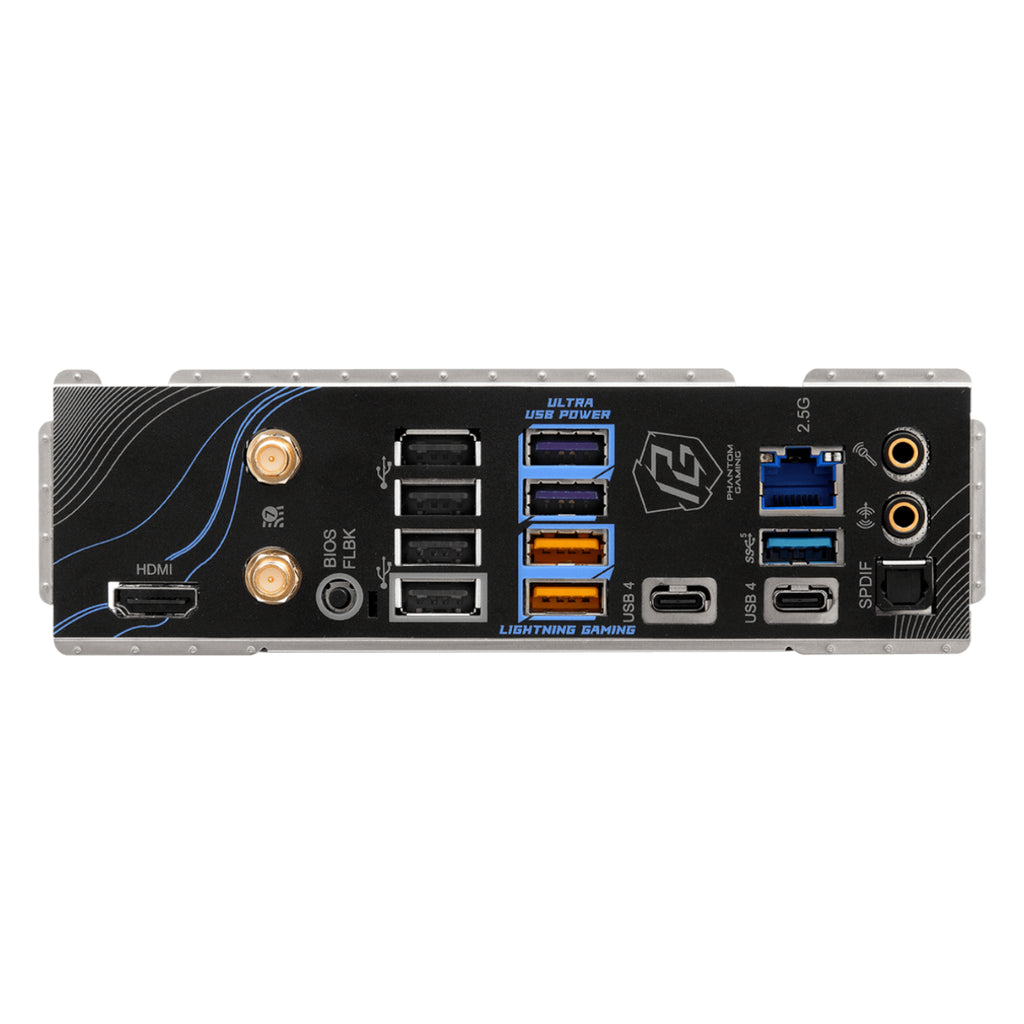

- 2 x USB4 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)*
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
- BIOS Flashback button
- LAN: Killer E3100G 2.5 Gbps
- Wi‑Fi/Bluetooth: Integrated Wi‑Fi 7 & Bluetooth 5.4
- Codec: Realtek ALC4082
- Channels: 7.1 Nahimic audio support
- 1 x Thermistor Cable Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 256 Mb AMI UEFI BIOS, includes BIOS Flashback
- ASRock Phantom Gaming Tuning, Polychrome SYNC, Instant Flash tools

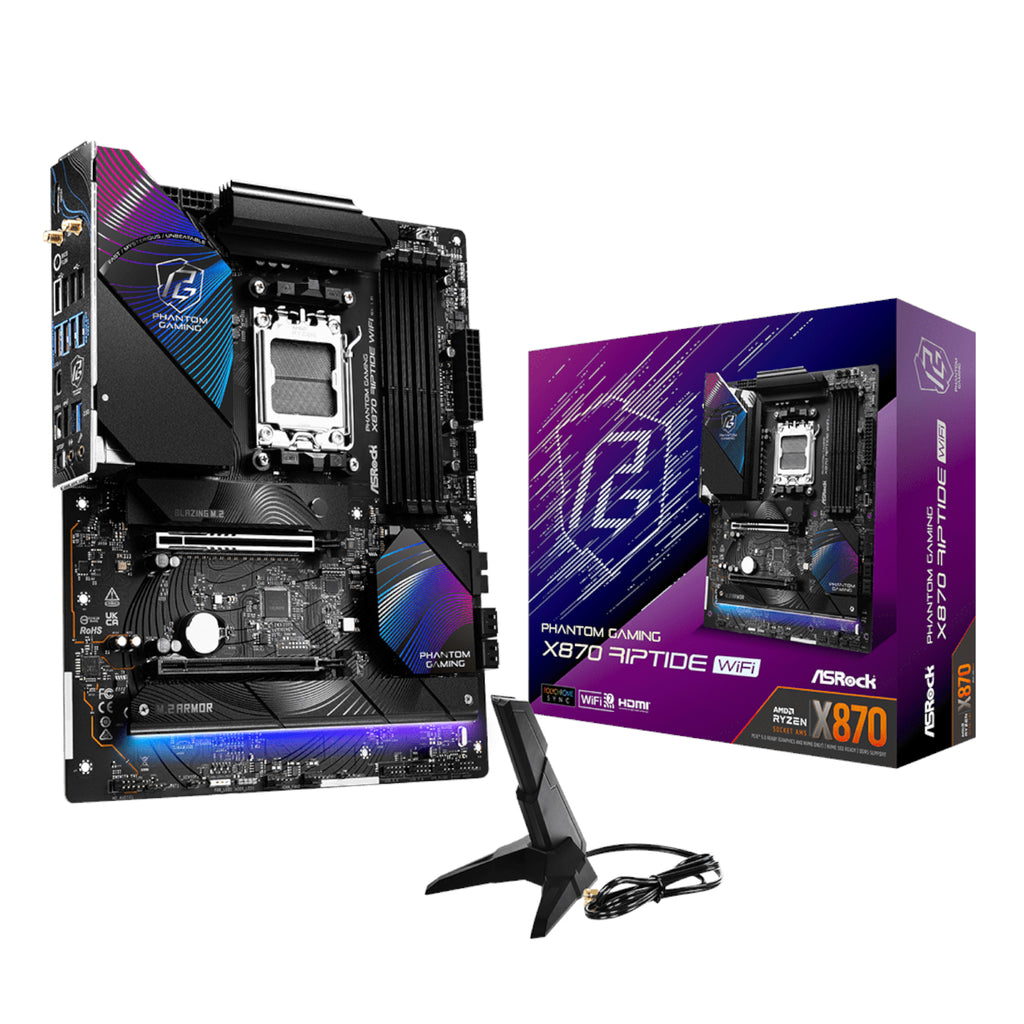

- SATA Cables x2
- Wi-Fi Antenna x1
