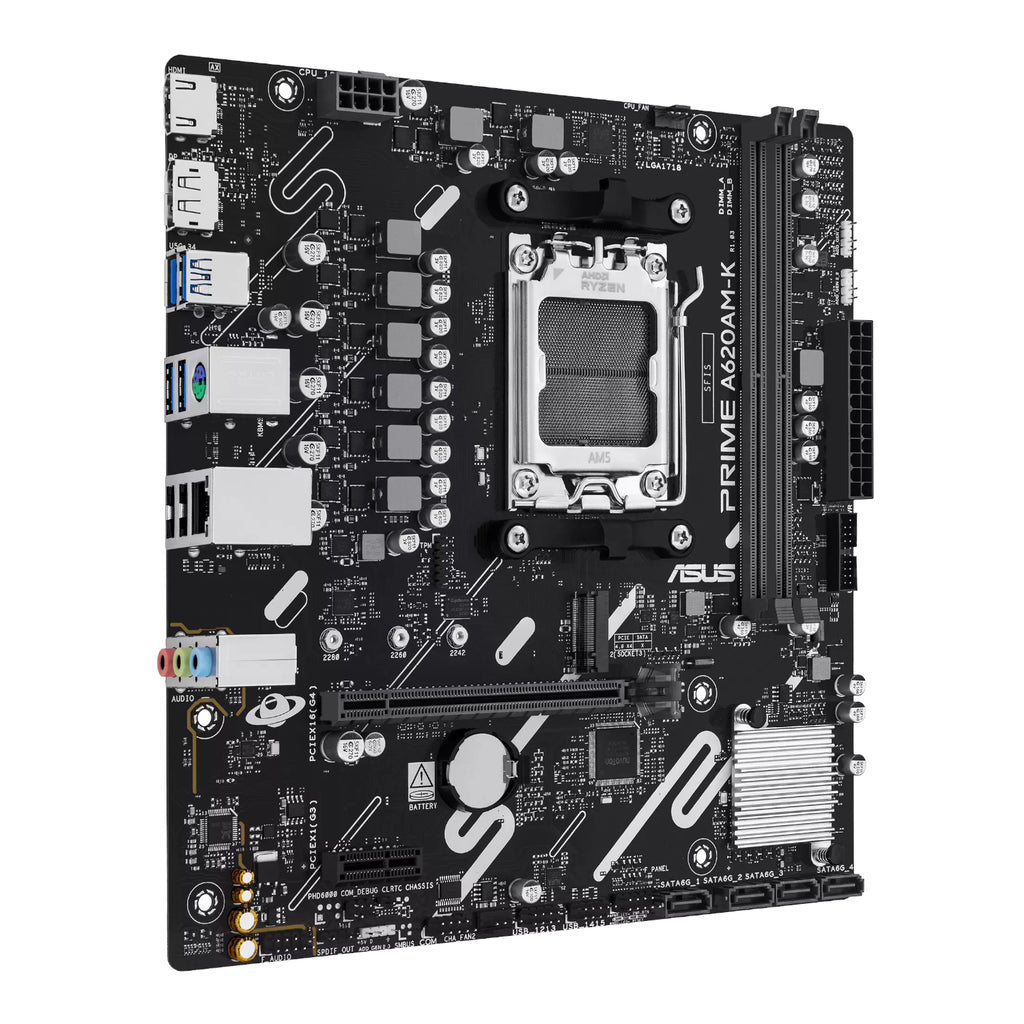

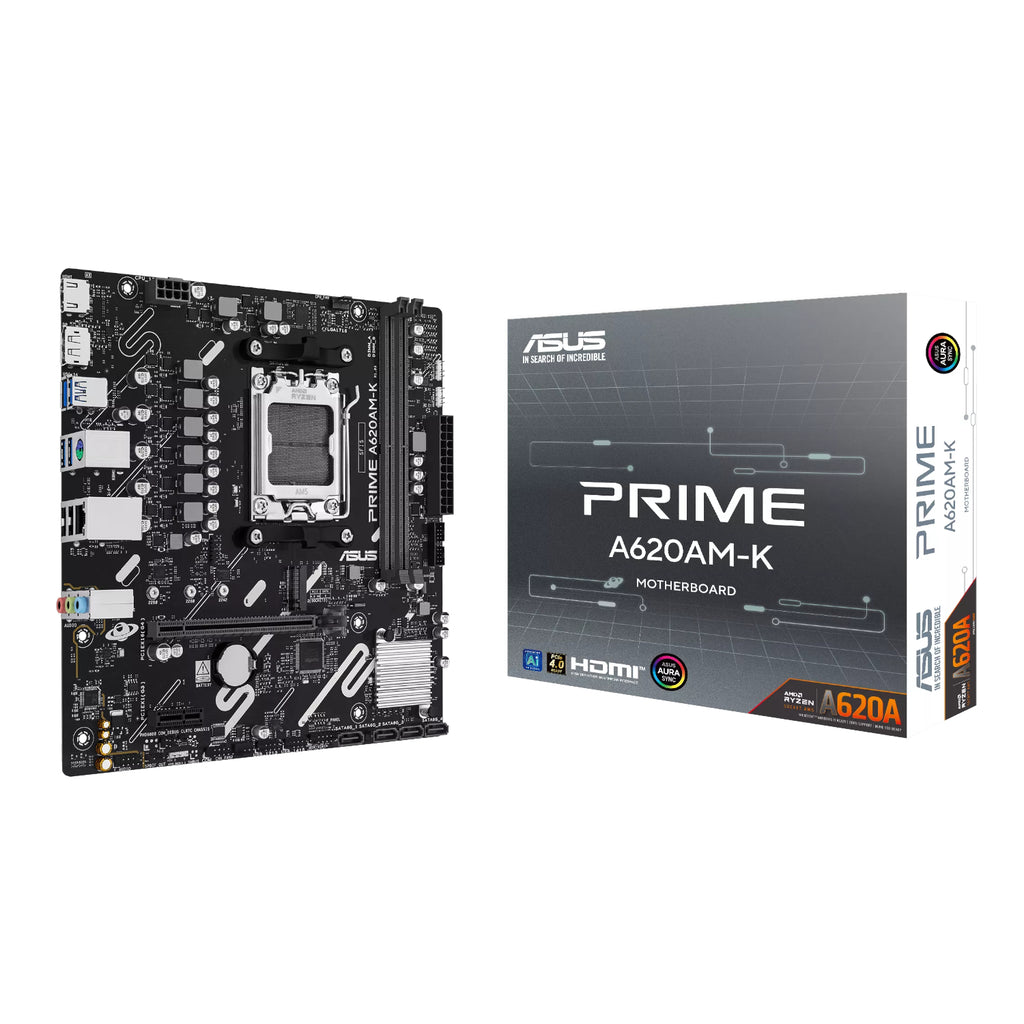

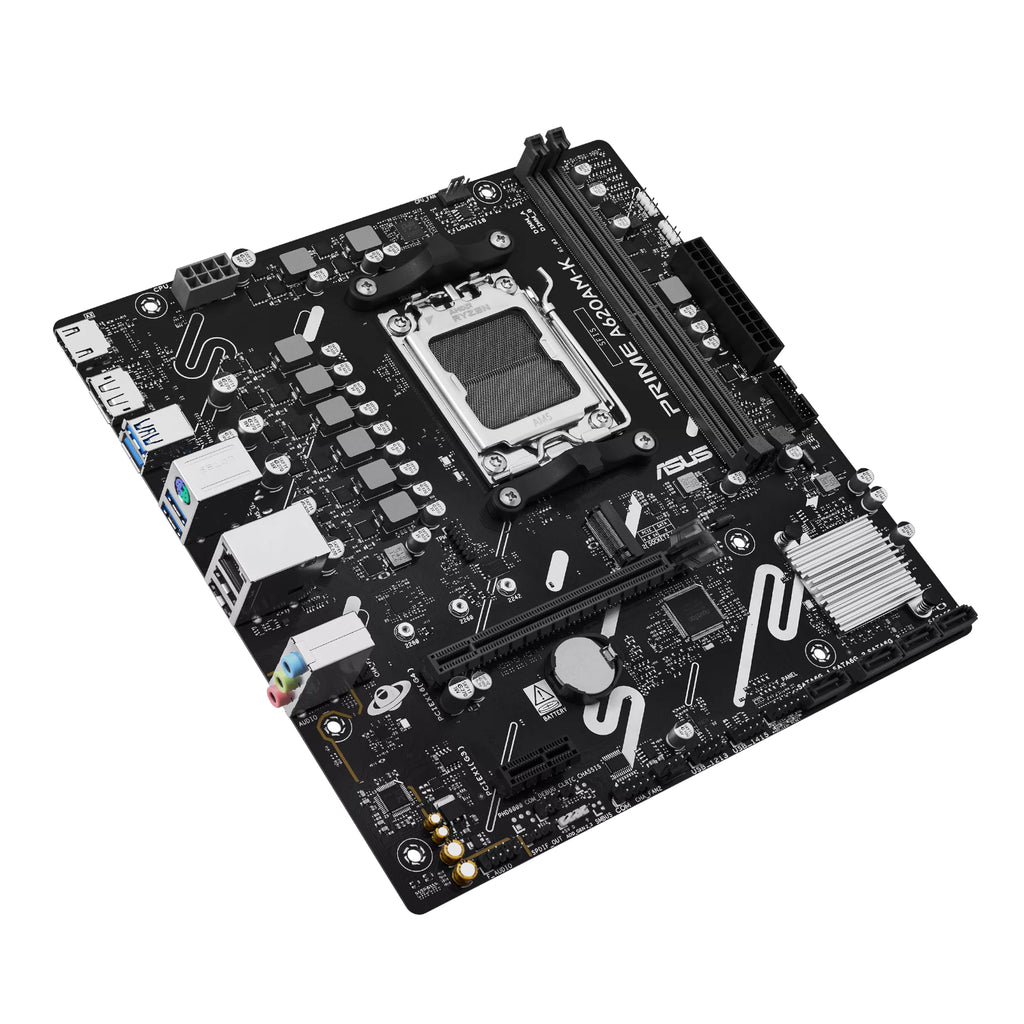

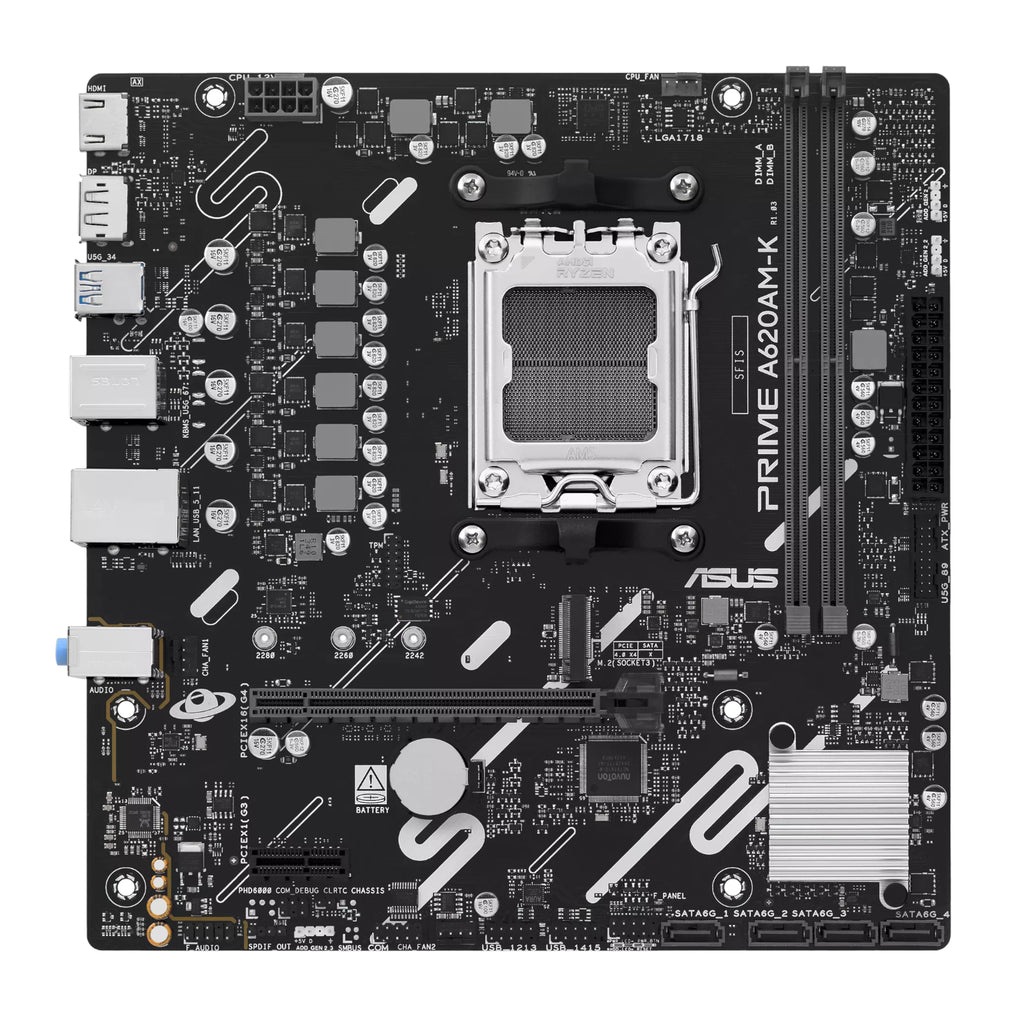

Asus PRIME A620AM-K AM5 M-ATX Motherboard
R 1,799.00
Skip to product information
Supports the latest AMD Ryzen™ 7000, 8000, and 9000 series processors for broad compatibility.
Robust power delivery ensures stable operation for your CPU and system components.
Multiple USB ports provide ample connectivity for all your essential peripherals.
Onboard M.2 slot offers fast storage upgrade options for quicker load times.
Durable construction and quality components assure reliable, long-term performance.
Leverage the power of AMD Ryzen™ 7000, 8000, and 9000 Series processors for a wide range of performance needs.
Configure robust RAID arrays (0, 1, 10, or 5) for your storage needs, ensuring data integrity and speed.
Experience crystal-clear audio with jack-detection and front panel jack-retasking for personalised sound configurations.
Benefit from multiple USB ports for versatile peripheral connectivity, ensuring all your devices are supported.
Enjoy rapid storage performance with an onboard M.2 slot, designed for swift data access and system responsiveness.
CPU
Asus PRIME A620AM-K AM5 M-ATX Motherboard
R 1,799.00
Warranty
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
- Supports up to AMD 120W CPU
- * Refer to https://www.asus.com/support/download-center/ for CPU support list.
- AMD A620A Chipset
- 2 x DIMM slots, max. 128GB, DDR5
- Supports up to
- 7200+MT/s(OC) with Ryzen™ 9000 & 7000 Series Processors,
- 7600+MT/s(OC) with Ryzen™ 8000 Series Processors,
- Non-ECC Un-buffered DIMM*
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- 1 x DisplayPort**
- 1 x HDMI™ port***
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD A620A Chipset
- 1 x PCIe 3.0 x1 slot
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD A620A Chipset
- 4 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology*
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
- * Specifications vary by CPU types.
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard
- Rear USB (Total 6 ports)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

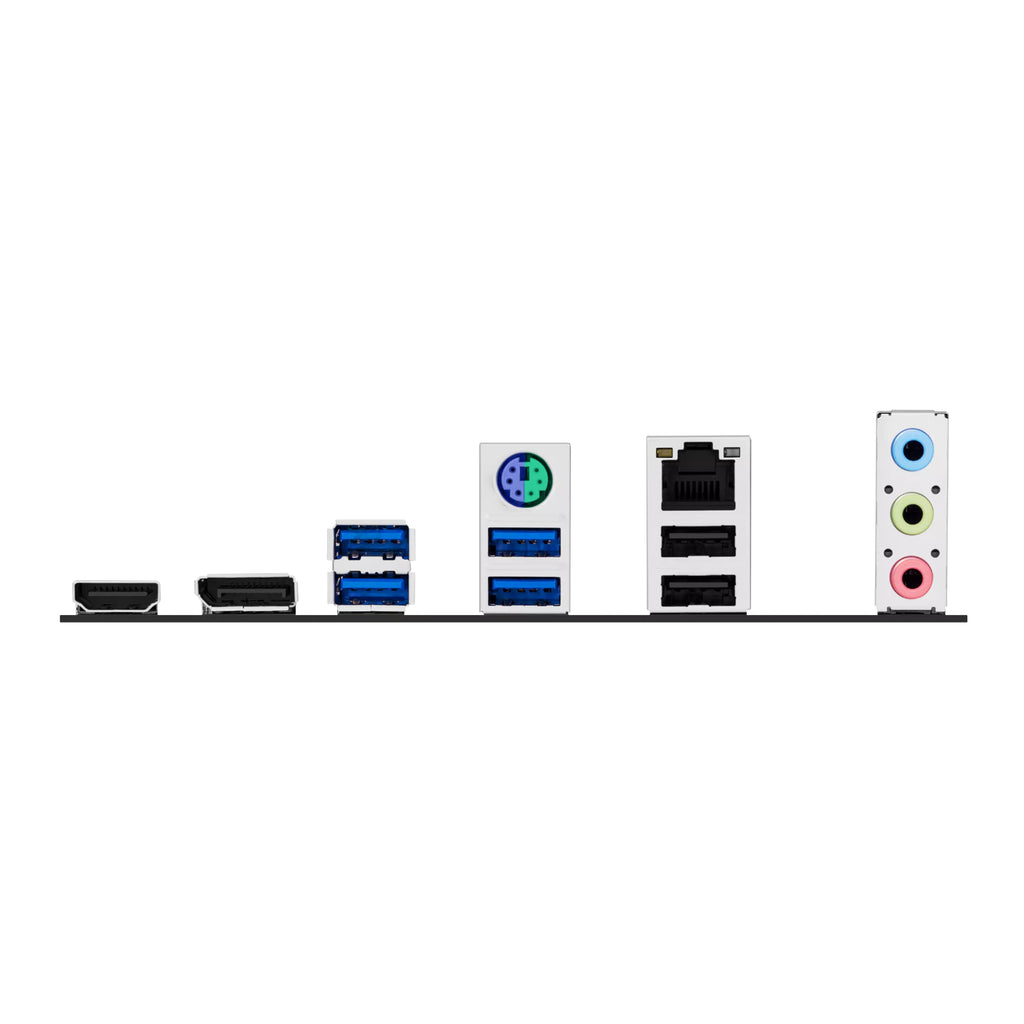

- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 keyboard/mouse combo port
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front Panel System header
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
- ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS Thermal Solution
- Aluminum heatsink design
- Aura Sync
- Addressable RGB Gen 2 headers
- 256 Mb Flash ROM, UEFI AMI BIOS
- WOL by PME, PXE
- Windows 11, Windows 10 64-bit
