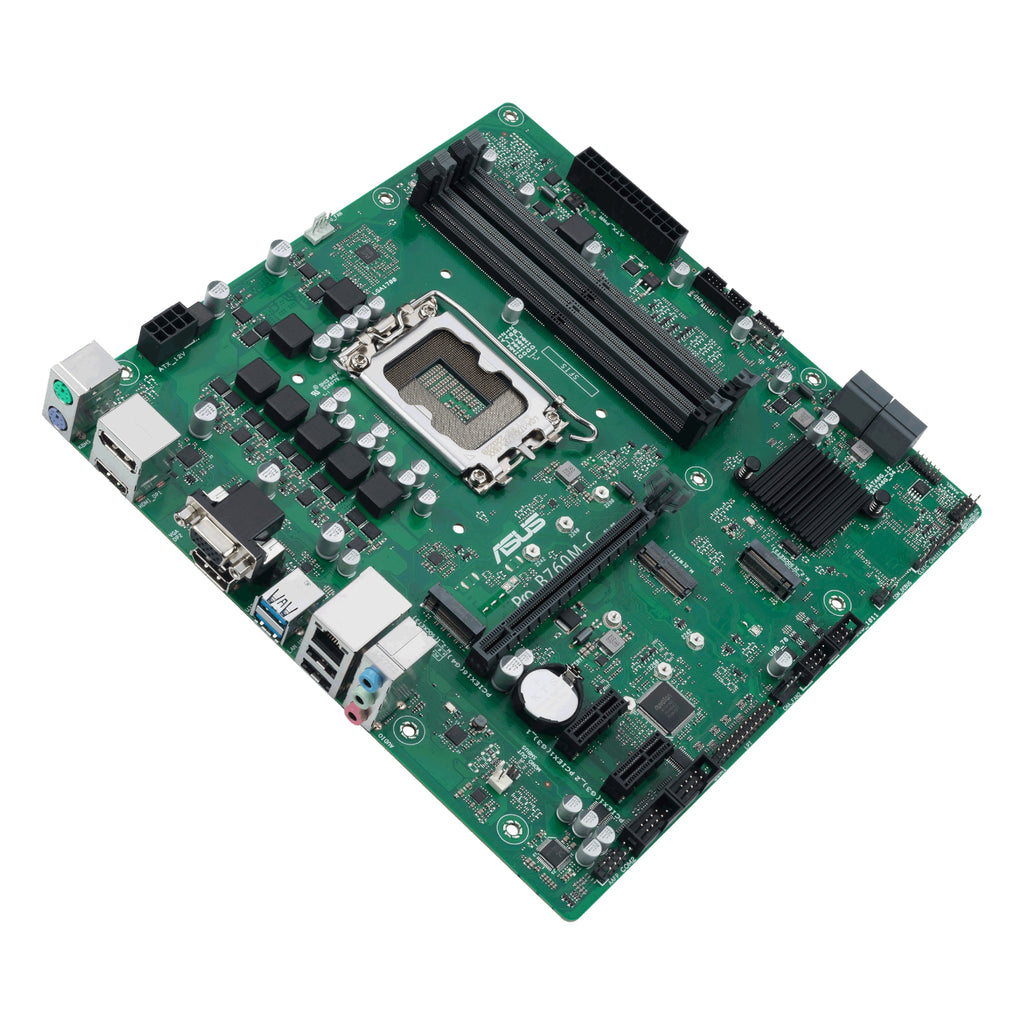

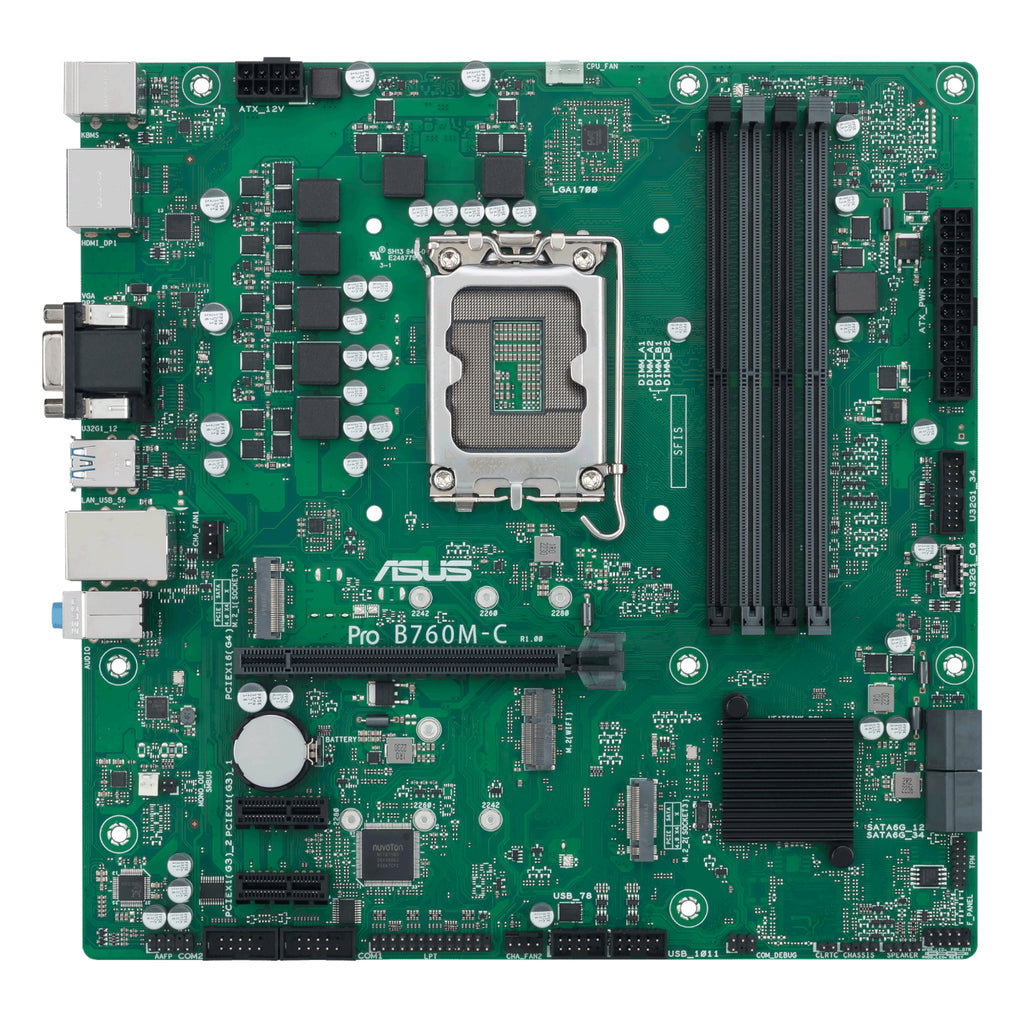

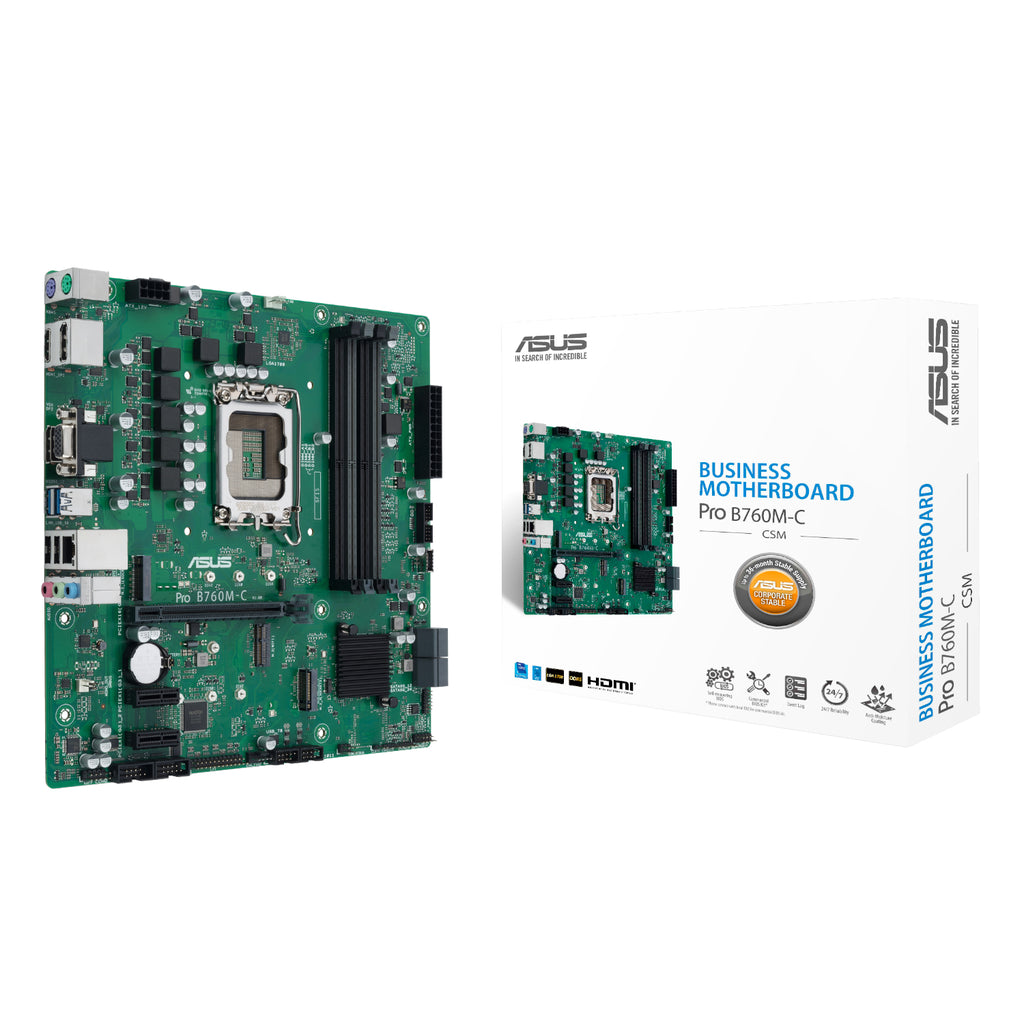

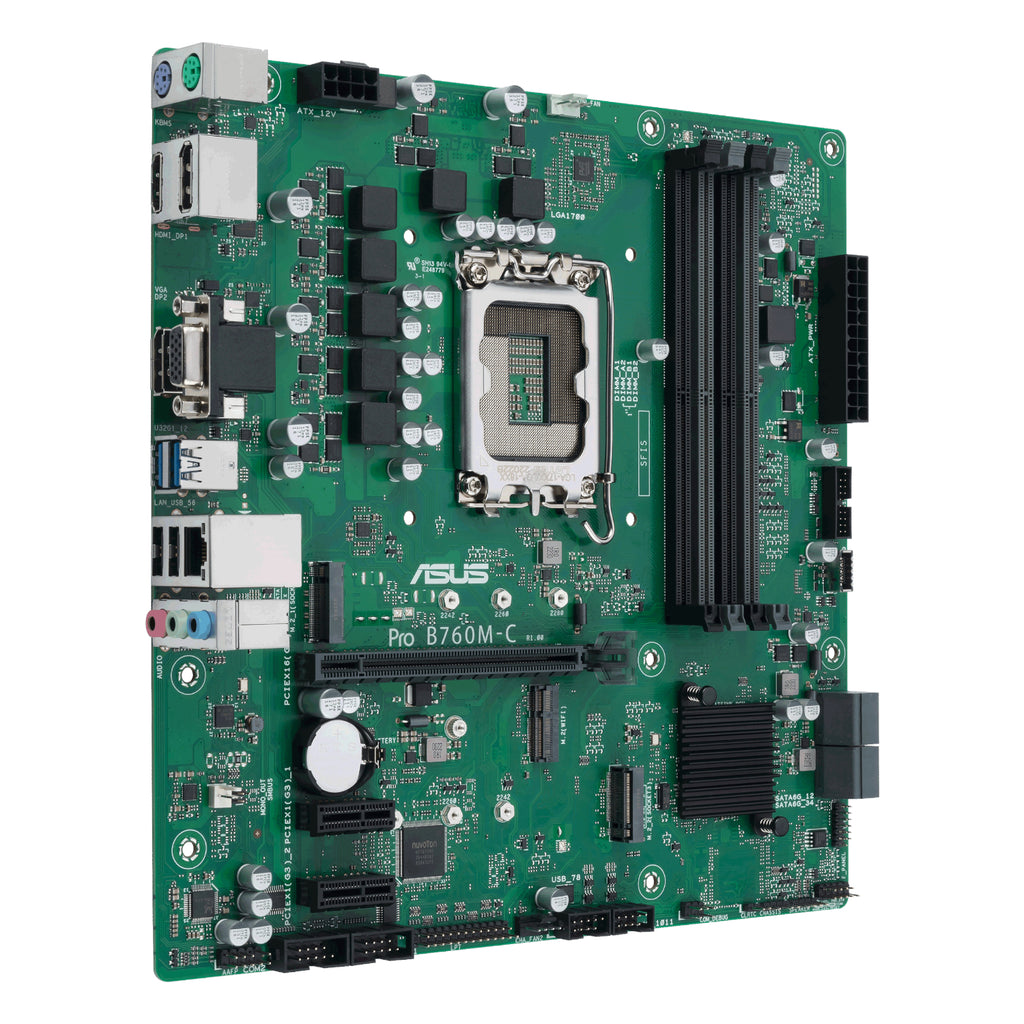

ASUS PRO B760M C CSM LGA 1700 M-ATX Motherboard

The ASUS PRO B760M-C-CSM LGA 1700 mATX Motherboard is a robust and reliable business-class solution designed to meet the demands of modern enterprise computing. Built on the Intel® B760 chipset and supporting 13th and 12th Gen Intel® Core™ processors, this micro-ATX motherboard delivers advanced performance, enhanced durability, and enterprise-grade features. With support for PCIe® 4.0 and DDR5 memory, the board offers lightning-fast data throughput and improved multitasking, making it ideal for performance-driven office builds or commercial applications. ASUS’ long-standing reputation for quality and its Corporate Stable Model (CSM) program ensures long-term availability and consistent support for IT departments.

Designed with reliability in mind, the ASUS PRO B760M-C-CSM features anti-sulfur resistors, corrosion-resistant stainless steel I/O panels, and a moisture-resistant PCB coating to ensure continued operation in challenging environments such as factories or internet cafés. ASUS LANGuard and ESD Guards offer robust protection against power surges and electrostatic discharge, further extending component lifespan and network stability. The board is also tested for 24/7 durability in temperatures up to 45°C and 80% relative humidity—perfect for mission-critical deployments and demanding usage scenarios.

• Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: A self-recovering BIOS
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®

• CPU:
  • Chipset: Intel® B760 Chipset
  • CPU Compatibility: Supports Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  • CPU Socket: LGA1700
  • 4 x DIMM slots, up to 192GB total
  • DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
  • Dual-channel architecture
  • Intel® Extreme Memory Profile (XMP) support
  •  2 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
  • 1 x PCIe 4.0/3.0 x16 slot
  • 2 x PCIe 3.0 x1 slots
  • Intel® Core™ Processors (14th & 13th & 12th Gen)*
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • 1 x Intel® 1Gb Ethernet
  • ASUS LANGuard
  • Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)*
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 2 x DisplayPorts
  • 1 x HDMI® port
  • 1 x VGA port
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard (purple) port
  • 1 x PS/2 mouse (green) port
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

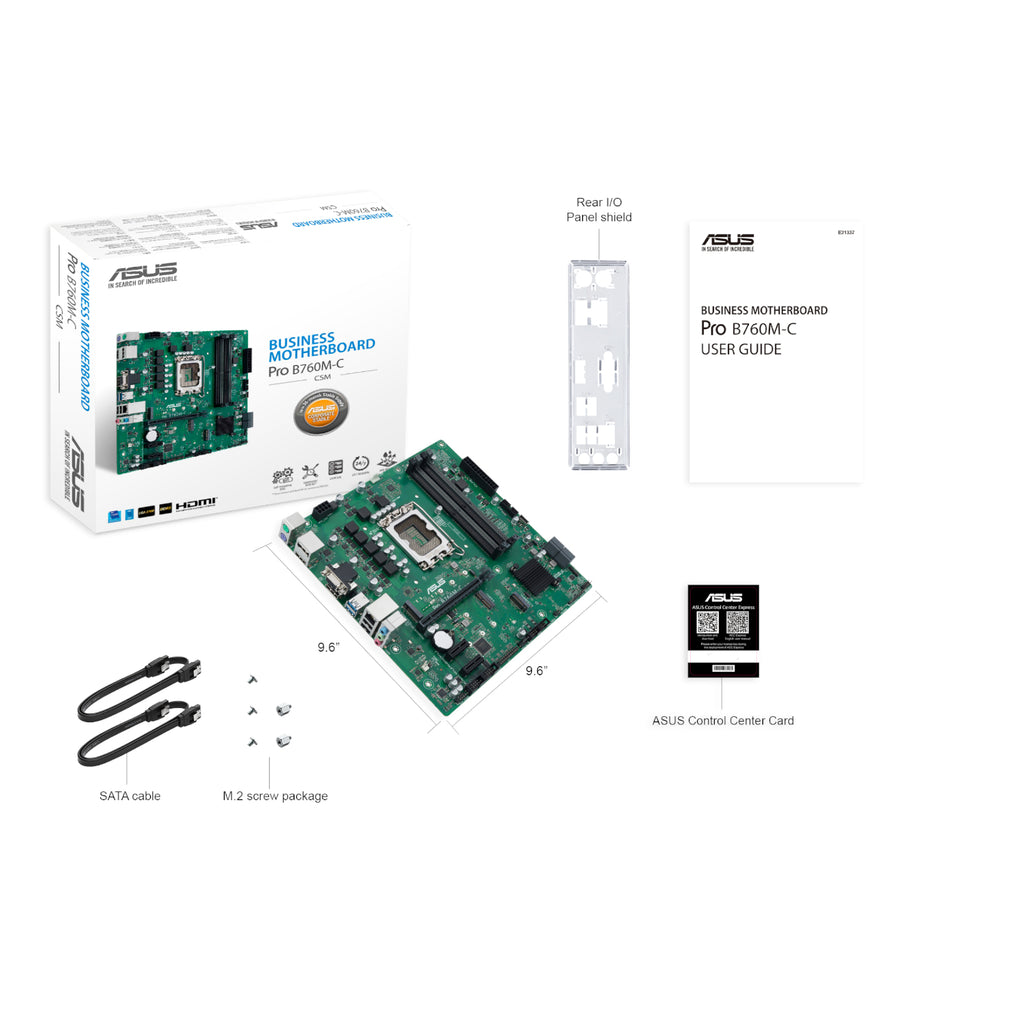

  • ASUS PRO B760M C CSM LGA 1700 M-ATX Motherboard x1
  • SATA 6Gb/s cables x2
  • I/O Shield x1
  • Screw package for M.2 SSD x1
  • Screw package for M.2 Key E x1
  • ACC Express Activation Key Card x1
  • User guide x1
