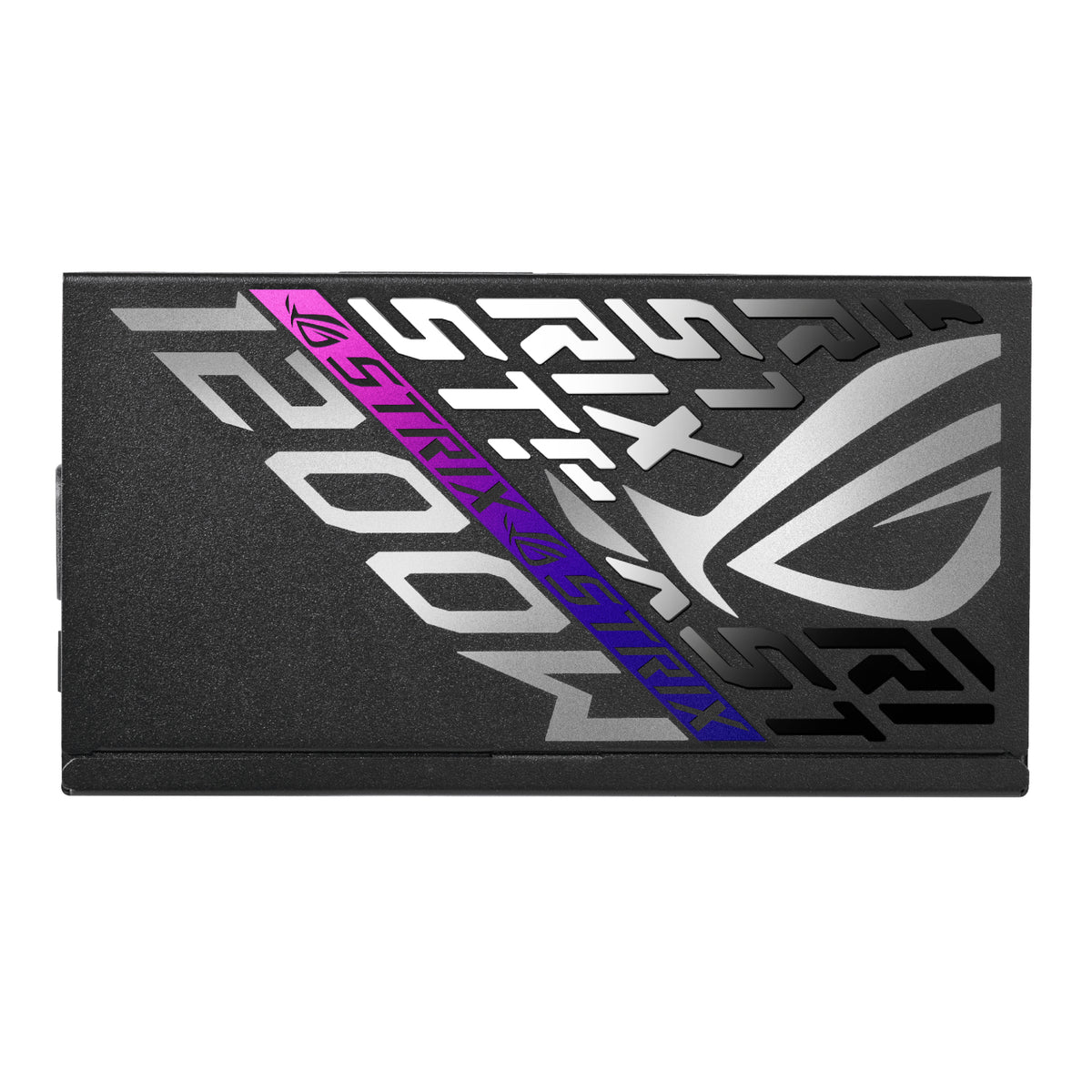

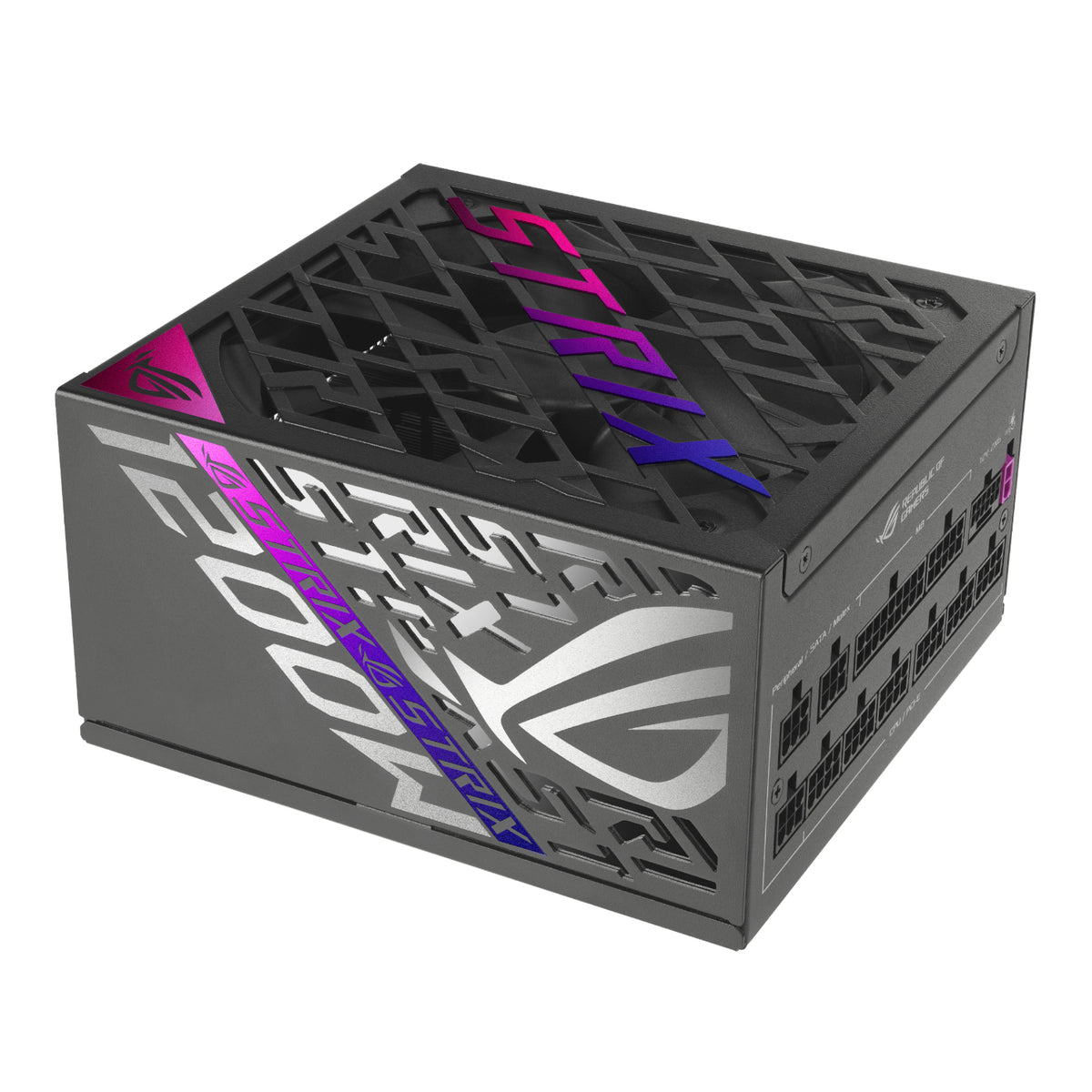

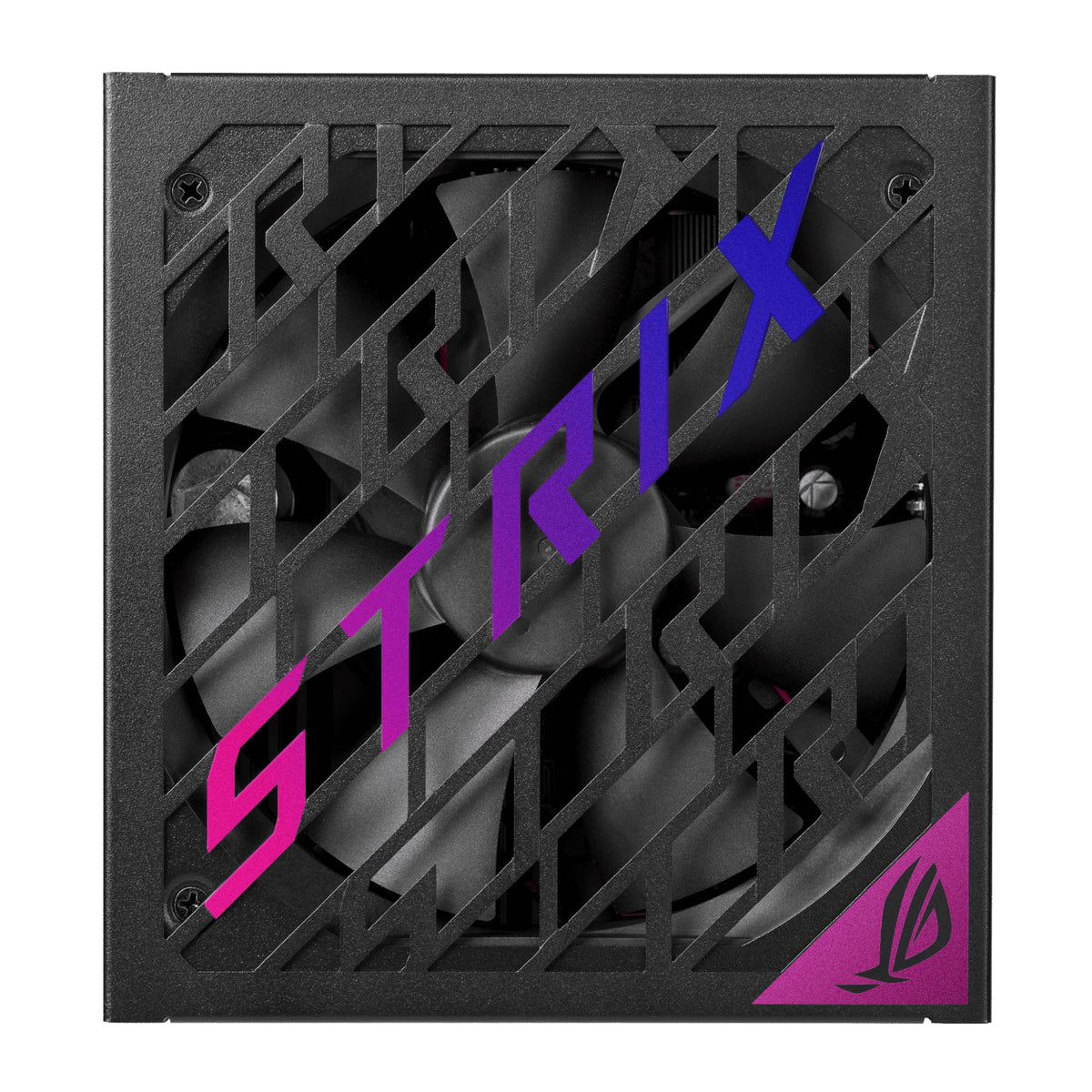

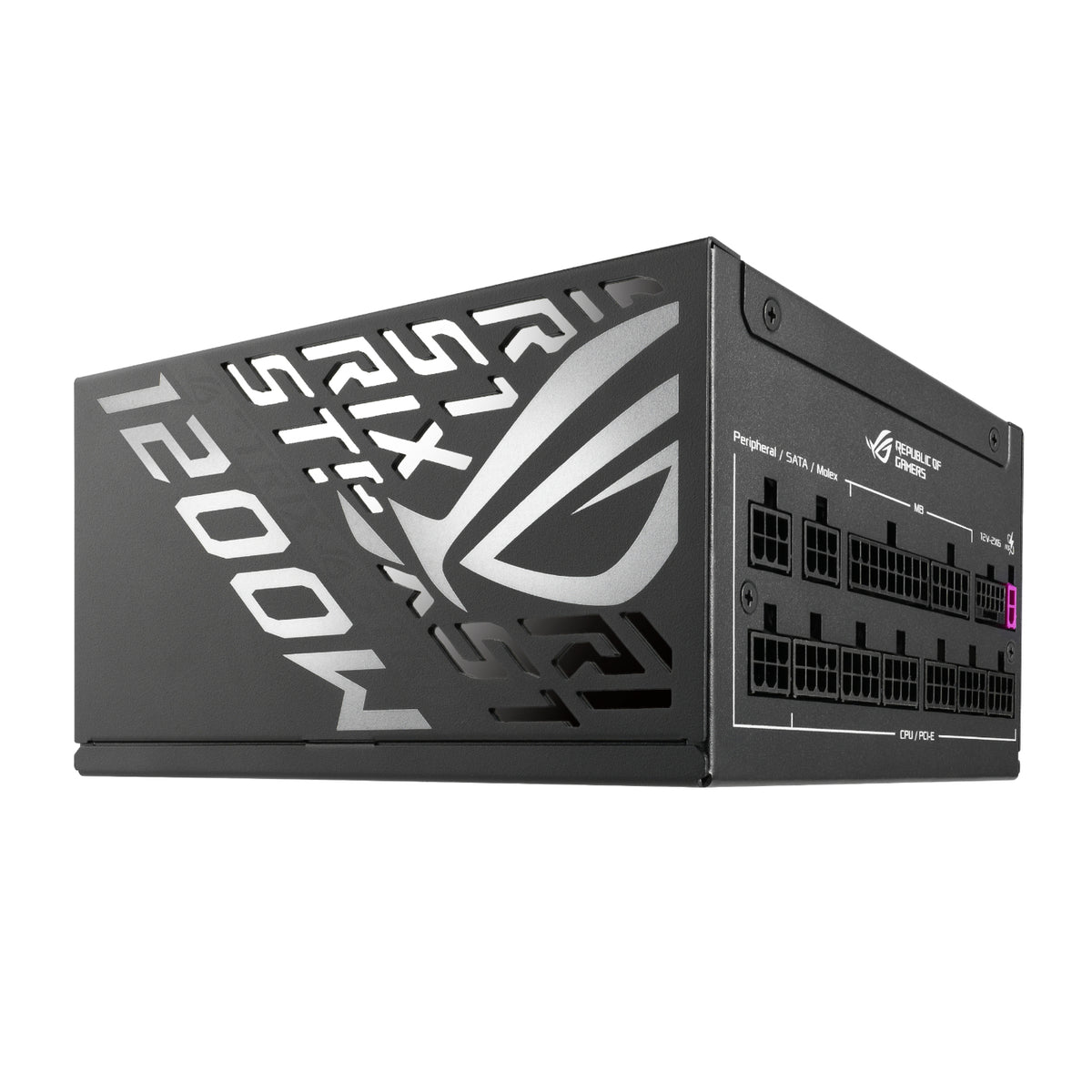

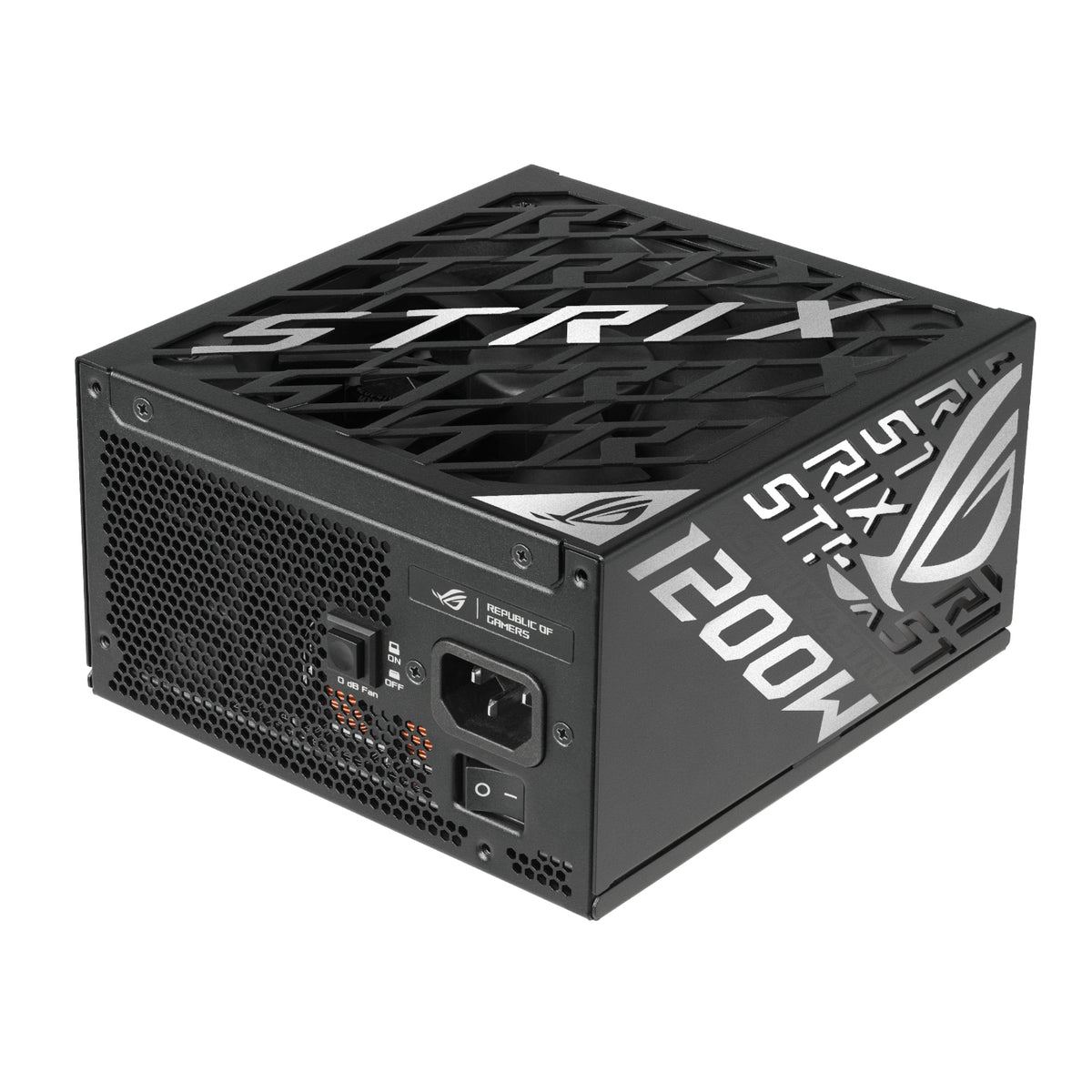

Asus ROG Strix 1200W 80 PLUS Platinum ATX Modular Power Supply

Quick Specs

• ATX 3.1 Compliant: Ensures enhanced voltage and current regulation for stable power delivery.
• PCIe 5.1 Ready: Features a 12V-2x6 connector, designed for next-gen graphics cards.
• Lambda A Certified: Operates quietly, maintaining noise levels below 25 dB.
• 80 PLUS Platinum: Delivers exceptional energy efficiency, reducing heat and costs.
• Comprehensive Protection: Protects components with OPP, OVP, UVP, SCP, OCP, and OTP.

Next-Gen Compatibility with ATX 3.1 & PCIe 5.1

Future-proof your system with the ROG Strix 1200W Platinum. Fully compliant with the latest ATX 3.1 standard and PCIe 5.1 ready, it features a native 12V-2x6 connector. This eliminates the need for adapter cables and simplifies your build by directly powering the most power-hungry, next-generation graphics cards. Invest in an Asus ROG Strix 1200W, and invest in tomorrow’s technology.

FEATURES:

• GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
• "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card.
• Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• 0dB technology lets you enjoy light gaming in relative silence.
• ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
• PCIe 5.1 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.
• Lambda A Certification: Certified low noise levels, below 25 dB
• 80 PLUS & Cybenetics Platinum certified: ROG Strix Platinum leverages low-ESR capacitors and premium components.
• 10-year warranty included.

SPECIFICATIONS:

• Form Factor: ATX12V
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Efficiency: 80 Plus Platinum
• MTBF: >120,000 hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 25A 25A 100A 0.3A 3A
• Combined Load: 130W 130W 1200W 3.6W 15W
• Total Output: 1200W
• Cable Connectors
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 16-pin x 1 (both PSU & component side)
  • PCI-E 6+2-pin x 4
  • SATA x 6
  • PERIPHERAL x 3
• Product Dimensions: 16 x 15 x 8.6 cm
• Product Weight: 1840g

WHAT'S IN THE BOX:

• Asus ROG Strix 1200W 80 PLUS Platinum ATX Modular Power Supply x1
• Power Cord x 1
• Motherboard Power Cable x 1
• CPU Cable x 2
• PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1
• PCI-E (8-pin-to-6+2pin) Cable x 4
• SATA 1-to-3 Cable x 2
• Peripheral 1-to-3 Cabel x 1
• ROG Strix DIY sticker x 1
• User Manual x 1
