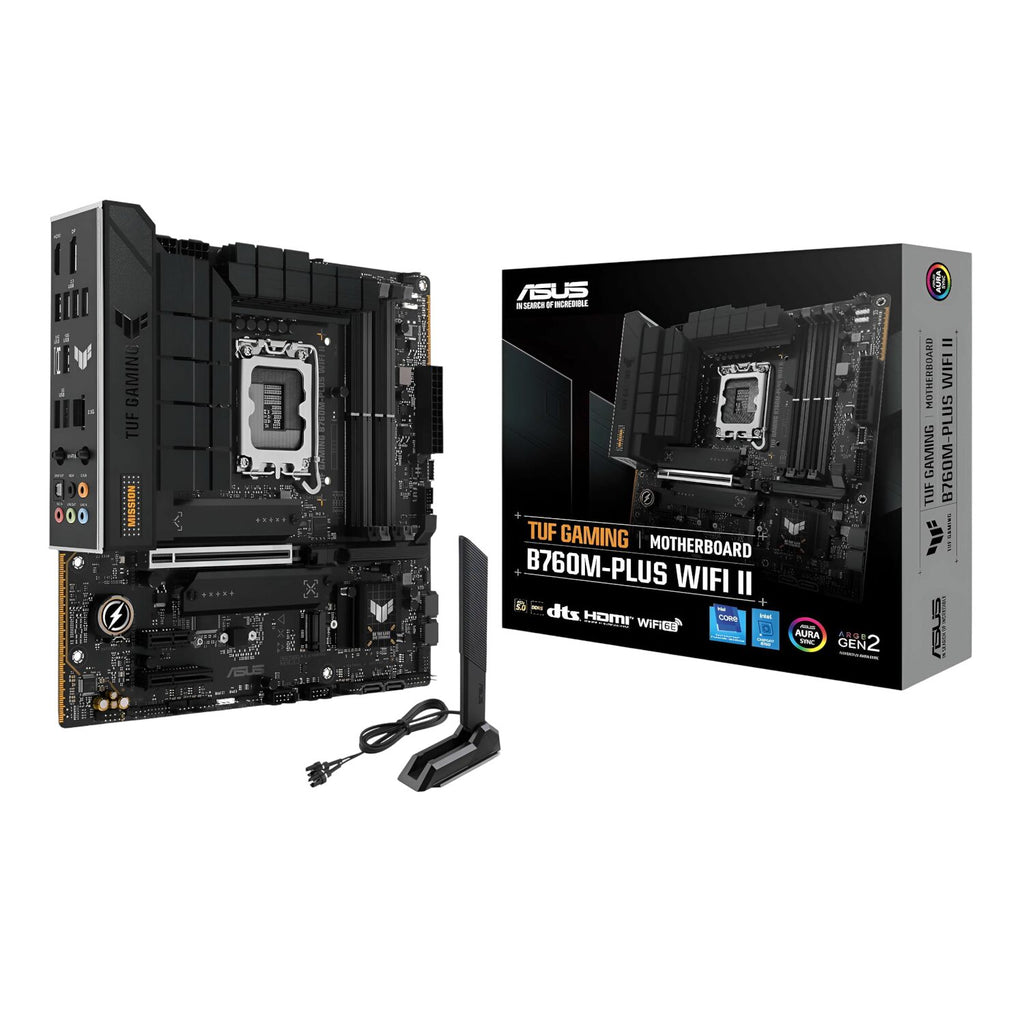

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard
Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard
Warranty

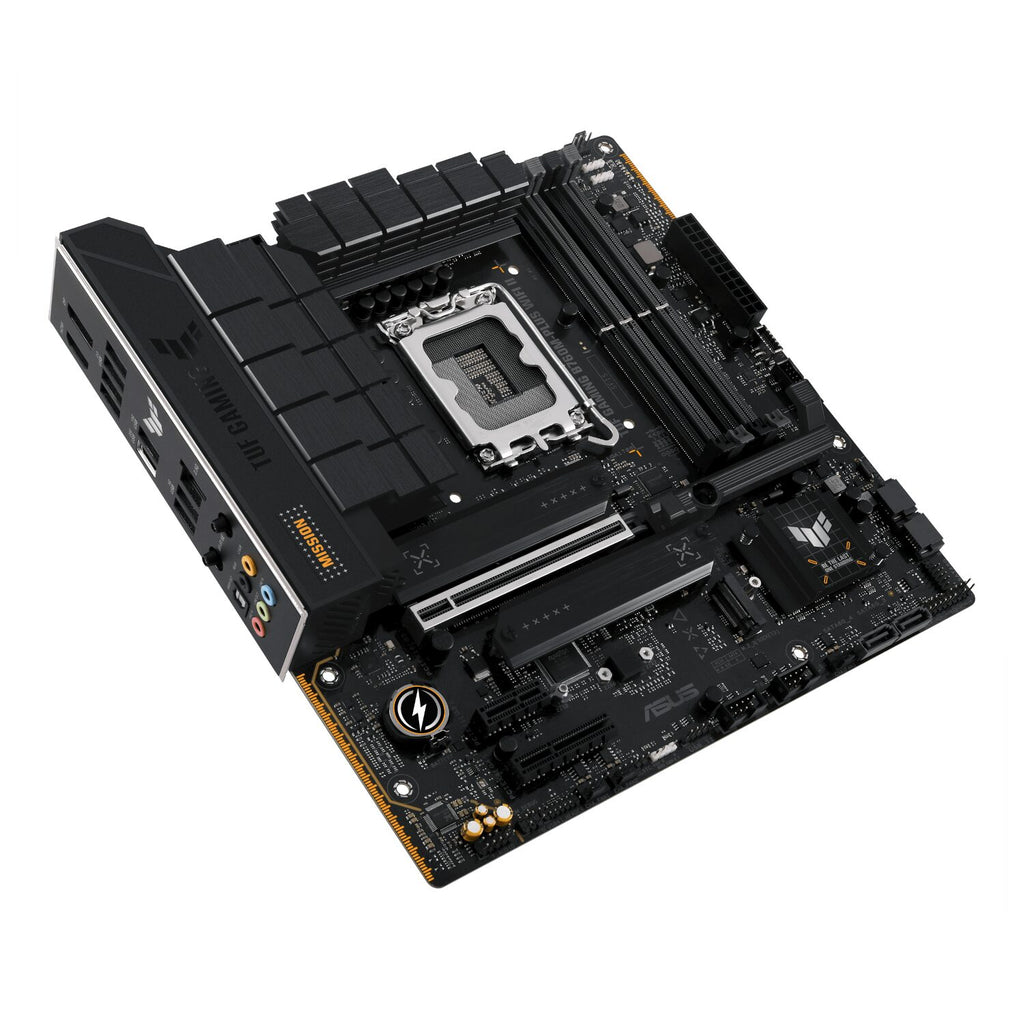

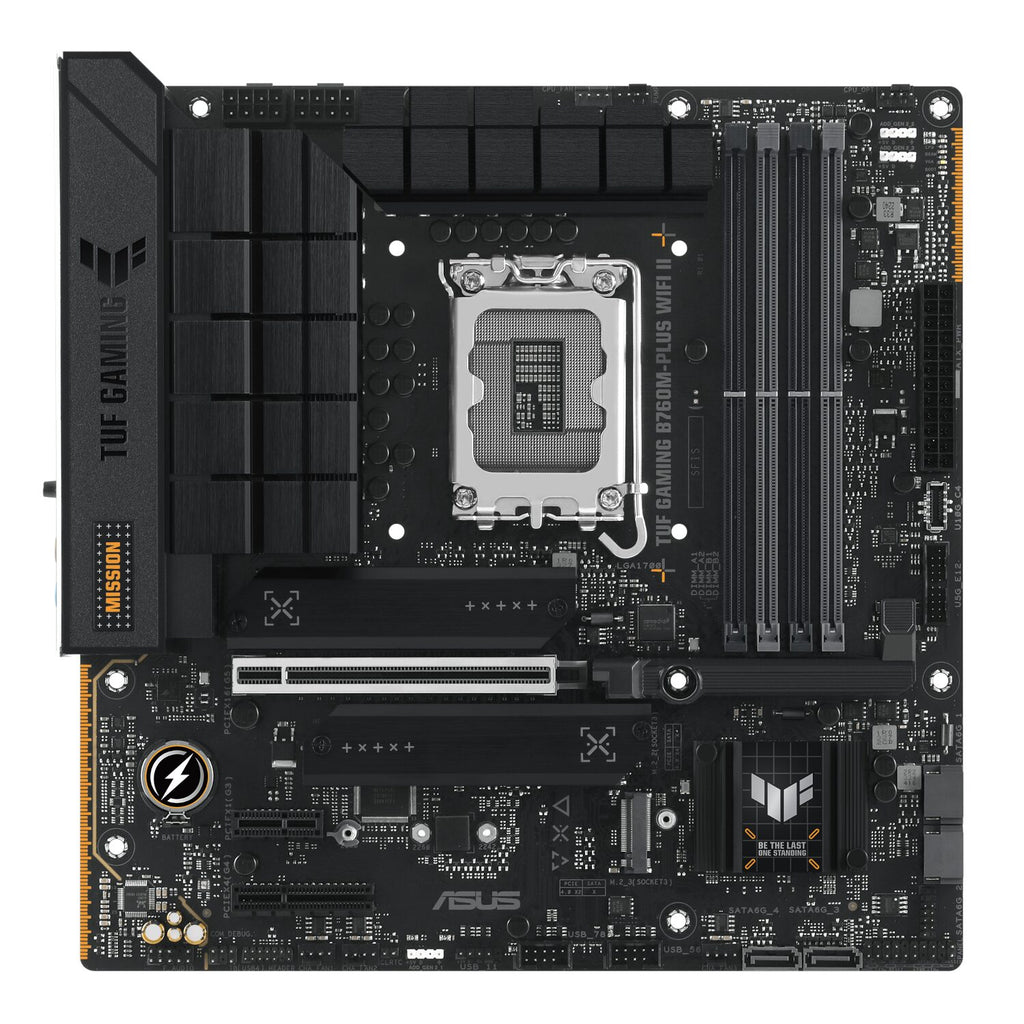

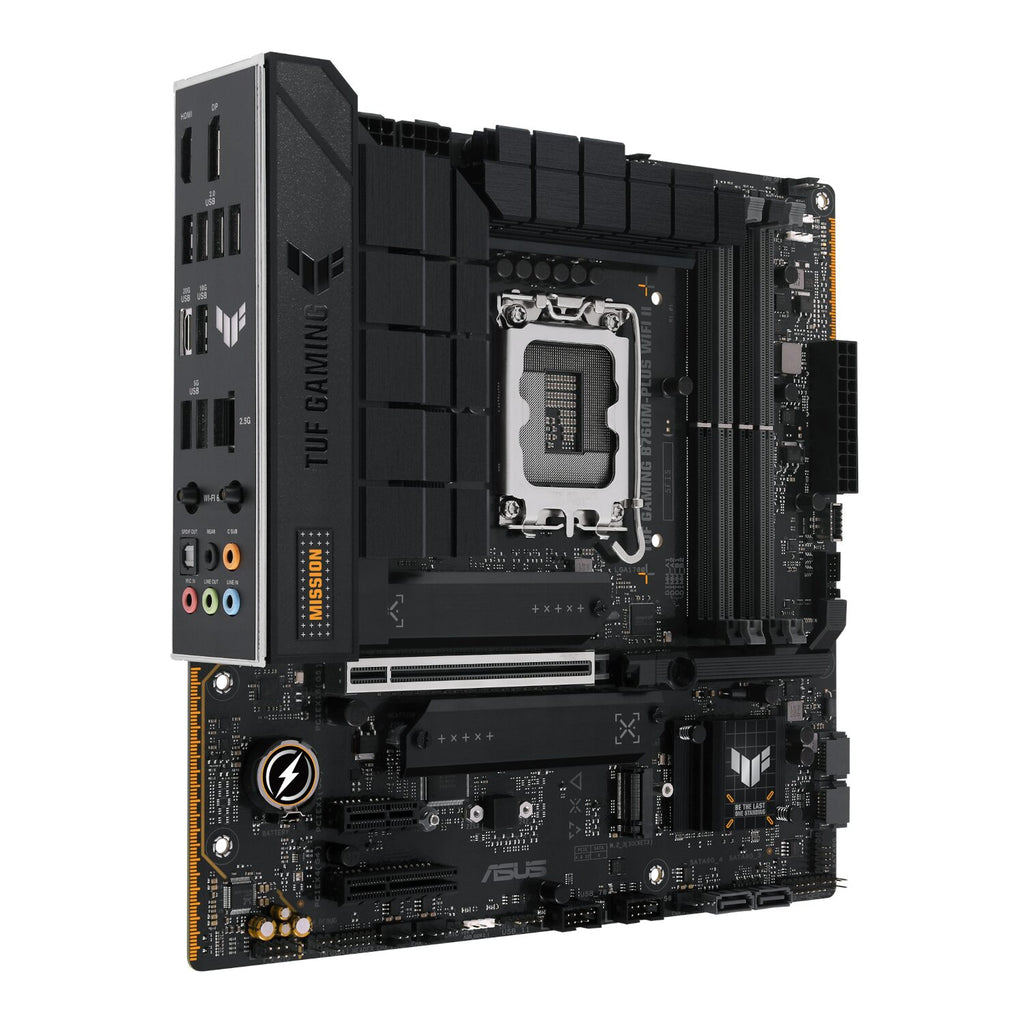

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core™ processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.
At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.
- 4 x DIMM slots, up to 192GB total
- DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz
- Dual-channel architecture
- Intel® Extreme Memory Profile (XMP) support
- 1 x DisplayPort
- 1 x HDMI™port
- Intel® CoreTM Processors (14th & 13th & 12th Gen)*
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 3.0 x1 slot
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
- 2x2 Wi-Fi 6E (802.11ax)
- Bluetooth® v5.3 (2.4/5/6GHz)
- Rear USB (Total 8 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 5 additional USB 2.0 ports
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-bit/192 kHz playback
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

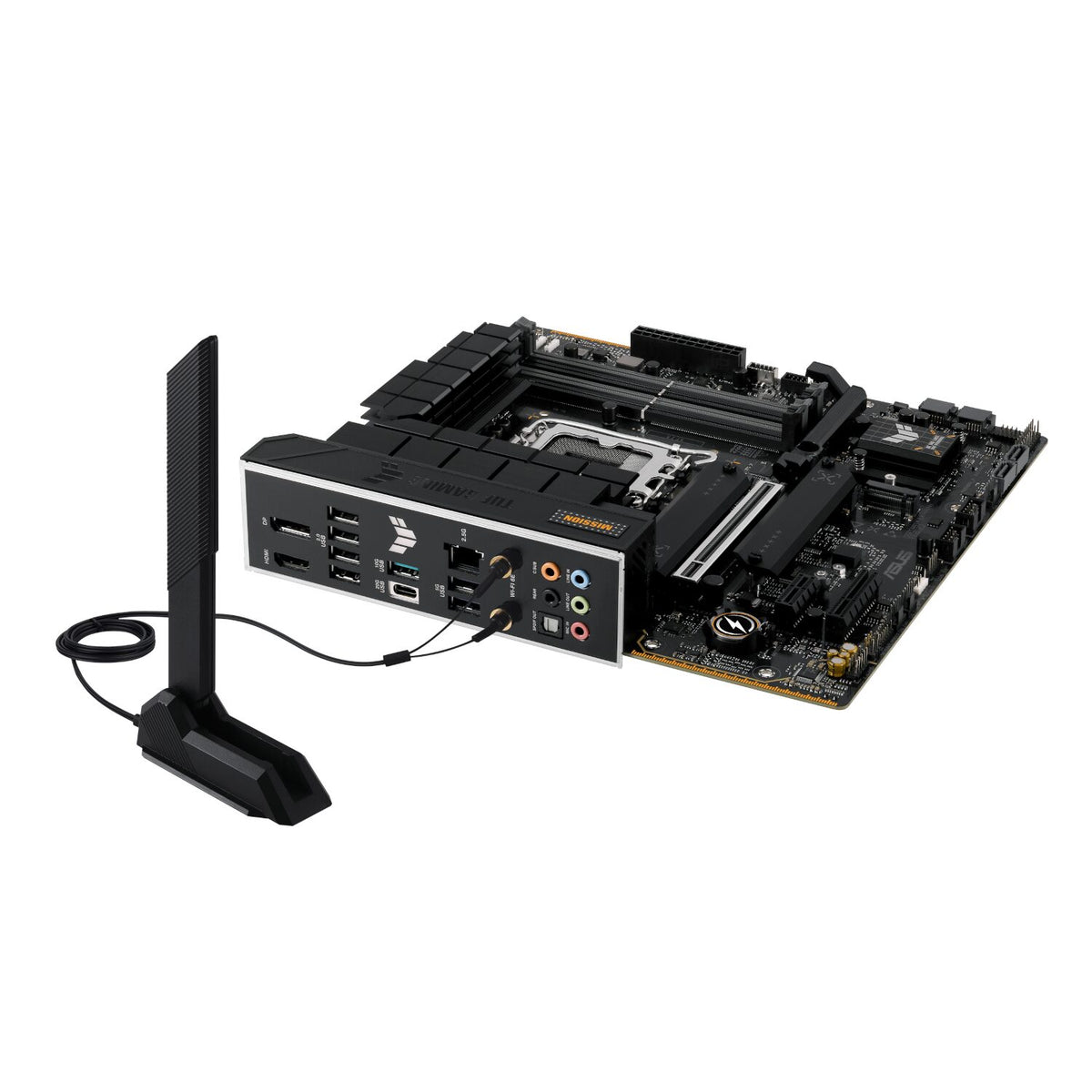

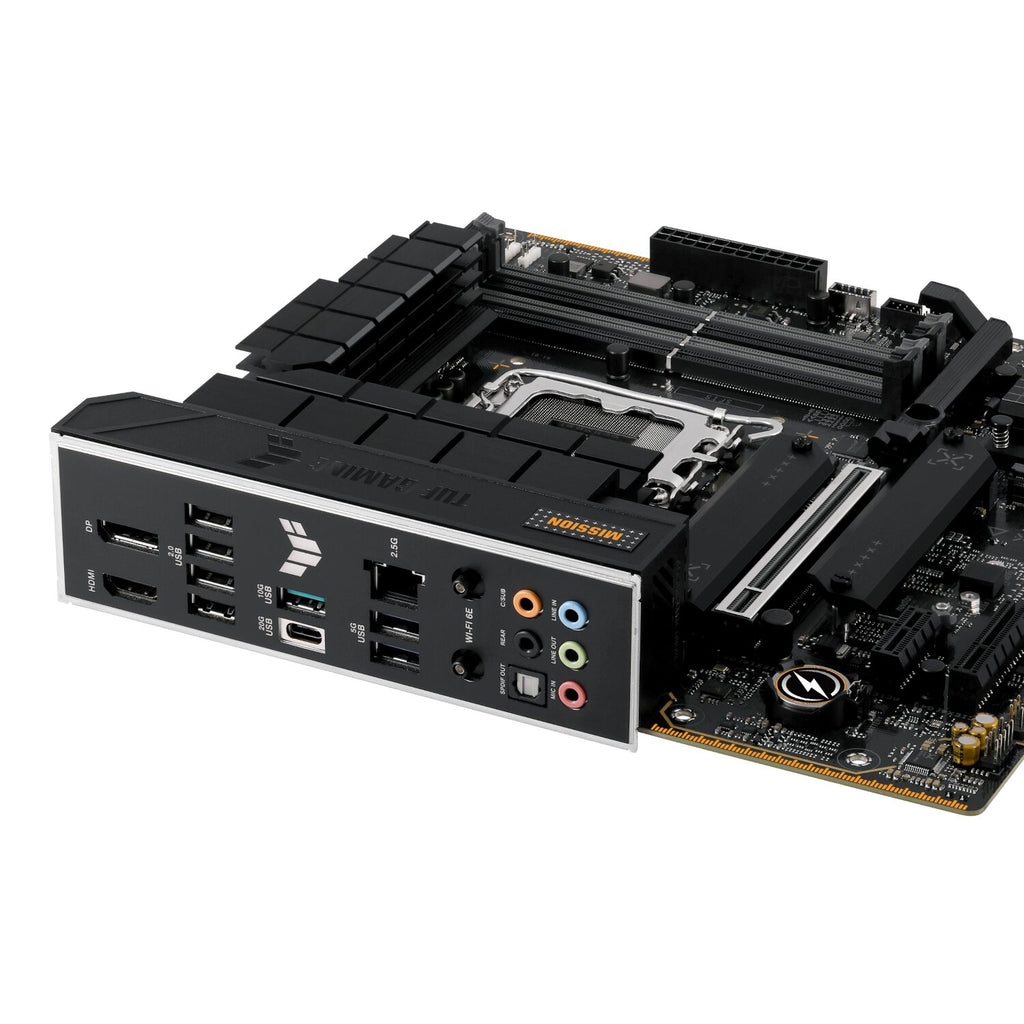

- 1 x USB 20Gbps port (1 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- I/O Connectors Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connectors
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 10Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 5 additional USB 2.0 ports
- 3 x Addressable Gen 2 headers
