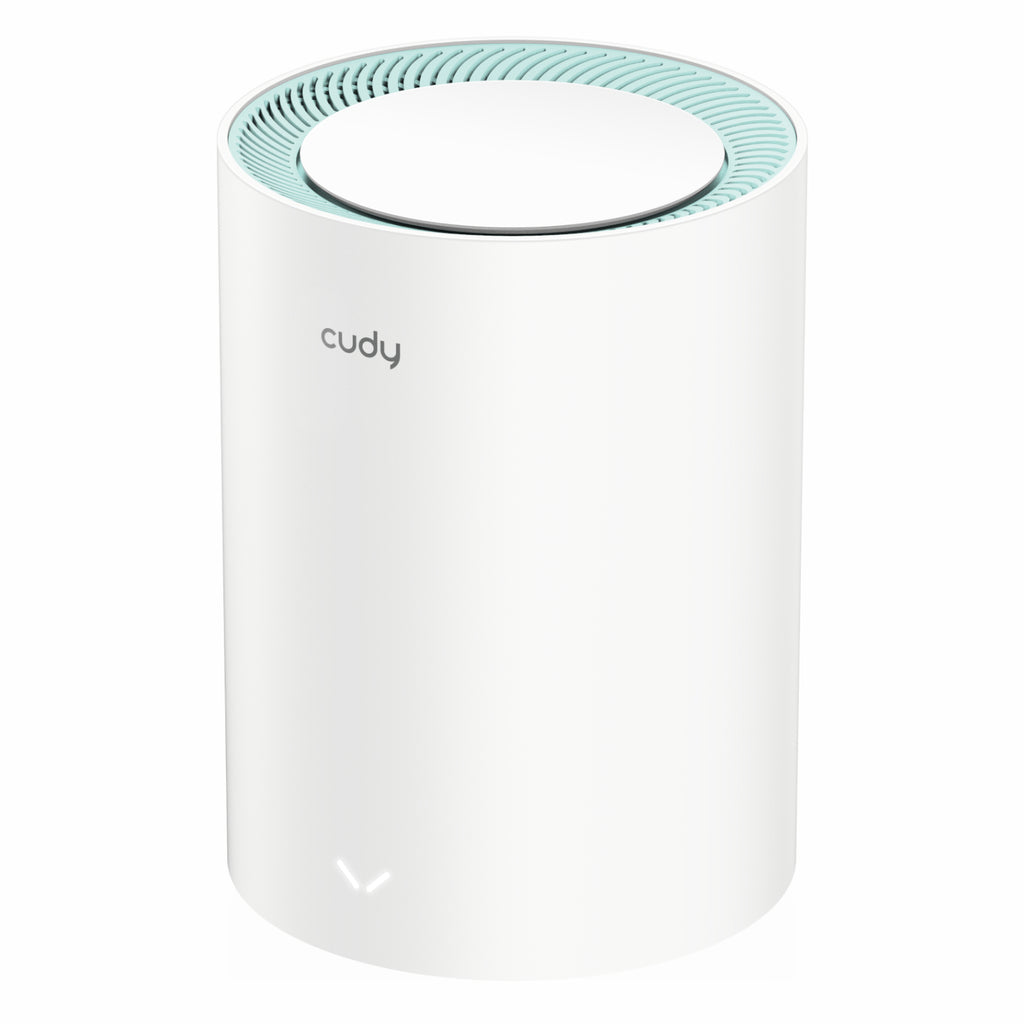

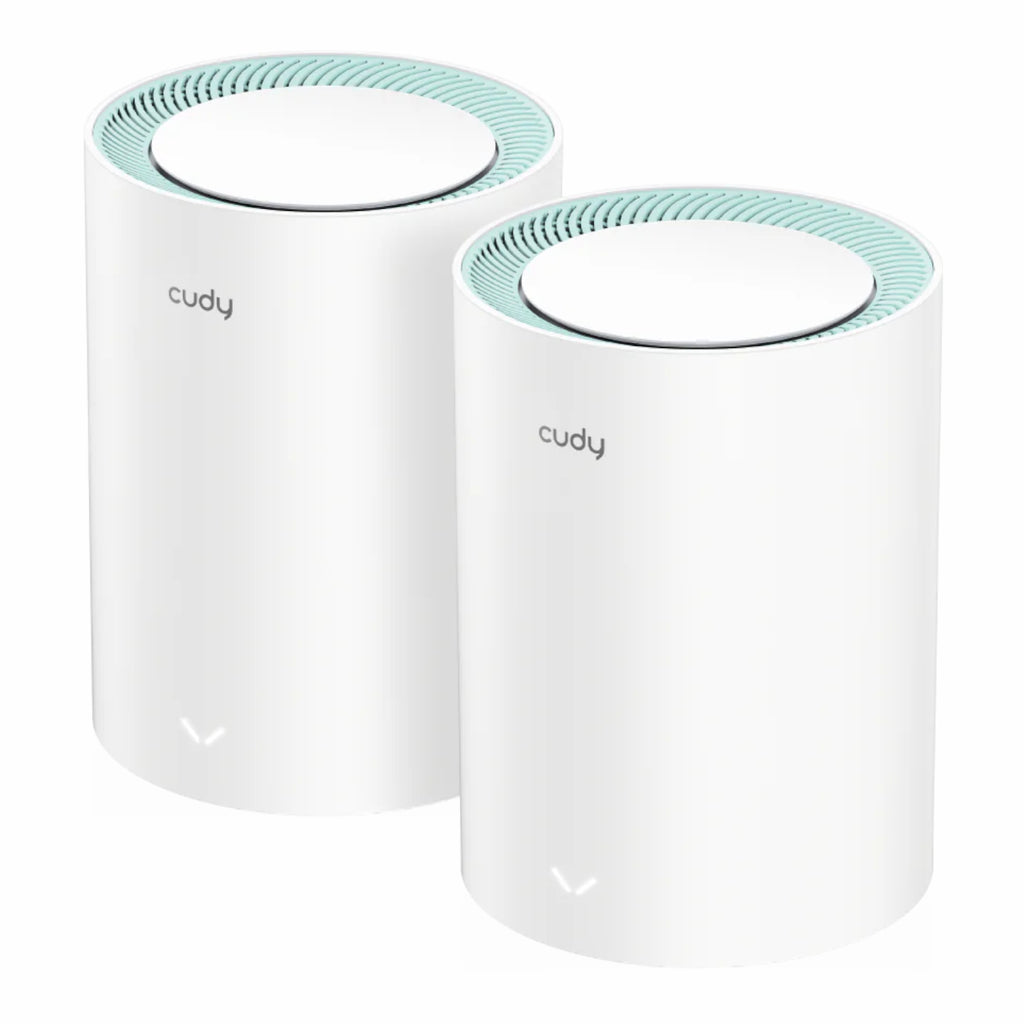

Cudy AX1500 Gigabit Mesh Wi-Fi 6 System – 2 Pack

Quick Specs

• Experience seamless connectivity with Wi-Fi 6 (802.11ax) for faster, more efficient wireless networking.
• Cover your home more effectively with up to 170 m² per unit using a dual-node Cudy Mesh system.
• Connect more devices, up to 128 in total, without compromising speed or stability.
• Enjoy swift data transfers with a 1 GHz single-core CPU (per unit) and 128 MB of RAM for robust performance per unit.
• Set up your network effortlessly with the intuitive Cudy App and cloud management.

Features

• Achieve lightning-fast speeds of up to AX1500 per unit (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz) with Wi-Fi 6 technology for superior performance..
• Two-node Cudy Mesh system for broader, more reliable whole-home coverage than a single unit.
• Benefit from seamless roaming as Cudy Mesh automatically connects your devices to the strongest signal, ensuring uninterrupted internet access.
• Stream, game, and work without interruption thanks to the robust 1 GHz single-core CPU and 128 MB RAM per unit, built for demanding network traffic.
• Manage your network with ease using the Cudy App and Cloud Control, offering convenient setup, monitoring, and firmware updates.
• Connect your devices reliably with WPA/WPA2/WPA3 security protocols, safeguarding your network from unauthorized access.
• Utilise versatile operation modes, including Router, Access Point, Range Extender, WISP, and Client to adapt the system to your unique networking needs.

Specifications

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• 4 GHz Wi-Fi Speed: 300 Mbps (per unit)
• 5 GHz Wi-Fi Speed: 1201 Mbps (per unit)
• Wi-Fi Streams: 2T2R (2×2 MIMO) for both bands
• Wi-Fi Security: WPA/WPA2/WPA3
• Max Wi-Fi Channel Width: 80 MHz
• Operation Modes: Router / Access Point / Range Extender / WISP / Client
• Mesh System: Dual-node Cudy Mesh seamless roaming
• Mesh Backhaul: Wireless & Wired multi-band
• Fast Roaming: Yes
• Chipset: RTL8197H (per unit)
• CPU: 1 GHz Single-Core (per unit)
• RAM: 128 MB DDR3 (per unit)
• Flash/ROM: 16 MB (per unit)
• Ethernet Ports: 3 × Gigabit RJ45 (1 WAN + 2 LAN)
• Antennas: 2 × Internal (per unit)
• 4 GHz Antenna Gain: 4.41 dBi (per unit)
• 5 GHz Antenna Gain: 5.56 dBi (per unit)
• Recommended Device Limit: 60 devices
• Max Supported Devices: 128 (system total)
• App Control: Cudy App + Cloud Control
• Power Input: 12V 1A DC (per unit)
• Max Power Consumption: 10W (per unit)
• LED Indicators: System status
• Physical Buttons: WPS, Reset
• Installation: Desktop
• Dimensions: 11 × 11 × 15 cm

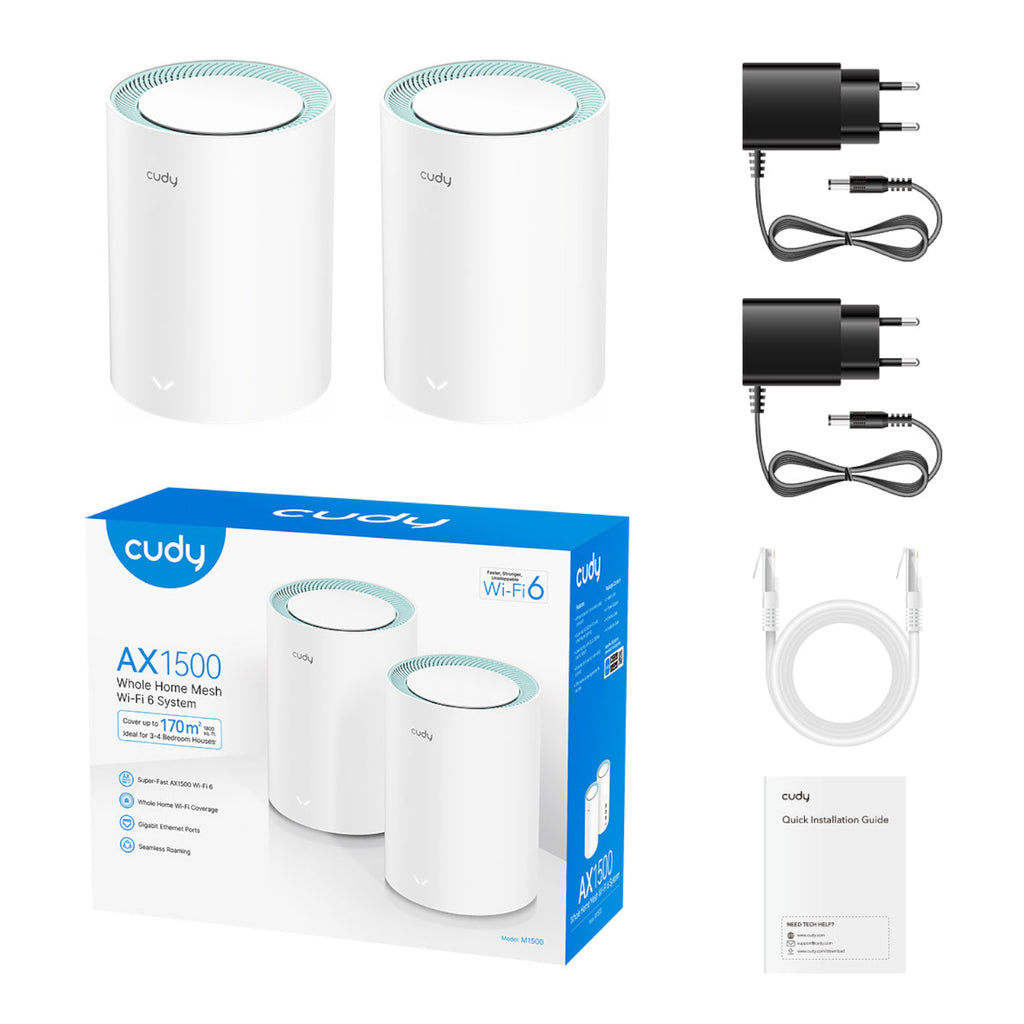

What's in the Box

• Cudy AX1500 Gigabit Mesh Wi-Fi 6 System (M1500) – 2-Pack ×1
• Power Adapter ×2
• Ethernet Cable × 1
• User Manual ×1
