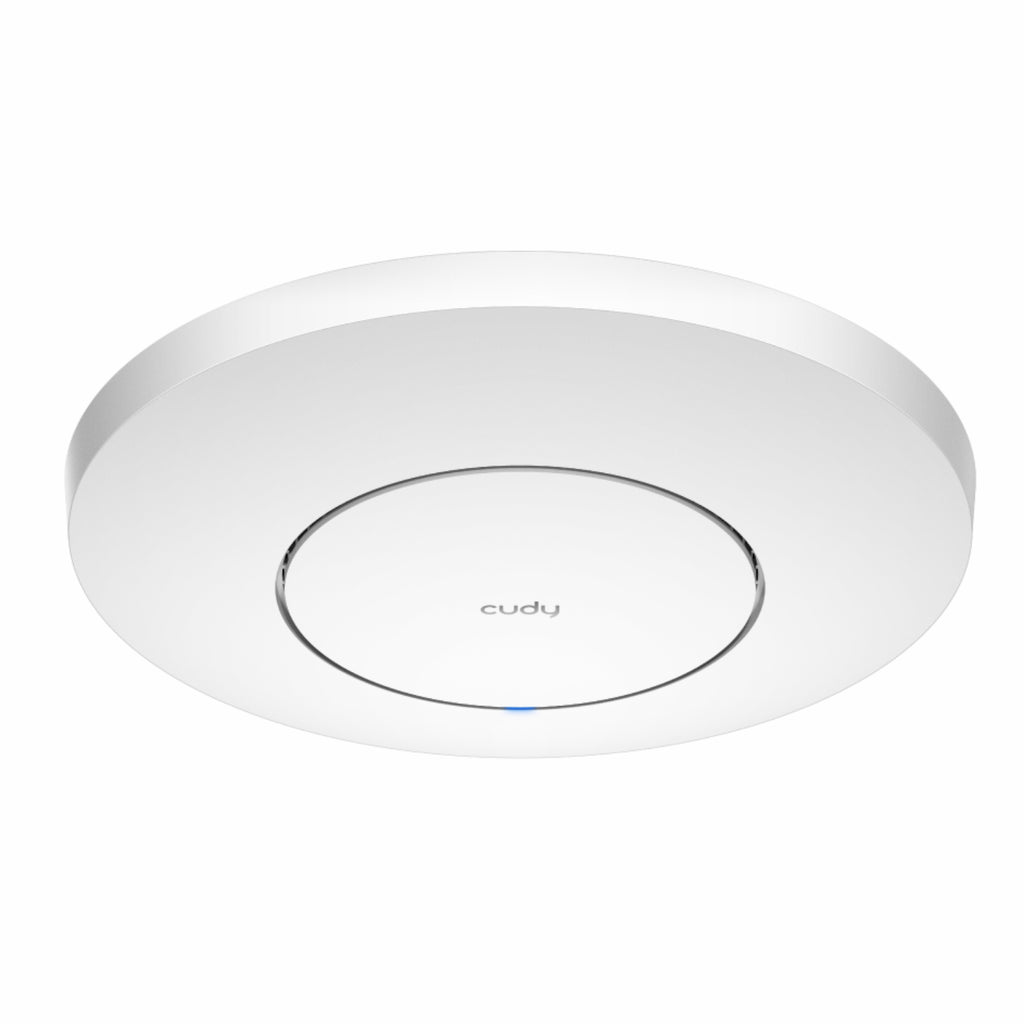

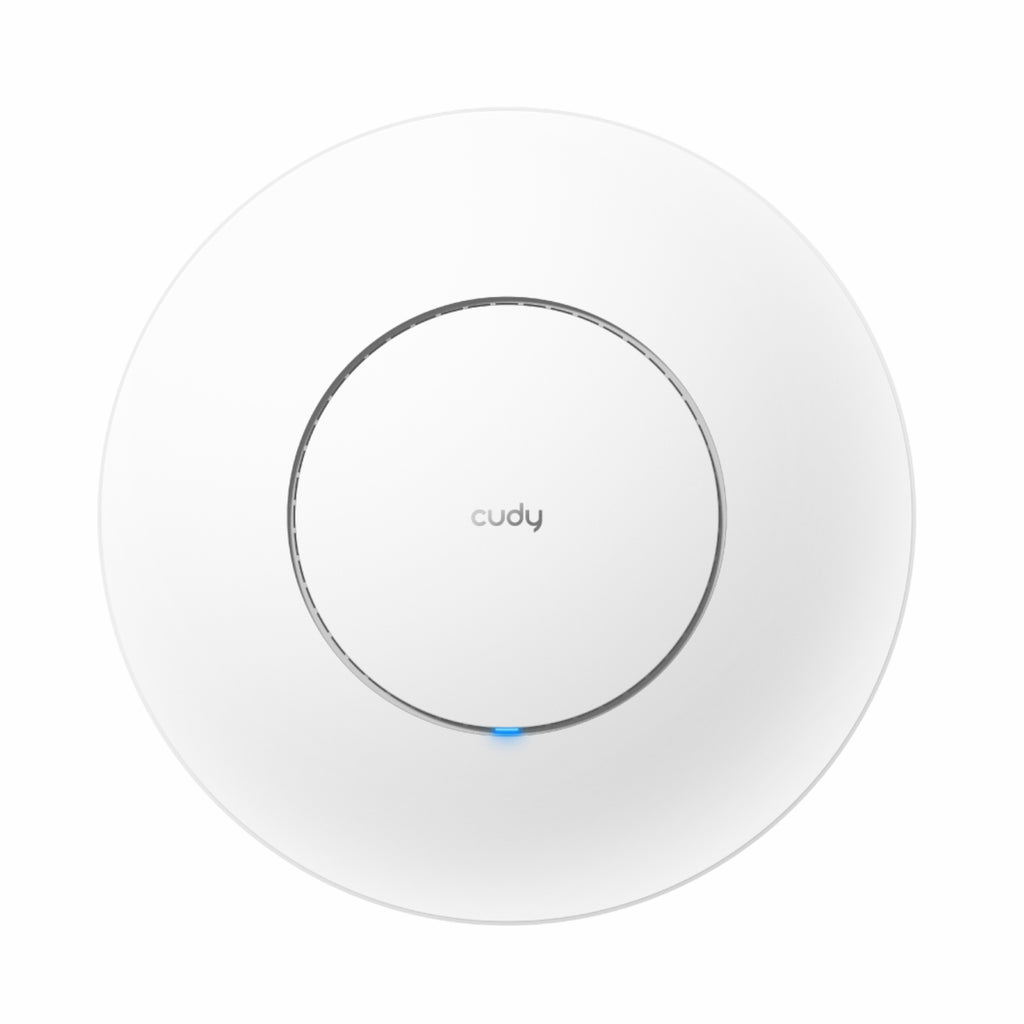

Cudy BE3600 2.5G Dual Band WiFi7 Ceiling Access Point

Quick Specs

• Experience unparalleled speeds with Wi-Fi 7 technology, delivering up to 3570 Mbps across dual bands.
• Connect over 500 devices simultaneously with robust support for high-density environments.
• Benefit from enhanced coverage up to 120 m² with a maximum range of 220 m.
• Ensure seamless connectivity with advanced Wi-Fi efficiency features like MLO, OFDMA, and MU-MIMO.
• Integrate effortlessly into your existing network with a 2.5G Ethernet port and PoE support.

Transform your workspace with next-generation connectivity: the Cudy BE3600 Wi-Fi 7 Ceiling Access Point

Designed for the demands of modern South African businesses, the Cudy BE3600 is not merely an access point; it is the foundation for a superior network. Whether your environment is a bustling office, a sprawling campus, a busy shopping mall, or any space requiring robust connectivity for a high number of users, this Cudy PoE access point is engineered to perform. It addresses the critical need for speed, capacity, and reliability, ensuring that every user experiences seamless internet access. Forget the limitations of older Wi-Fi standards; this dual-band access point is built for the future, capable of handling the most data-intensive applications and the ever-increasing number of connected devices. The seamless integration of its PoE capabilities simplifies deployment, offering a clean and efficient network setup.

Features

• Experience blistering fast Wi-Fi 7 speeds with up to 3570 Mbps for lag-free streaming, gaming, and critical business operations.
• Support over 500 devices simultaneously, ensuring every user and IoT device maintains a stable connection in high-density areas.
• Achieve exceptional network coverage of up to 120 m² and a range of 220 m, eliminating dead zones in your workspace.
• Leverage advanced Wi-Fi 7 features like MLO and OFDMA to maximize network efficiency and reduce latency for all connected devices.
• Simplify deployment with flexible wall or ceiling mounting options and Power over Ethernet (PoE) support for streamlined installation.
• Ensure network security with WPA3 encryption and robust firewall protection to safeguard your business data.
• Benefit from advanced QoS to prioritize critical traffic, ensuring smooth performance for essential applications.
• Integrate seamlessly with the Cudy Mesh system for easy network expansion and unified management.

Specifications

• Product Type: Indoor wall/ceiling Wi-Fi access point
• Primary Use: Offices, malls, campuses, and high-density spaces
• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Wi-Fi Bands: Dual-band (2.4 GHz + 5 GHz)
• Total Wi-Fi Throughput: Up to 3570 Mbps
• 5 GHz Wi-Fi Speed: 2882 Mbps
• 4 GHz Wi-Fi Speed: 688 Mbps
• Max Channel Width: 160 MHz
• Max Modulation: 4K-QAM
• Wi-Fi Efficiency: OFDMA, MU-MIMO, MLO
• Beamforming: Supported
• Mesh System: Cudy Mesh compatible
• Mesh Backhaul: Wireless and wired
• Recommended Devices: Up to 200
• Coverage Area: Up to 120 m²
• Max Range: 220 m

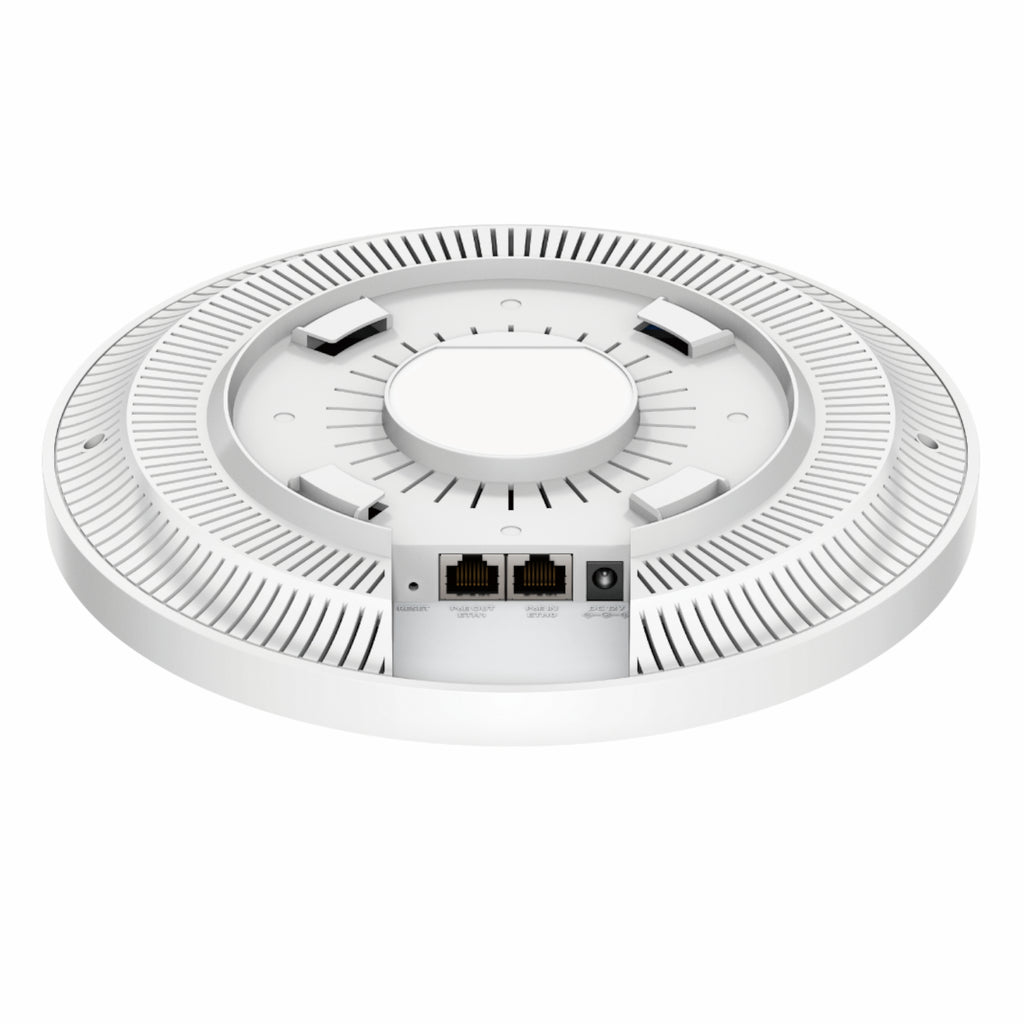

• 5G Ethernet Ports: 1 (PoE IN, shielded)
• Gigabit Ethernet Ports: 1 (PoE OUT, shielded)
• PoE Support: IEEE 802.3at/af + passive PoE
• Power Input: DC jack or PoE via Ethernet
• Max Power Consumption: 10 W
• Operating Modes: Router, access point, or mesh node
• Wi-Fi Security: WPA/WPA2/WPA3
• VLAN Support: Yes
• Captive Portal: Supported
• DNS over TLS: Supported
• Reliability: Hardware watchdog
• ESD Protection: 4 kV contact / 8 kV air
• Operating Temperature: 0–40 °C
• Certifications: FCC, CE

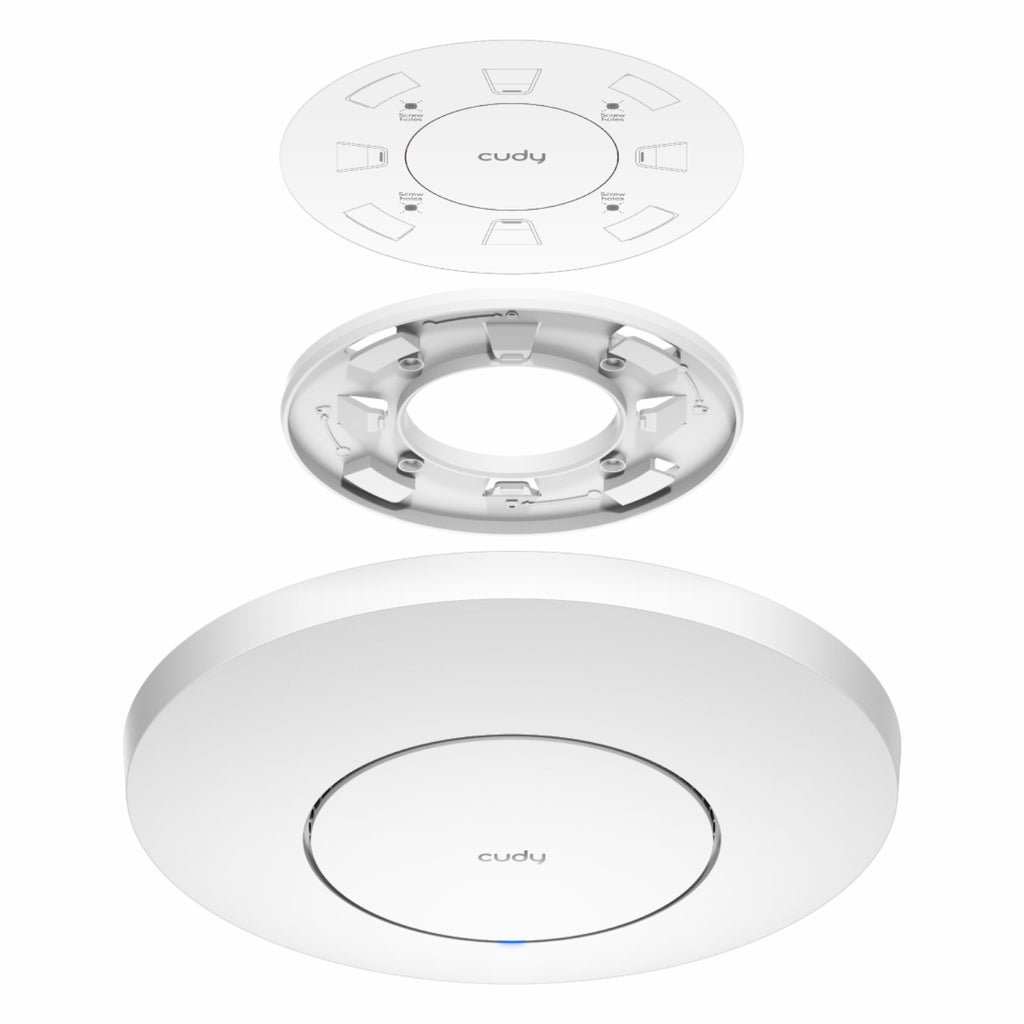

• Installation: Wall mount or ceiling mount
• Package Dimensions: 31 × 24 × 7 cm

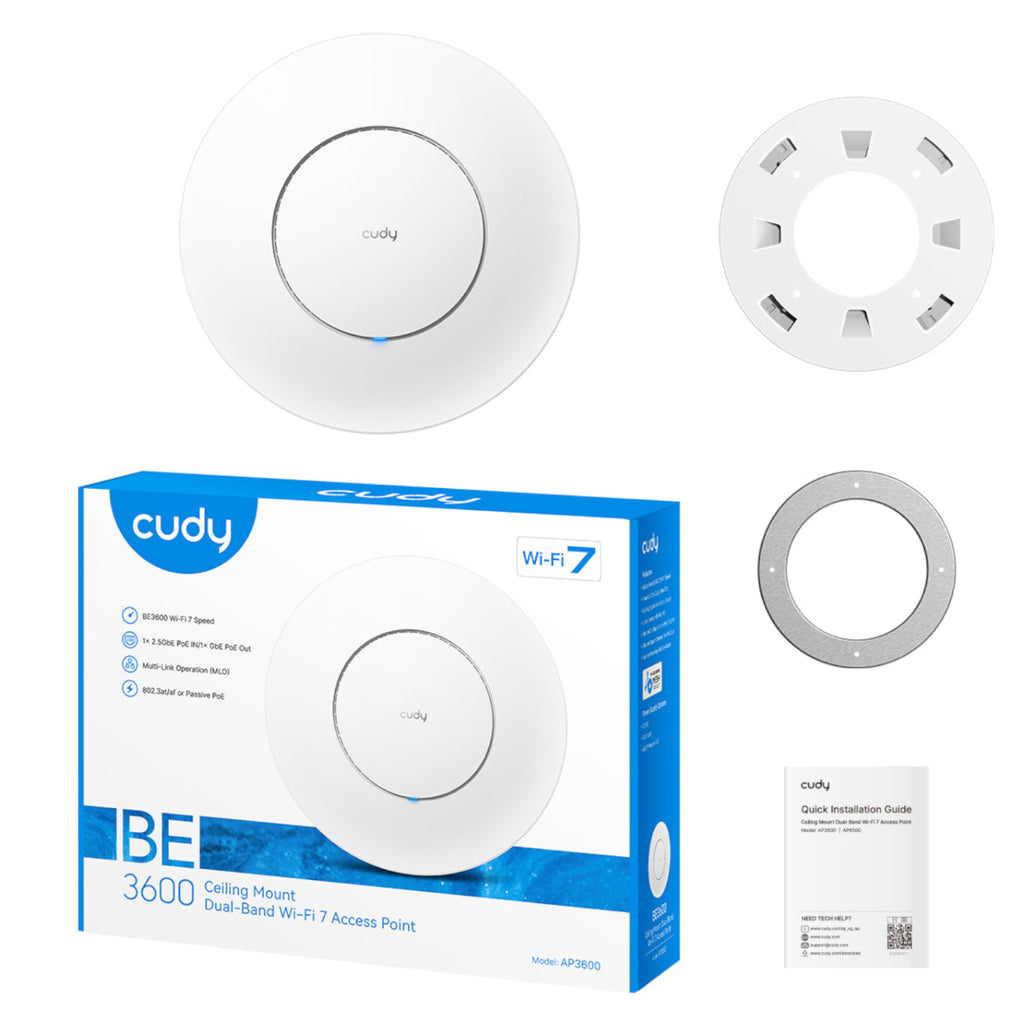

What's in the Box

• Cudy BE3600 2.5G Dual Band WiFi 7 Ceiling Access Point x 1
• Mounting Kit x 1
• Ethernet Cable x 1
• User Manual x 1
