Cudy BE3600 Gigabit Mesh Wi-Fi 7 System – 2 Pack

Quick Specs

• Achieve blazing-fast speeds with Wi-Fi 7 technology, offering up to 2880 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band.
• Cover up to 200 m² with a single unit, ensuring a robust and stable connection throughout your home.
• Benefit from a powerful 2.0 GHz Quad-Core processor for smooth, uninterrupted network performance.
• Enjoy simple setup and management with an intuitive interface designed for everyday users.
• Connect multiple devices simultaneously without compromising speed or stability, thanks to advanced MU-MIMO technology.

Effortless connectivity for the modern South African home

The Cudy BE3600 Gigabit Mesh Wi-Fi 7 System is engineered for those who demand uninterrupted, high-speed internet across their entire living space. Designed for the discerning user who values both performance and simplicity, this home mesh network system eliminates the frustration of dead zones and buffering. Whether you are streaming 4K content, engaging in intensive online gaming, or handling critical video conferences for work, the BE3600 ensures a stable and robust connection. Its clean design and efficient operation make it an unobtrusive yet powerful addition to any home, providing the foundation for a truly connected lifestyle.

FEATURES:

• 4-Stream Dual-Band Wi-Fi 7
• 2882 Mbps + 688 Mbps Wi-Fi
• 3× Gigabit Ethernet Ports
• 200 Connected Devices
• Cudy Mesh, VPN Server and Client
• Cudy App, Cloud Control
• Dual Pack Mesh Units

SPECIFICATIONS:

• CPU
  • Chipset: BCM6764
  • CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
• Memory/Storage:
  • Flash/ROM: 128 MB (1 Gbit) NAND
  • DDR/RAM: 512 MB (4 Gbit) DDR3L
• Interfaces:
  • Gigabit RJ45 Ports: 3
  • Ethernet Notes: 1x WAN port, the rest are LAN ports
  • LED: System | Speed/Link/ACT of Ethernet Port
  • Physical Buttons: WPS Button | Reset Button
  • Power Input: DC Jack
• Wireless:
  • 5 GHz Wi-Fi Speed: 2880 Mbps
  • 2.4 GHz Wi-Fi Speed: 688 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 4× Fixed
  • 5 GHz Antenna Gain Max: 5.5dBi
  • 2.4 GHz Antenna Gain Max: 5.4dBi
  • FEM or PA/LNA: 5 GHz: 2× External | 2.4 GHz: 2× Internal
  • Beamforming: True
  • Range Performance: Max: 220 m (722 ft) | Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
  • Wall Performance: Two wooden walls with thickness < 10 cm (4”) | One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)
  • Multi-Pack Indoor Coverage: 2 Pack: 200 m² (2150 sq ft) | 3 Pack: 270 m² (2900 sq ft) | Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
• Power:
  • Power Methods: DC
  • DC: 12V 1A
  • Power Adapter: Input: 100~240 V, 50/60 Hz AC | Output: 12V 1A DC
  • Max Power Consumption: 9W
• Environment:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
• Installation: Desktop
• Product Dimensions: Φ11×15.5 cm

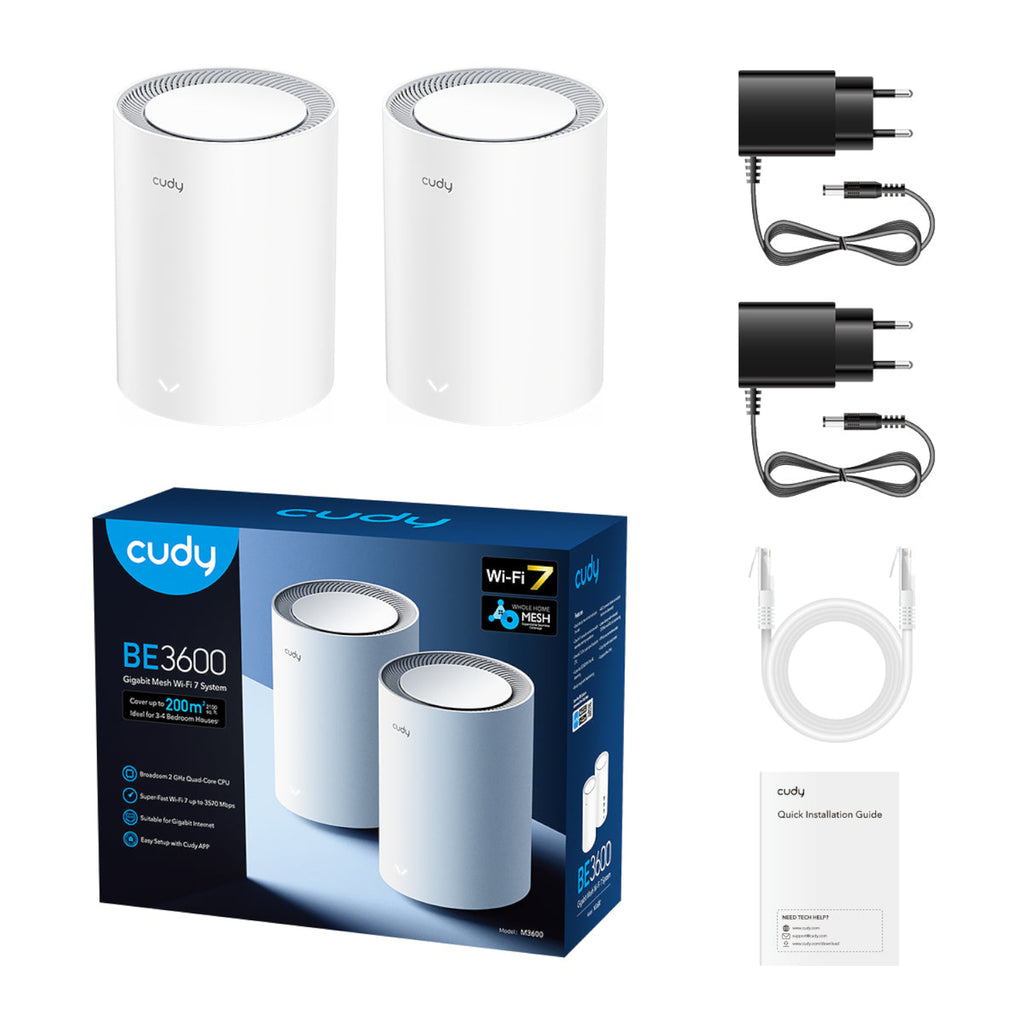

WHAT’S IN THE BOX:

• Cudy BE3600 Gigabit Mesh Wi-Fi 7 System – White x2
• Power Adapter x2
• Ethernet Cable x1
• Installation Guide x1
