DeepCool CG530U 4F ATX Gaming Chassis - Black

Quick Specs

• Accommodate your most demanding components with a spacious ATX form factor.
• Stay cool under pressure with versatile cooling options supporting up to nine 120mm fans.
• Connect your peripherals with ease using front panel I/O, including USB 3.0 and USB Gen2 Type-C.
• Showcase your build with a tempered glass side panel for a clear view of your hardware.
• Enjoy effortless installation and maintenance with generous space for cable management.

Seamless connectivity and component compatibility

The DeepCool CG530U prioritises user experience with its front panel I/O, offering a practical combination of modern and legacy ports. Included are two USB 3.0 ports for fast data transfer, a high-speed USB Gen2 Type-C port for the latest peripherals and devices, and a standard audio/mic combo jack. The chassis also features an LED control button for managing integrated lighting. With seven expansion slots, support for GPUs up to 410mm in length, and a CPU cooler height limit of 160mm, it accommodates a wide range of high-performance components. Furthermore, it supports ATX, SFX and SFX-L power supplies, ensuring compatibility with most build configurations.

FEATURES:

• Achieve superior cooling performance with flexible fan mounting options supporting up to nine 120mm or five 140mm fans for optimal airflow.
• Install large graphics cards with ease, thanks to a generous 410mm GPU length clearance, perfect for high-end gaming setups.
• Connect the latest devices quickly and conveniently with the inclusion of USB 3.0 and USB Gen2 Type-C ports on the front I/O.
• Maintain a clean and organised build with ample space for cable management and tool-free drive bays, simplifying assembly.
• Display your custom build proudly through the wide, clear tempered glass side panel, showcasing your internal components.

SPECIFICATIONS:

• Materials ABS + SGCC + Tempered Glass
• Motherboard Support
  • ITX/Micro-ATX/ATX
  • ATX(Rear Connector)
  • Micro-ATX(Rear Connector)
• Front I/O Ports: USB3.0 x2, Gen2 Type-C x1, Audio/Mic x1, LED
• 3.5″ Drive Bays: 2
• 2.5″ Drive Bays: 2+1
• Expansion Slots: 7 Slots
• Pre-Installed Fans:
  • Side: 3×120mm
  • Rear: 1×120mm
• Fan Support:
  • Front: NA
  • Top: 3×120mm/2x140mm
  • Side: 3x120mm/2x140mm
  • Rear: 1×120mm
  • Bottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm
• Radiator Support
  • Front: NA
  • Top: 120/140/240/280/360mm
  • Side: 120/140/240/280mm
  • Bottom: 120/240/360mm
• CPU Cooler Height Limit: 160mm
• GPU Length Limit: 410mm
• Power Supply Type: ATX PS2 (maximum length: 210mm)/SFX/SFX-L
• Colour: Black
• Product Dimensions: 47.5 x 28.5 x 38 cm
• Product Weight: 7300g

WHAT'S IN THE BOX:

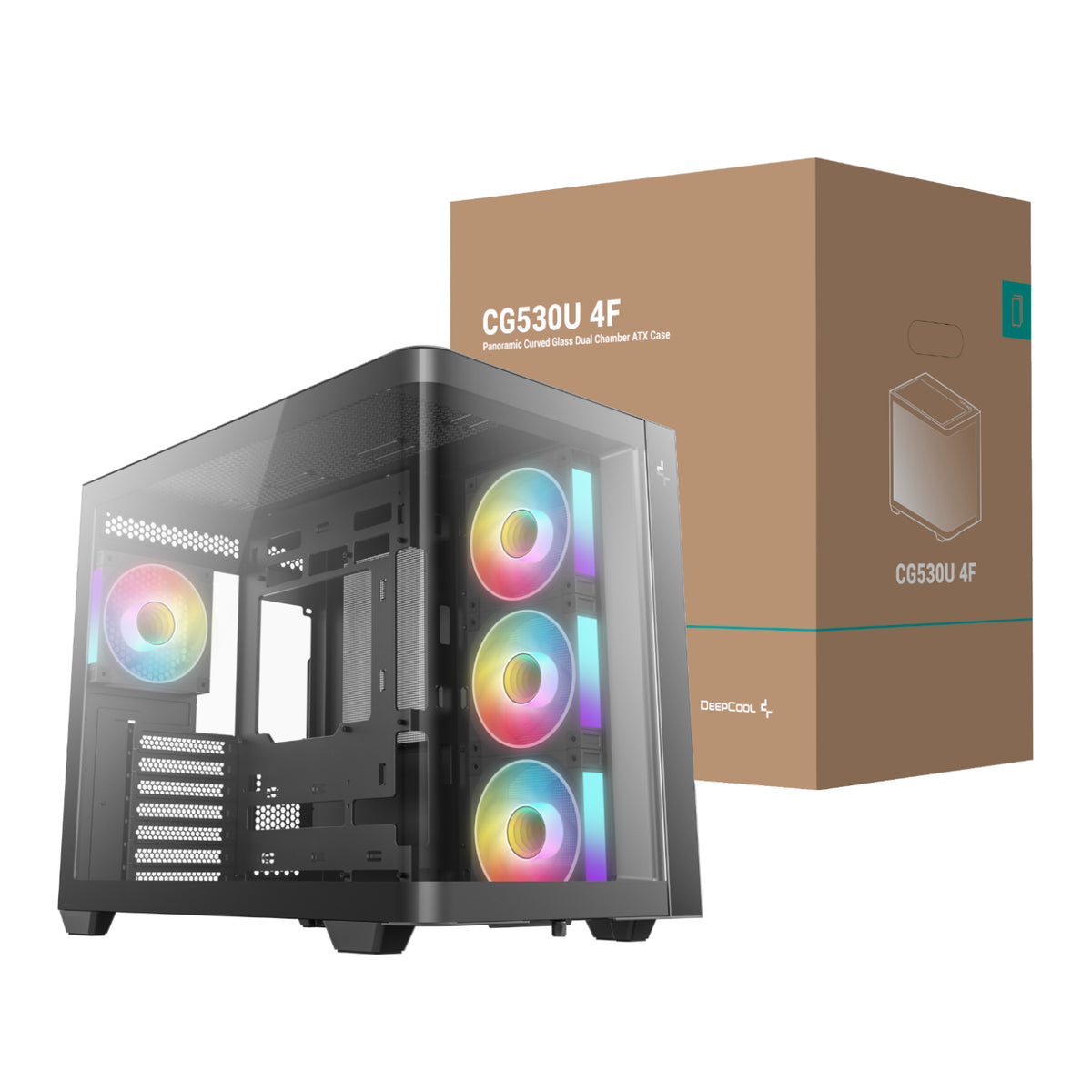

• DeepCool CG530U 4F ATX Gaming Chassis - Black x1
