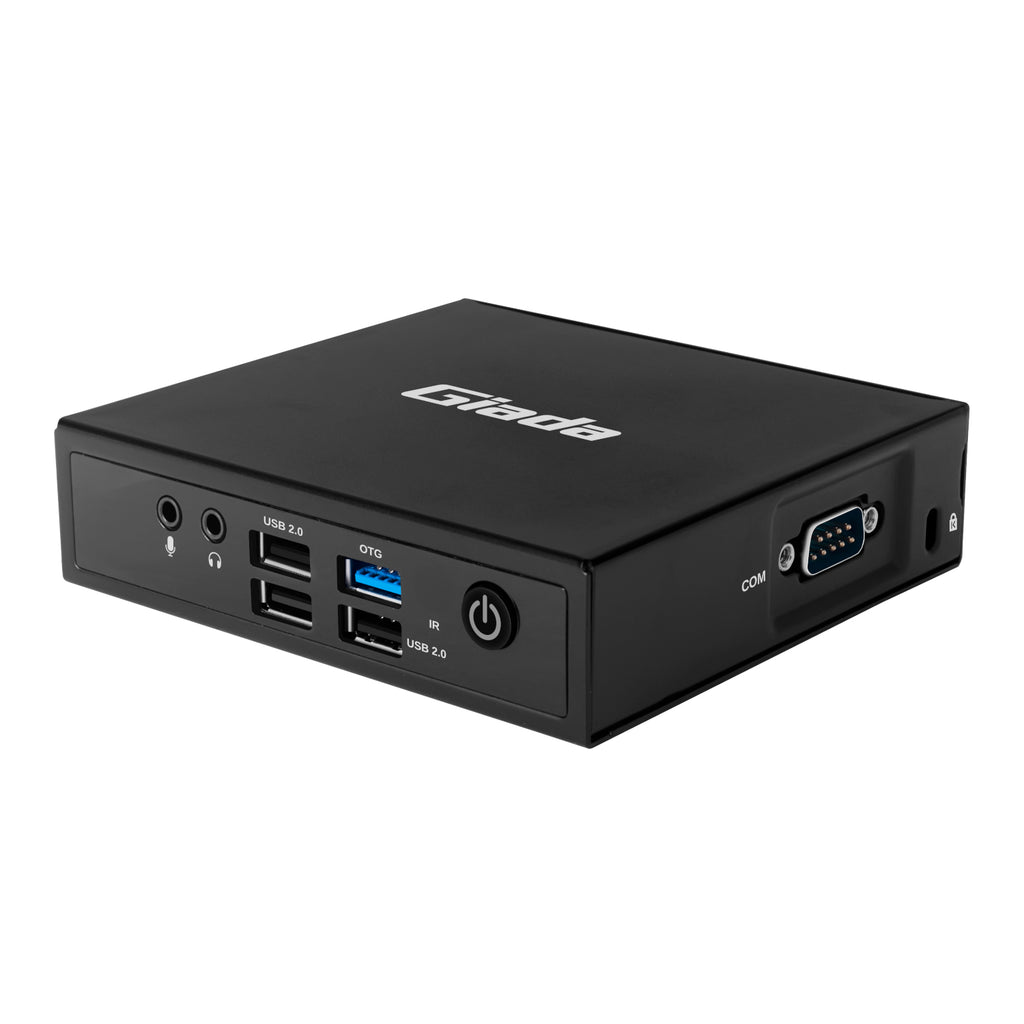

Giada DN83 Rockchip RK3528A LPDDR4 Fanless Arm Player

Quick Specs

• Reliable processing with a quad-core Rockchip RK3528A CPU.
• Cool, quiet operation thanks to a fanless design.
• Effortless connectivity with onboard Wi-Fi and Ethernet.
• Sharp visuals with support for 4K resolution at 60Hz.
• Compact form factor, ideal for space-constrained installations.

FEATURES:

• Run your applications smoothly with the efficient quad-core Cortex-A53 processor, perfect for an ARM based media player.
• Experience silent operation and enhanced durability with the fanless design, ideal for a fanless mini pc.
• Stream content and manage updates effortlessly with integrated Wi-Fi and Ethernet.
• Display your content in stunning detail with 4K resolution support at 60Hz, a key feature for any fanless industrial mini pc.
• Benefit from reliable power management with auto power-on functionality.
• Keep your system on schedule with the integrated Real-Time Clock (RTC) for daily or weekly cycles.
• Connect peripherals and audio devices with versatile MIC-IN, AUDIO-OUT, and RS232 ports.

SPECIFICATIONS:

• CPU: Rockchip RK3528A processor
• Processing Units: 4 Cores Cortex-A53
• TDP: 6 W
• System Memory: 2 GB, Onboard LPDDR4/LPDDR4x, 2 Channels
• Storage:
  • 32 GB, Onboard eMMC (Optional: 64 GB)
  • 1 x TF Card Reader
• Watchdog Timer: NA
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Remo on: NA
• Network Controller: 1 x Realtek RTL8211E PHY
• Ethernet Interface: 1 x RJ45
• Wi-Fi/BT: Onboard Wi-Fi/BT module
• Mobile Network:
  • 1 x B-key M.2 (3042) for 3G/4G
  • 1 x SIM Slot
• GPU: Mali-450MP2
• Graphic Engine: OpenGL ES1.1/2.0
• Multi-Media:
  • 4K VP9 decoders
  • 4K 10bits H.265 decoders
  • 1080P VC-1, MPEG-1/2/4, VP8 video decoders
  • Support HDR10 ,HLG HDR
• Display Interface: 1 x HDMI (Max.3840 x 2160 @60 Hz)
• USB:
  • 1 x USB3.2 Gen1,
  • 1 x USB2.0 OTG, 2 x USB2.0

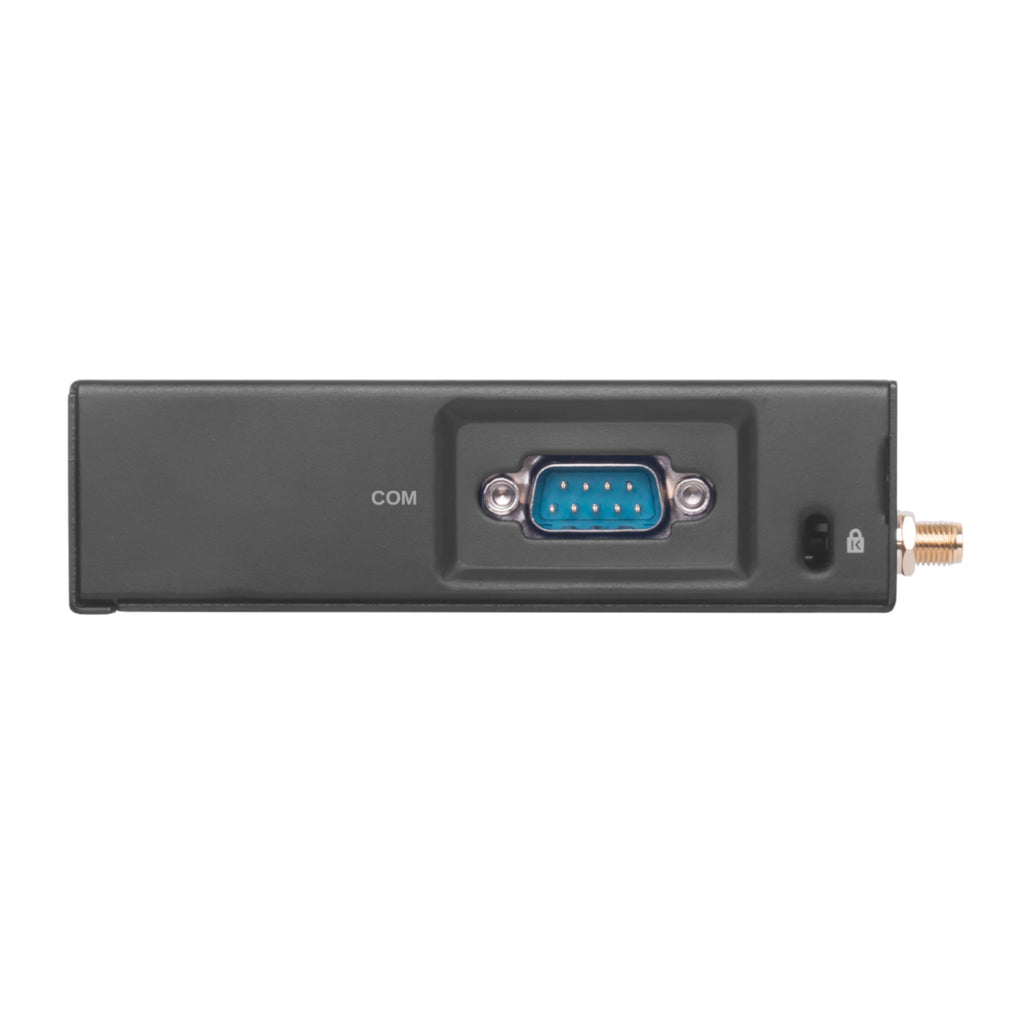

• Serial Port: 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x Recovery
• Antenna:
  • 1 x Connector for Wi-Fi/BT
  • 1 x Connector for 3G/4G (Reserved)
• Power Requirement: DC-IN, 12 V/2.08 A
• Construction Metal, Black
• Operating System
• Operating Temperature 0°C ~45°C (32°F~114°F) @0.7m/s Air Flow
• Android 13/Debian 11
• Certifications CE, FCC Class B, UKCA
• Humidity 95% @ 45°C (non-condensing)
• Product Dimensions: 11.6 x 10.6 x 3 cm

WHAT'S IN THE BOX:

• Giada DN83 Rockchip RK3528A LPDDR4 Fanless Arm Player - Black x1
• Wi-Fi Antenna x1
• AC Power Cable x1
• AC Power Adapter x1
