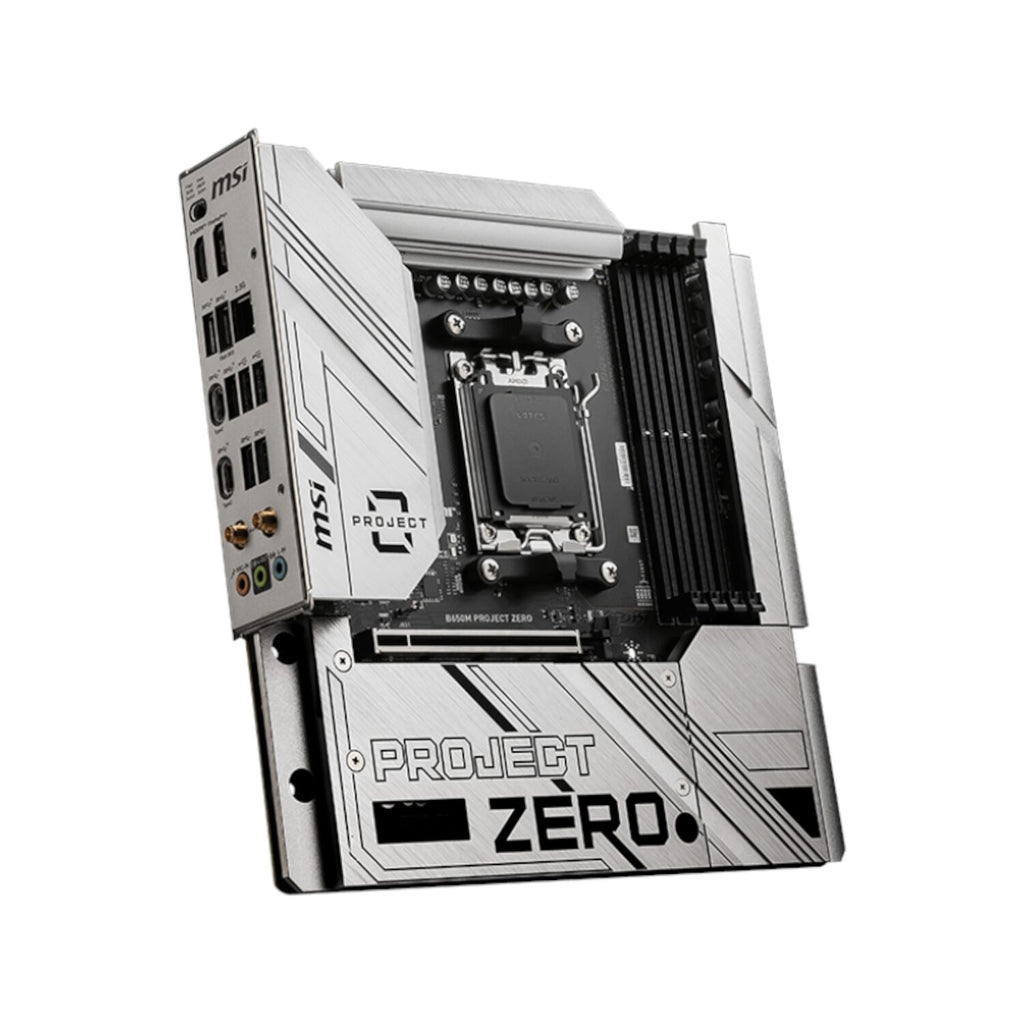

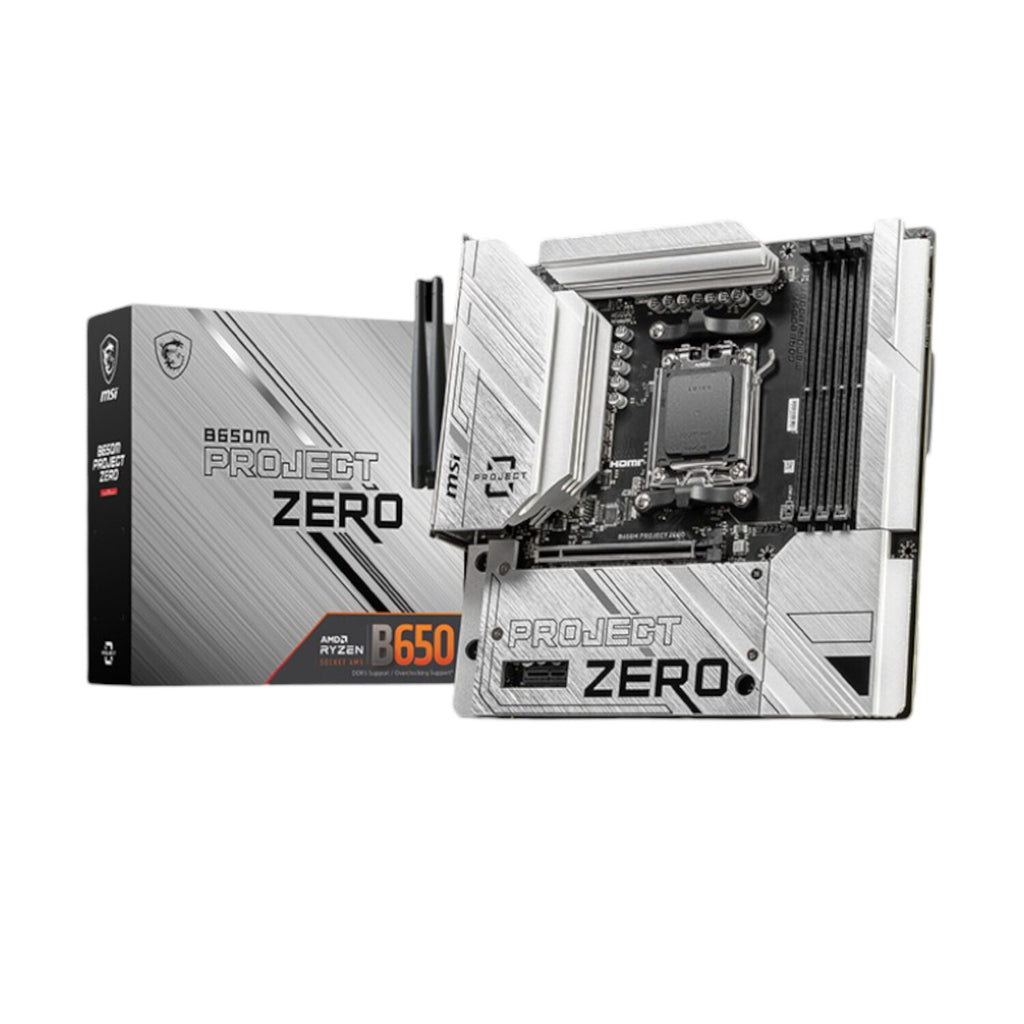

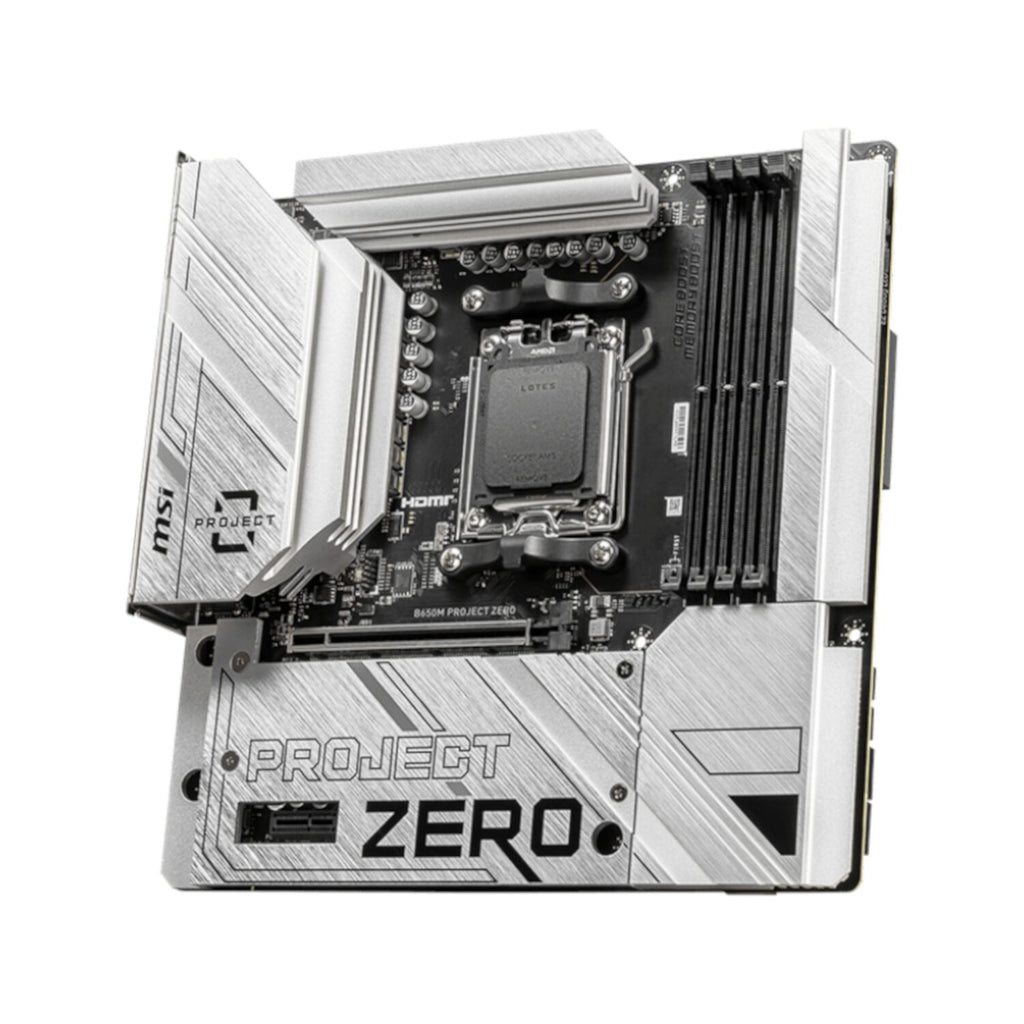

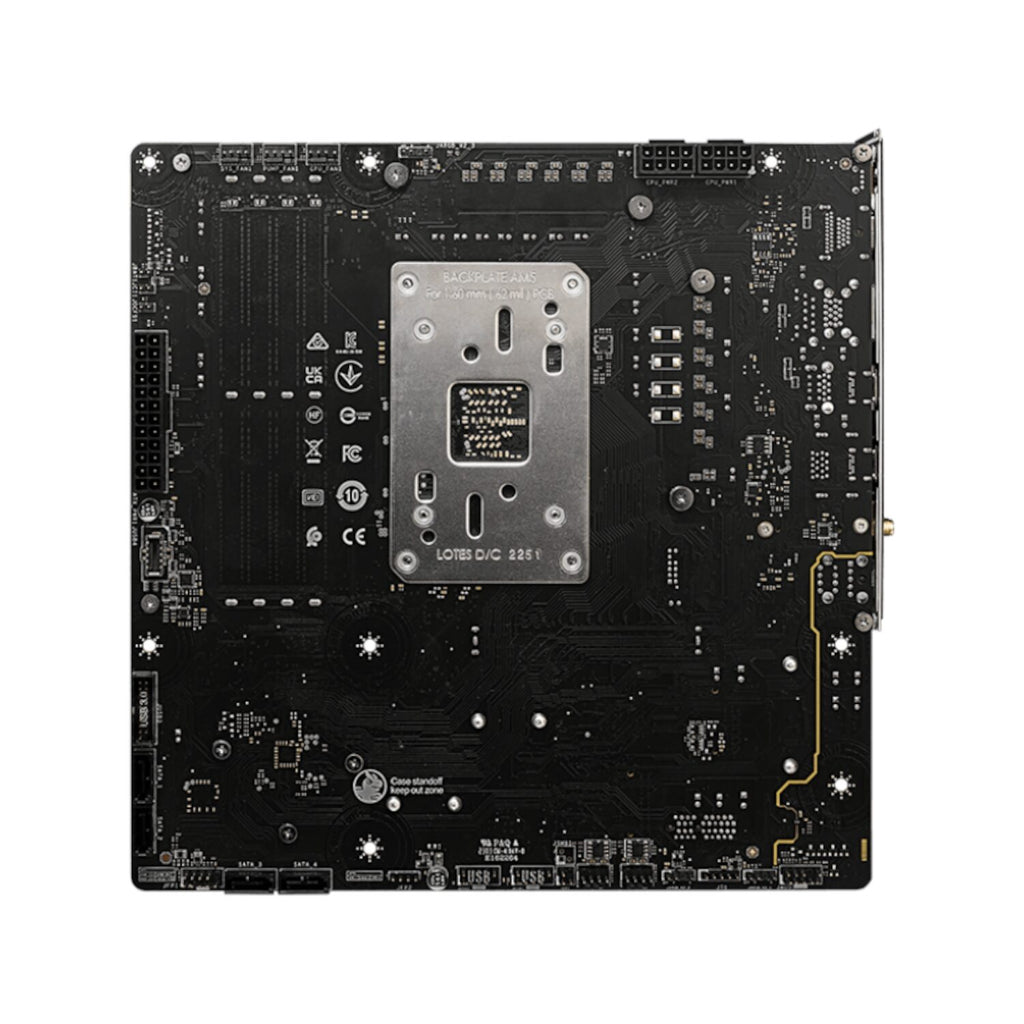

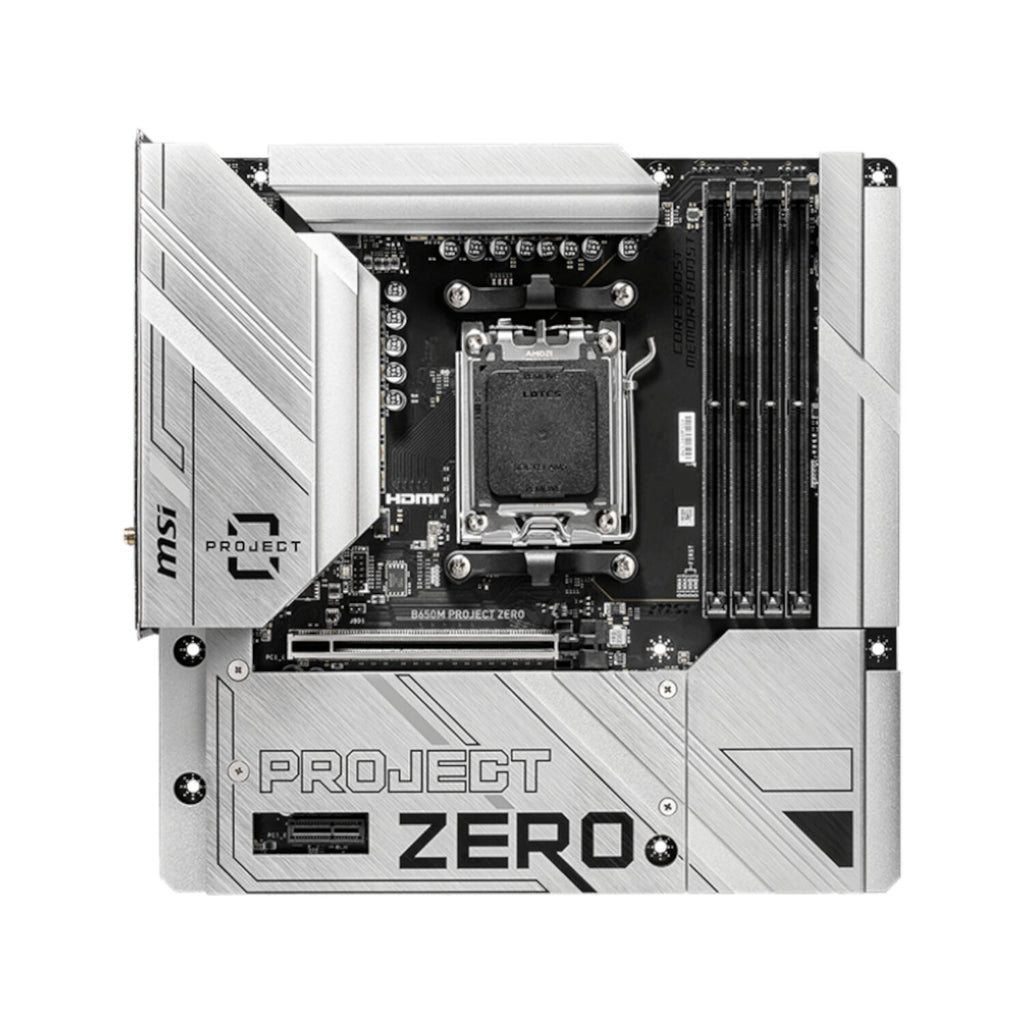

The MSI B650M PROJECT ZERO motherboard redefines modern PC building with a unique combination of form, function, and cutting-edge technology. Tailored for gamers, content creators, and tech enthusiasts, this micro-ATX motherboard supports AMD Ryzen™ 7000 series processors, providing an efficient and high-performance platform for your next-generation build. The standout feature of the MSI B650M PROJECT ZERO is the 'Back Connect Design,' which relocates essential connectors and headers to the motherboard's rear, improving airflow and ensuring a clean and efficient front-facing build.
Built with robust thermal management in mind, it features an extended heatsink for better heat dissipation, while the M.2 Shield Frozr helps prevent SSD thermal throttling. Whether you're into competitive gaming or resource-intensive tasks, this motherboard supports high-speed networking via Wi-Fi 6E and a 2.5Gbps LAN port, ensuring uninterrupted online experiences. Additionally, the motherboard offers a vast array of USB ports, including high-speed USB 3.2 and Type-C, perfect for transferring large files swiftly.
- Maximum Memory Capacity 256GB
- Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Maximum overclocking frequency:
- 1DPC 1R Max speed up to 7600+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5400+ MHz
- 1x HDMI™
- Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. - 1x PCI-E x16 slot
- Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
- 7.1-Channel High Definition Audio
- Supports up to 32-Bit/384 kHz playback on the front panel
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
- The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function. - 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 3x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Rear)
- AMD Wi-Fi 6E (The Wireless module is pre-installed in the M.2 (Key-E) slot)
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. - 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 3x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x TPM pin header(Support TPM 2.0)

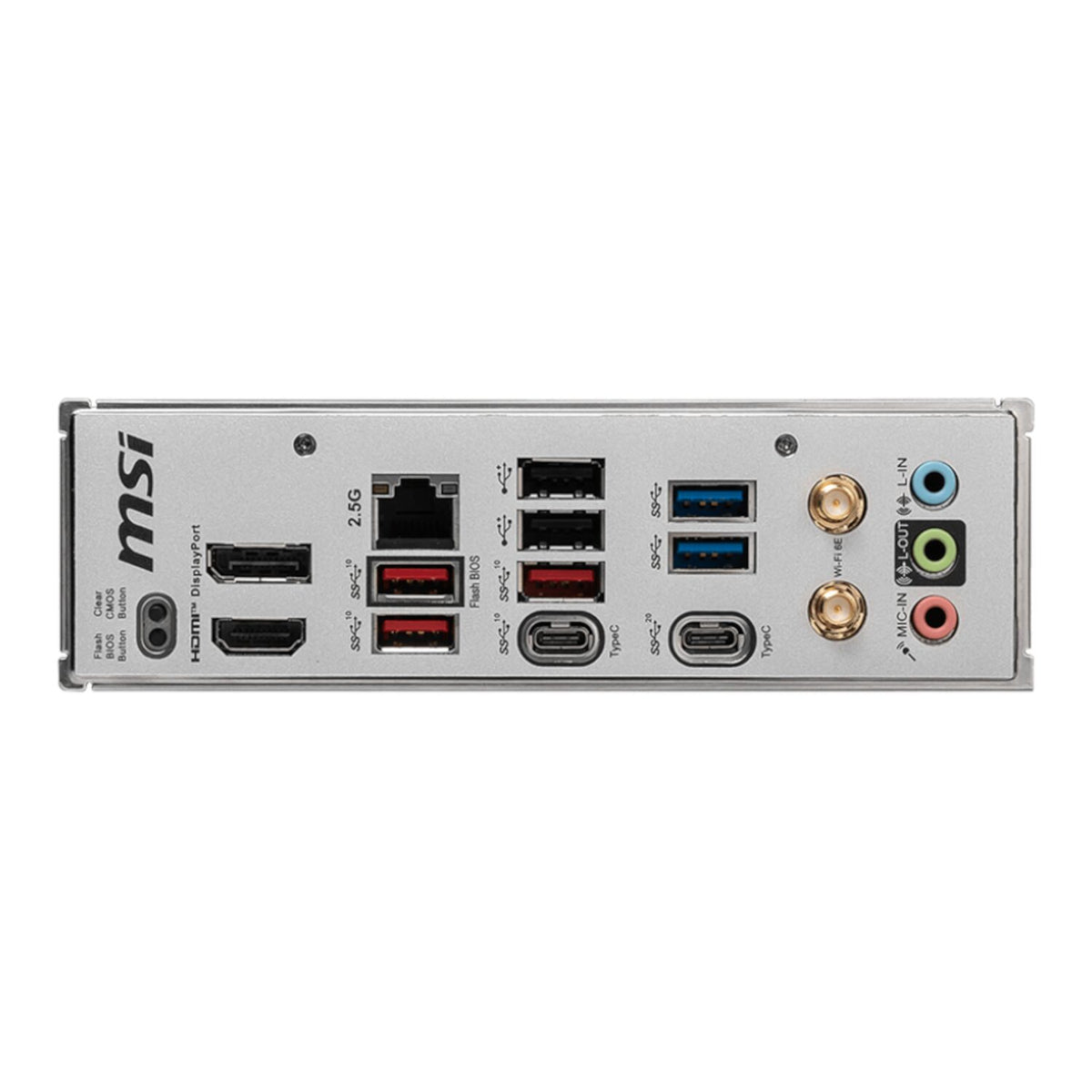

- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C port
- Display Port
- 2.5G LAN
- USB 2.0
- USB 5Gbps (Type-A)
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- Clear CMOS Button
- HDMI™
- USB 10Gbps (Type-A)
- USB 10Gbps (Type-C)
- USB 20Gbps (Type-C)
